✔ Architecture: CDNA2
✔ Stream Processors: 6,656
✔ Compute Units: 104
✔ Peak Engine Clock: 1700 MHz
✔ Peak Half Precision (FP16): 181 TFLOPs
✔ Peak Single Precision Matrix (FP32) Performance: 45.3 TFLOPs
✔ Peak Double Precision Matrix (FP64) Performance: 45.3 TFLOPs
✔ Peak Single Precision (FP32) Performance: 22.6 TFLOPs
✔ Peak Double Precision (FP64) Performance: 22.6 TFLOPs
✔ Peak INT4 Performance: 181 TOPs
✔ Peak INT8 Performance: 181 TOPs
✔ Peak bfloat16: 181 TFLOPs
✔ Warranty: 2 years manufacturer repair or replace
Ships in 10 days from payment. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

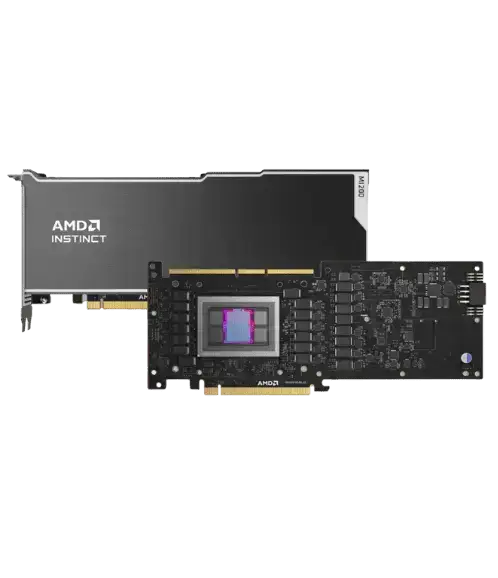

The AMD Instinct™ MI210, part of the Instinct MI200 Series, represents a significant leap forward in server GPU technology. Launched on 3/22/22, this powerhouse is designed for server applications. Boasting the CDNA2 architecture, it features impressive GPU specifications including 6,656 stream processors and 104 compute units, with a peak engine clock of 1700 MHz. Offering exceptional performance, it delivers 181 TFLOPs of peak half precision (FP16) performance, 45.3 TFLOPs of peak single precision matrix (FP32) performance, and 22.6 TFLOPs of both peak double precision matrix (FP64) and single precision (FP32) performance. With 64 GB of dedicated HBM2e memory, a 4096-bit memory interface, and a peak memory bandwidth of 1.6 TB/s, it ensures high-speed data processing. The GPU is designed in a PCIe® add-in card form factor with a PCIe® 4.0 x16 bus type, offering 3 Infinity Fabric™ links with a peak bandwidth of 100 GB/s. Cooling is achieved passively, and the dimensions of the board include a full height, a length of 10.5 inches (267mm), and a double slot width. Additionally, it supports advanced technologies such as AMD CDNA™ 2 Architecture, AMD Infinity Architecture, and AMD ROCm™, with robust reliability features including RAS support and page retirement.
| Product Basics | Specification |
|---|---|
| Name | AMD Instinct™ MI210 |
| Family | Instinct |
| Series | Instinct MI200 Series |
| Form Factor | Servers |
| Launch Date | 3/22/22 |
| GPU Specifications | |
| GPU Architecture | CDNA2 |
| Stream Processors | 6,656 |
| Compute Units | 104 |
| Peak Engine Clock | 1700 MHz |
| Peak Half Precision (FP16) | 181 TFLOPs |
| Peak Single Precision Matrix (FP32) Performance | 45.3 TFLOPs |
| Peak Double Precision Matrix (FP64) Performance | 45.3 TFLOPs |
| Peak Single Precision (FP32) Performance | 22.6 TFLOPs |
| Peak Double Precision (FP64) Performance | 22.6 TFLOPs |
| Peak INT4 Performance | 181 TOPs |
| Peak INT8 Performance | 181 TOPs |
| Peak bfloat16 | 181 TFLOPs |
| GPU Memory | |
| Dedicated Memory Size | 64 GB |
| Dedicated Memory Type | HBM2e |
| Memory Interface | 4096-bit |
| Memory Clock | 1.6 GHz |
| Peak Memory Bandwidth | 1.6 TB/s |
| Memory ECC Support | Yes (Full-Chip) |
| Board Specifications | |
| GPU Form Factor | PCIe® Add-in Card |
| Bus Type | PCIe® 4.0 x16 |
| Infinity Fabric™ Links | 3 |
| Peak Infinity Fabric™ Link Bandwidth | 100 GB/s |
| Cooling | Passive |
| Dimensions | |
| Board Height | Full Height |
| Board Length | 10.5″ (267mm) |
| Board Width | Double Slot |
| Additional Features | |
| Supported Technologies | AMD CDNA™ 2 Architecture, AMD Infinity Architecture, AMD ROCm™ – Ecosystem without Borders |
| RAS Support | Yes |
| Page Retirement | Yes |
