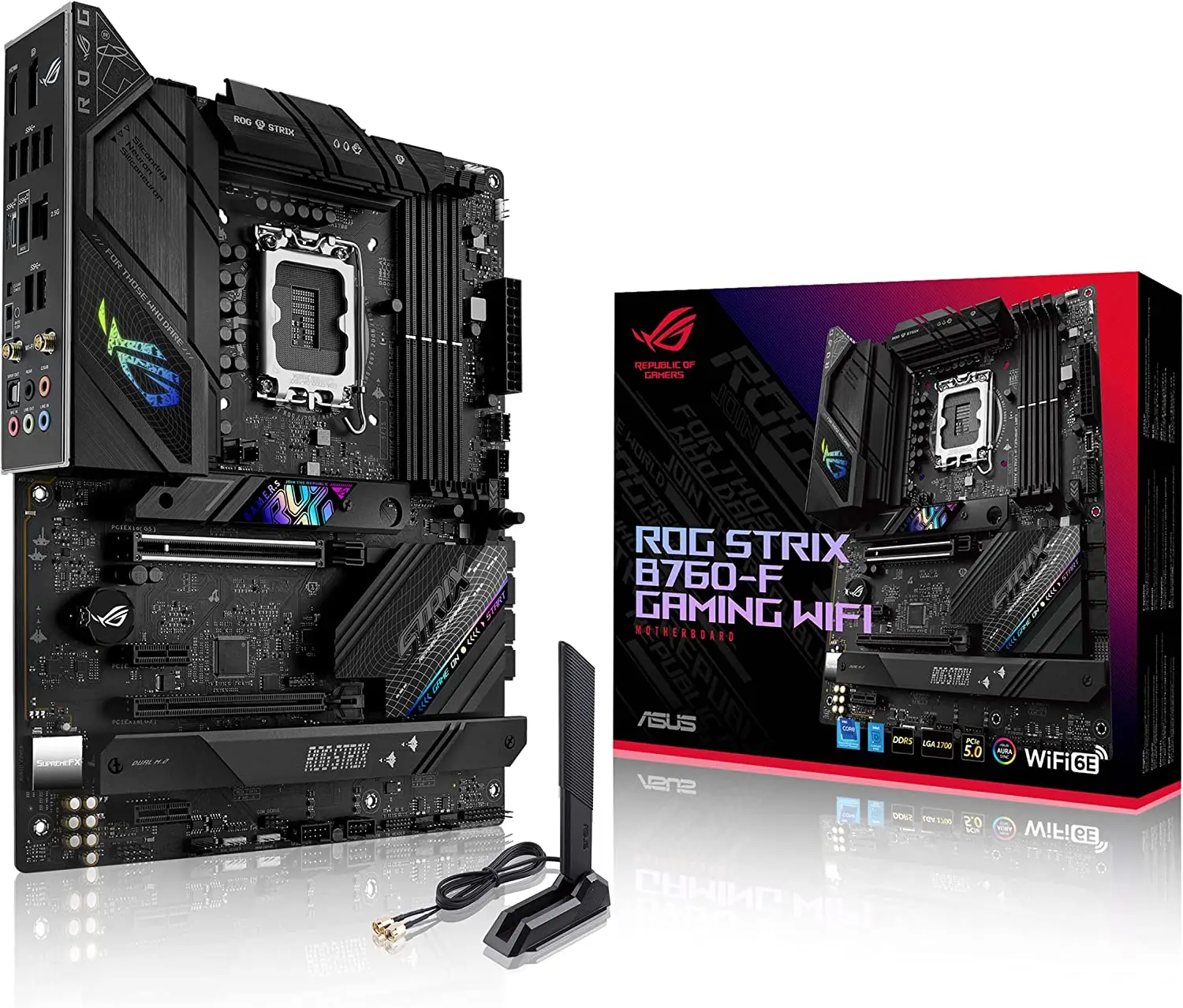

✓ Form Factor: ATX
✓ CPU Socket: Intel LGA 1700
✓ Chipset: Intel B760
✓ Maximum Supported Memory: 128 GB
✓ DIMM Slots: 4
✓ Memory Type: DDR5
✓ Maximum Memory Speed: 7800 MHz
✓ SATA Connectors: 4
✓ M.2 Slots: 3
✓ PCI Express x16 Slots: 2
✓ Onboard Video Output: DisplayPort, HDMI
✓ Rear USB Ports: 8
✓ Ethernet Jacks: 1
The ROG STRIX B760 series boasts impressive processing capabilities with the Intel LGA 1700 socket compatible with Pentium processors. These motherboards are designed to deliver high-speed performance with DDR5 memory in the B760-F and B760-G models and DDR4 memory in the B760-A and B760-A D4 models. The maximum supported memory ranges up to 192GB for B760-G, providing ample space for multitasking and complex computing tasks. Furthermore, these motherboards provide fast memory speed, reaching up to 7800 MHz in the B760-F model, and 2133 MHz for the D4 variants. The CPU power delivery on the B760-A model features a 13-phase system, promising efficient power management and sustained high performance.
| Specification | ROG STRIX B760-F | ROG STRIX B760-A | ROG STRIX B760-A D4 | ROG STRIX B760-G | ROG STRIX B760-G D4 | ROG STRIX B760-I |
|---|---|---|---|---|---|---|
| Form Factor | ATX | ATX (305 × 244 mm) | N/A | MICRO-ATX | N/A | MINI-ITX |

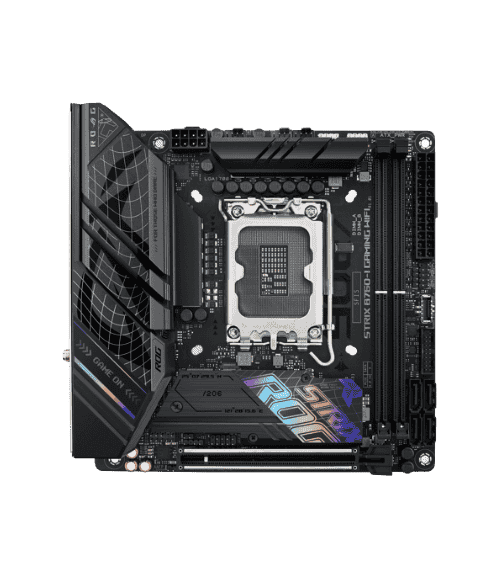

| CPU Socket | Intel LGA 1700 | Intel LGA 1700 | Pentium | Intel® Socket LGA1700 for 13th Gen Intel® | Pentium | LGA1700 for 13th Gen Intel Core Processors & 12th Gen Intel |
| Chipset | Intel B760 | Intel B760 | N/A | Intel® B760 Chipset | N/A | Intel® B760 Chipset |
| Maximum Supported Memory | 128 GB | N/A | N/A | Max. 192GB, DDR5 | N/A | Max. 64GB |
| Memory Type | DDR5 | DDR4 (5333 MHz) | DDR4 | DDR5 | DDR4 | N/A |
| Memory Speed | 7800 MHz | N/A | 2133 MHz | N/A | 2133 MHz | N/A |
| M.2 Slots | 3 | 2× M.2 PCIe 4.0 (42–80 mm) + 1× PCIe 4.0 ×4 (42–110 mm) | N/A | 2 x M.2 slots | N/A | 2 x M.2 slots |
| PCI Express x16 Slots | 2 | 2× | N/A | 1 x PCIe 5.0 x16 slot | N/A | N/A |
| Onboard Video Out for IGP (Rear Panel) | DisplayPort, HDMI | 1× HDMI 2.1, 1× DisplayPort 1.4 | N/A | 1 x DisplayPort, 1 x HDMI | N/A | 1 x DisplayPort, 1 x HDMI |
| Onboard Wireless | 802.11ax | WiFi 6E (802.11 a/b/g/n/ac/ax), Bluetooth 5.3 | 802.11a/b/g/n/ac, 802.11ax | Wi-Fi 6E, Bluetooth® v5.3 | 802.11a/b/g/n/ac, 802.11ax | Wi-Fi 6E, Bluetooth® v5.3 |
| Onboard Audio Chipset | Realtek ALC4080 + Savitech SV3H712 AMP | Realtek ALC4080 (7.1) | N/A | N/A | N/A | N/A |
| Brand | N/A | N/A | ASUS | INTEL | ASUS | ASUS |
| Weight | N/A | N/A | 4.56 pounds | 1.780000 | 4.56 pounds | 2.560000 |
