✓ Manufacturer: Bitmain

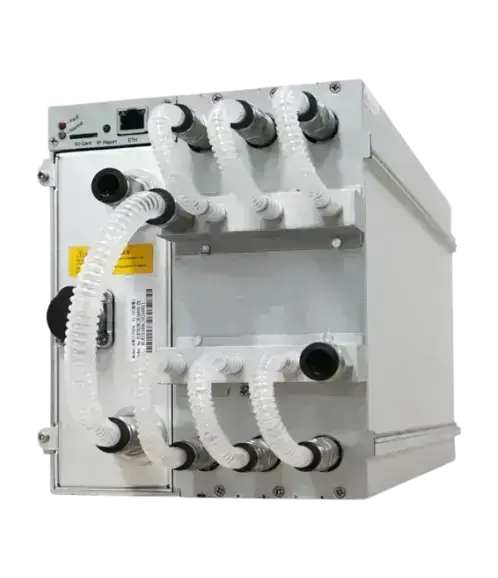

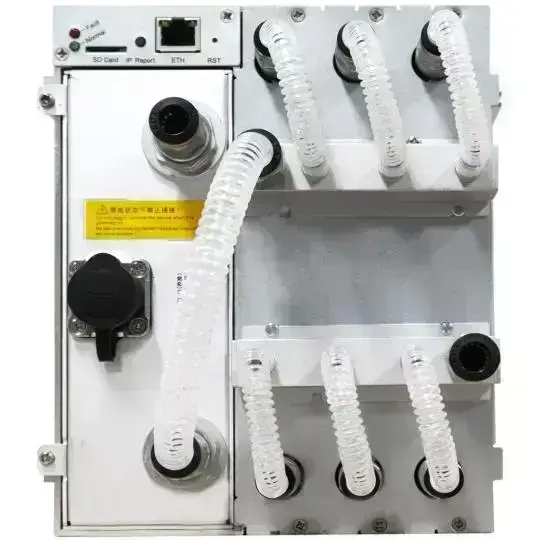

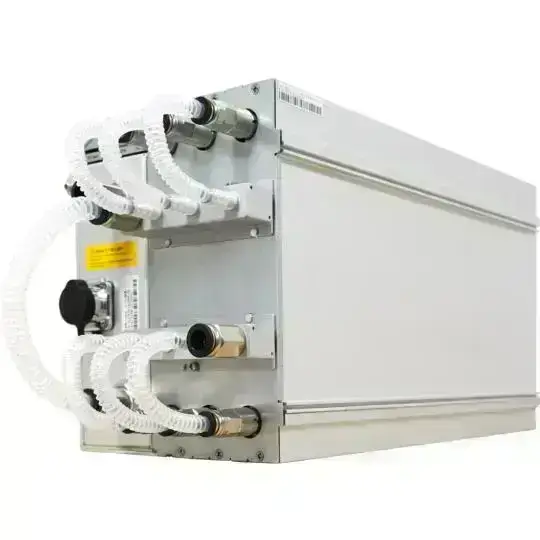

✓ Model: Antminer S21 XP+ Hyd (500Th)
✓ Release: July 2025
✓ Size: 410 x 170 x 209mm
✓ Noise level: 50 dB
✓ Cooling: Hydro-cooling
✓ Power: 5550W +/- 10%
✓ Interface: Ethernet
✓ Temperature: 5 – 45 °C
✓ Humidity: 5 – 95 %
✓ Input Voltage: 315-380v 3 Phase only
✓ Power Cord: Not included
✓ Warranty: 1 year manufacturer parts or repair
✓ Please Note: Requires 3-phase input power and 12kw standalone cooling kit for single operation found here. For multiple units, consider an Anttrack V1 cabinet (4 per cabinet) or off-brand cabinet solution found here. For container solution, the Bitmain HW5, Foghashing H200-S and Bitmain HK3 V6 are options.
✓ Temperature: 5 – 45 °C
✓ Humidity: 5 – 95 %
✓ Input Voltage: 315-380v 3 Phase only
✓ Power Cord: Not included
✓ Warranty: 1 year manufacturer parts or repair
✓ Please Note: Requires 3-phase input power and 12kw standalone cooling kit for single operation found here. For multiple units, consider an Anttrack V1 cabinet (4 per cabinet) or off-brand cabinet solution found here. For container solution, the Bitmain HW5, Foghashing H200-S and Bitmain HK3 V6 are options.
| Product Glance | Value |
| Model | S21 XP+ Hyd. |
| Crypto algorithm/coins | SHA256|BTC/BCH/BSV |
| Typical hashrate, TH/s(2-1) | 500 |
| Power on wall @35℃(2-2), Watt(2-1) | 5500 |
| Power efficiency on wall@35℃(2-2), J/T(2-1) | 11 |
| Detailed Characteristics | Value |
| Power Supply | |
| Phase | 3 |
| Input voltage, Volt(3-1) | 380~415 |
| Input frequency range, Hz | 50~60 |
| Input max current, Amp | 12 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Server size (length*width*height, w/o package), mm | 339*173*207 |
| Server size (length*width*height, with package), mm | 570*316*430 |
| Net weight, kg | 14.8 |
| Gross weight, kg | 16.7 |
| Environment Requirements | |
| Inlet coolant temperature, °C | 20~50 |
| Coolant flow, L/min | 8.0~10.0 |
| Coolant pressure, bar | ≤3.5 |
| Working coolant(3-2) | Antifreeze/Pure water/Deionized water |
| Coolant pH value | Antifreeze: 7.0~9.0 Pure water: 6.5~7.5 Deionized water：8.5~9.5 |
| Diameter of coolant pipe connector, mm | OD10 |
| Storage temperature, °C | -20~70 |
| Operation humidity(non-condensing), RH | 10~90% |
