Miners , Scaling Solution
Instock

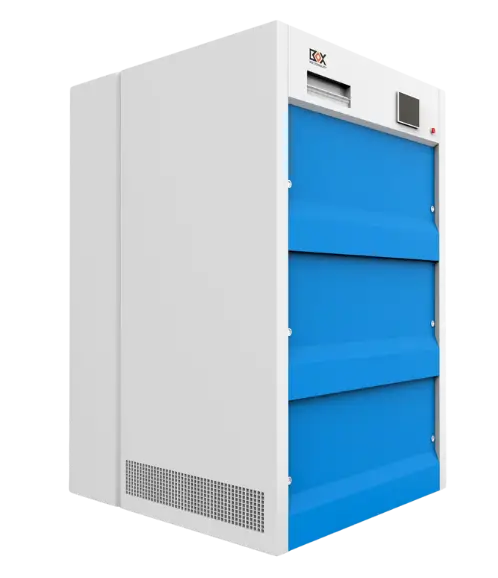

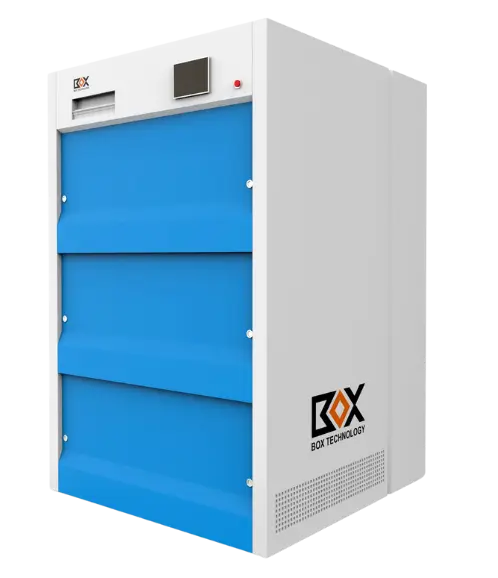

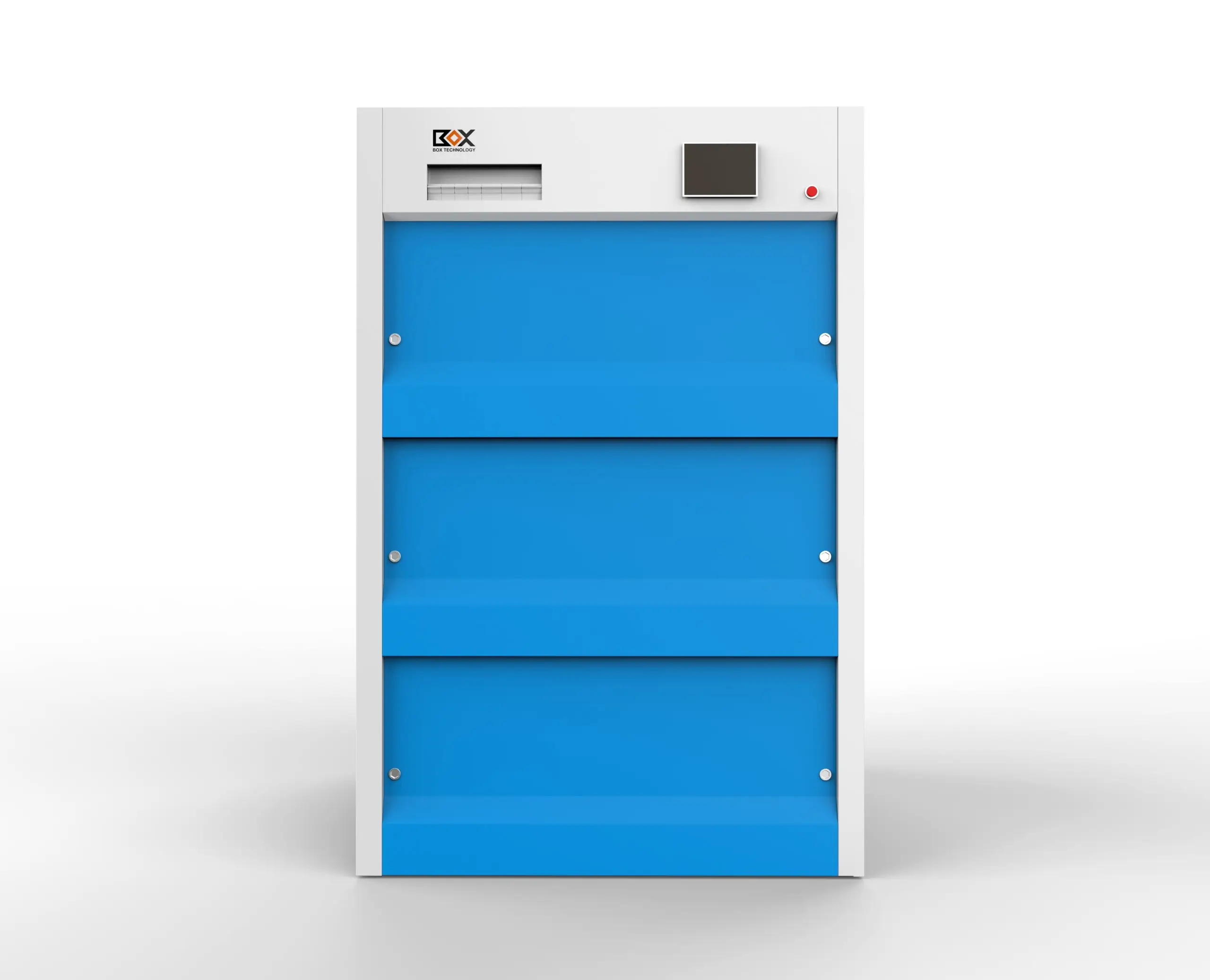

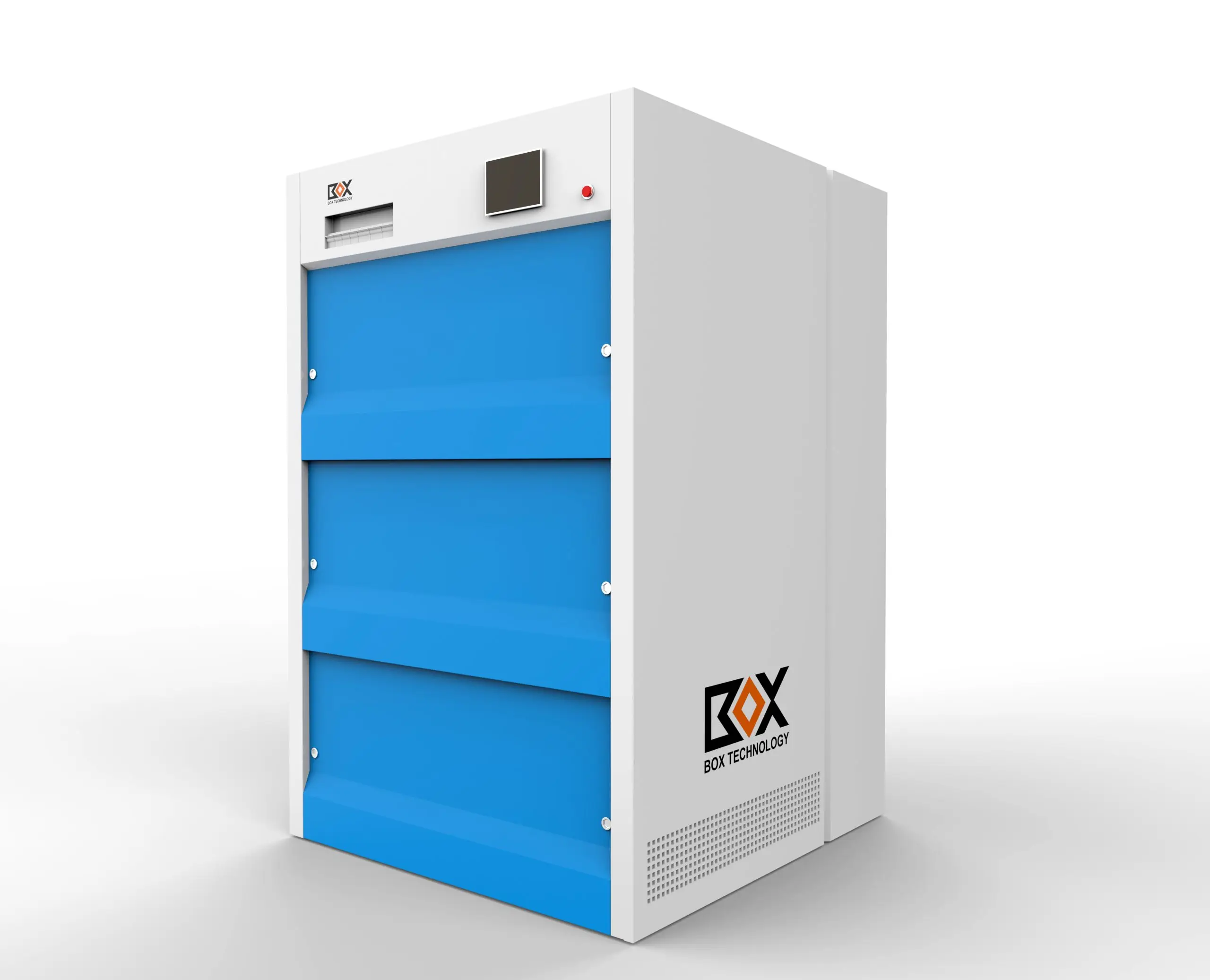

BOX 120KW 24-Unit Immersion Cooling Cabinet

0 out of 5 (0)

An immersion cooling rack is small in size, easy to install, and space-saving. Overall shape and size of the product (length × width × height): 1300mm × 1070mm × 2130mm

According to the number and power of servers, the vertically-assembled immersion cooling container can be reassembled vertically to use in larger places.

Secondary utilization of heat energy.

2 year manufacturer parts replacement warranty.

Can hold 24 S19-type format ASICs from various brands.

The 120KW immersion cooling container is composed of immersion cooling Freezer Body, Pipeline Canned Pump, Brazing Plate with Heat Exchanger and accessories.

$3,530 USD for 20 ton tower (40kw cabinet)
$5,915 USD for 60 ton tower (120kw cabinet)
$7,525 USD for 80 ton tower (200kw cabinet)


Get this product for
$7,905.00
vipera
Get it in 10 days
Estimate for 682345
vipera
Will be delivered to your location via DHL
Inquiry to Buy

Please note shipping DDP sea freight to the USA is about $2,527 USD and comes in a wooden crate. Air shipping is available for approximately $6,000 DDP. All sales final. No returns or cancellations. COOLANT NOT INCLUDED. Fan simulation spoofers for each fan input (4 per ASIC) are not included.



BE ADVISED THIS MODEL REQUIRES A DRY COOLING TOWER FOR FLUID EXCHANGE. If you do not wish to source them locally due to shipping costs and lead times, the options are listed below:

120KW Immersion Freezing

The 120KW coolant tank is made of 304 stainless steel, which is reliable and stable in welding and corrosion-resistant. The box body adopts splicing welding process to ensure reliable welding and no oil leakage.

It has low environmental requirements and is suitable for a wide range of scenarios, especially for scenarios with high requirements for noise and flexible deployment.

Product Advantage

The internal oil cooling circulation system of our immersion cooling products uses a piped shielded pump. This pump can more effectively isolate the water from the motor coil winding without mechanical seal, which ensures the normal operation of the motor. It has the characteristics of complete sealing, safety and reliability, compact structure occupying less space, stable operation, low noise, no need for lubricant, and wide application.

    SpecificationValue
    ProductSmartDeviceXL
    Capacity120 kW
    Order quantity1
    Dimensions1300 × 1070 × 2130 mm
    Net Weight425 kg
    ParametersTake S19 series as an example
    Major switch capacity189A
    Rated current167A
    Input voltage380V~415V AC 50/60HZ
    Operating power120 kW
    Coolant consumption540 L
