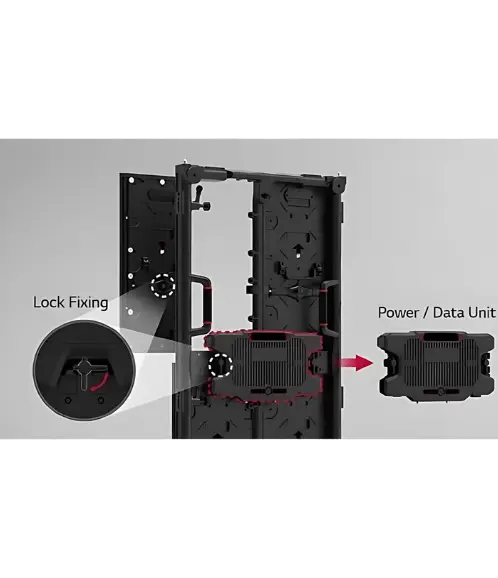

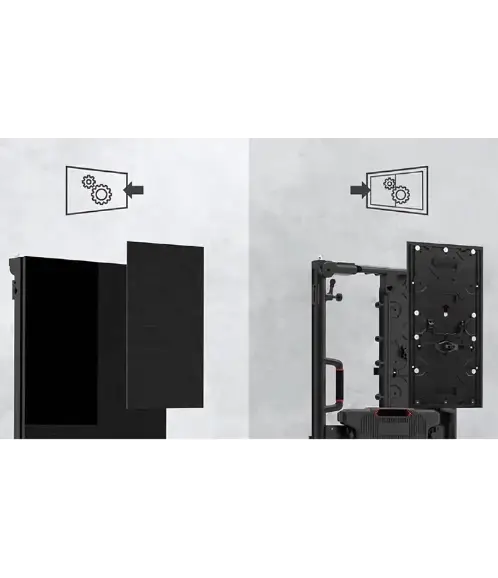

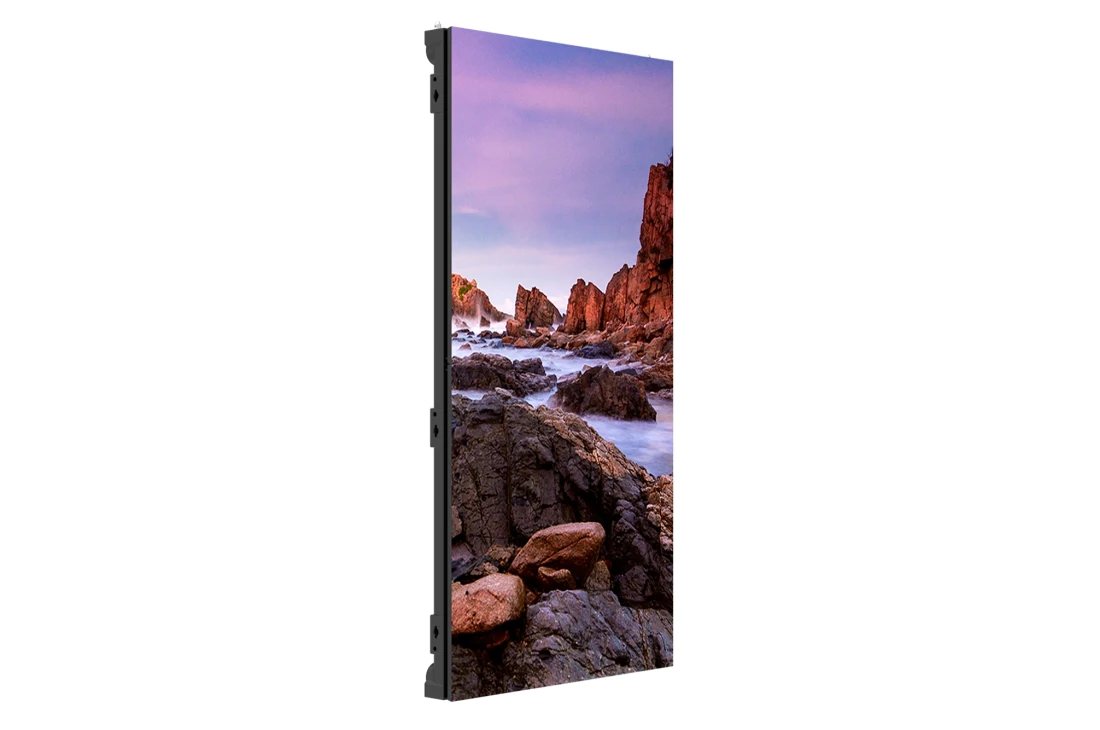

The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.
| Category | Specification | Details (Standard / Half-sized where applicable) |
|---|---|---|
| Physical Parameters | Pixel Configuration | 3 in 1 SMD |
| Pixel Pitch (mm) | 2.97 | |
| Module Resolution (W x H) | 84 × 168 | |
| Module Dimensions (W x H, mm) | 250 × 500 | |
| Weight per Module (kg) | 1.30 | |
| No. of Modules per Cabinet (W × H) | 2 × 2 / 2 × 1 | |
| Cabinet Resolution (W × H) | 168 × 336 / 168 × 168 | |

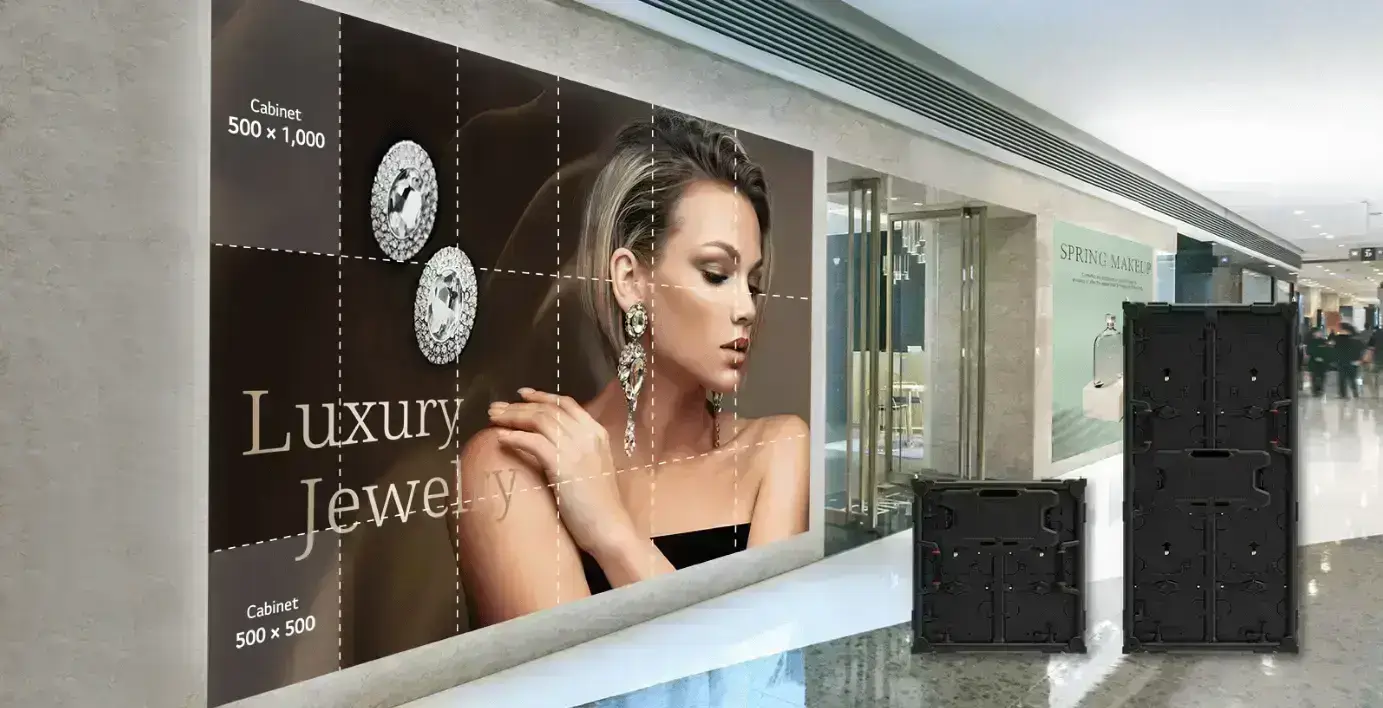

| Cabinet Dimensions (W × H × D, mm) | 500 × 1,000 × 66 / 500 × 500 × 66 | |
| Cabinet Surface Area (m²) | 0.500 / 0.250 | |
| Weight per Cabinet (kg) | 14.0 / 10.0 | |
| Weight per Square Meter (kg/m²) | 28.0 / 40.0 | |
| Physical Pixel Density (pixels/m²) | 112,896 | |
| Flatness of Cabinet (mm) | ± 0.3 | |
| Cabinet Material | Die-casting Aluminum | |
| Service Access | Front or Rear (One Option Only) | |
| Optical Parameters | Min. Brightness (After Calibration) | 1,000 nits |
| Color Temperature | 3,500 ~ 9,000 K | |
| Visual Viewing Angle (Horizontal) | 160° | |
| Visual Viewing Angle (Vertical) | 160° | |
| Brightness Uniformity | 97% | |
| Color Uniformity | ± 0.003 Cx, Cy | |
| Contrast Ratio | 5,000:1 | |
| Processing Depth (bit) | 14 | |
| Electrical Parameters | Power Consumption (W/cabinet, Max.) | 270 / 135 |
| Power Consumption (W/cabinet, Avg.) | 90 / 45 | |
| Power Consumption (W/m², Max.) | 540 | |
| Power Consumption (BTU/h/cabinet, Max.) | 921 / 461 | |
| Power Consumption (BTU/h/cabinet, Avg.) | 307 / 154 | |
| Power Consumption (BTU/h/m², Max.) | 1,842 | |
| Power Supply (V) | 100 to 240 | |
| Frame Rate (Hz) | 50 / 60 | |
| Refresh Rate (Hz) | 2,880 | |
| Operation Conditions | Lifetime (Hours to Half Brightness) | 100,000 hours |
| Operating Temperature (°C) | -10 °C to +45 °C | |
| Operating Humidity | 0 – 80 % RH | |
| IP Rating Front / Rear | IP30 / IP30 | |
| Certification | Certification | CE, FCC, ETL |
| Environment | Environment | RoHS |
| Controller | Controller | CVCA, LCIN006 |
