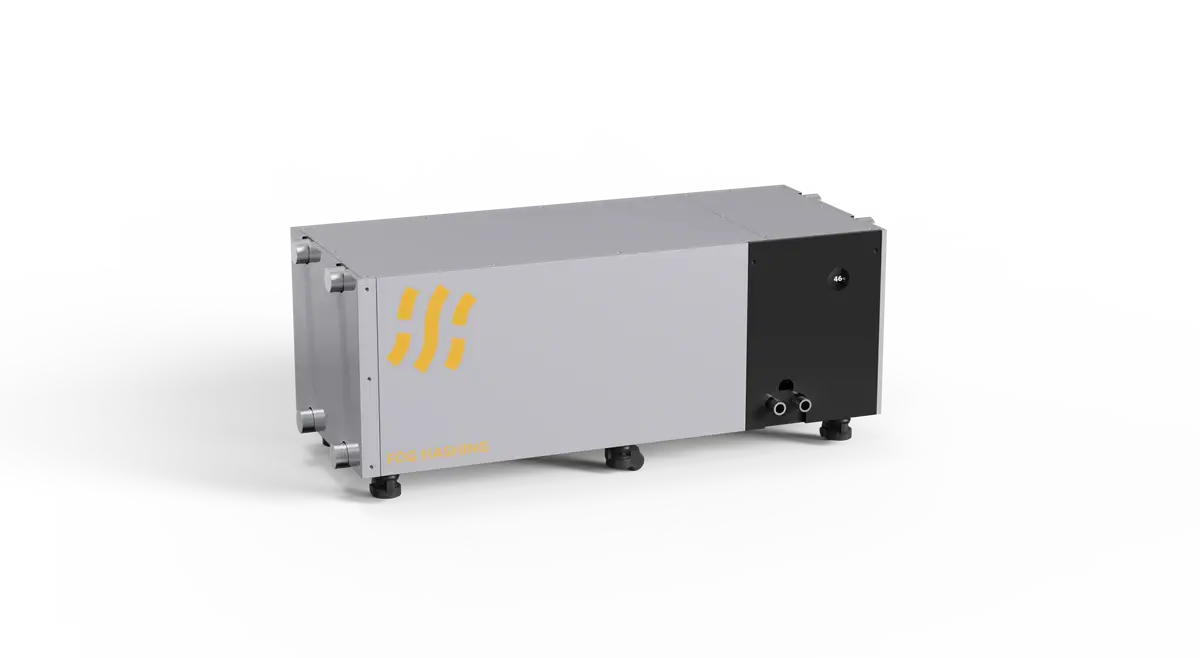

Fog Hashing Immersion Cooling Kit B6D & B6R Rack

0 out of 5 (0)

✓ Outer Size: 1420(L) x 575(W) x 620(H) mm

✓ N.W. / G.W. (B6): 130kg / 180kg

✓ N.W. / G.W. (B6D): 110kg / 166kg

✓ Total Weight: 230kg (with coolant and miners)

✓ Input Voltage: 3-phase 350-480V 50/60Hz, Single-phase 200-277V 50/60Hz

✓ Output Voltage: Single-phase 200-277V 50/60Hz

✓ Cooling Capacity: 30kW @ 30°C

✓ Power Usage: 400W (Max)

✓ Operating Temperature: -10°C to 40°C

✓ Display: 1.32” OLED Screen

✓ Coolant Volume: 174L

✓ Capacity: 6 ASIC Miners

✓ Network: 100Mbps Ethernet Switch

✓ External Cooling: Dry Cooler/Water Cooling Tower

✓ Pipe Diameter: DN25 (External Thread Diameter 32mm)

✓ Max Inlet/Outlet Temp: 45/60°C

✓ Noise (INoise): 55dB(A) at 10m Distance

Variants:

Get this product for
$706.00 - $6,116.00
vipera
Get it in 10 days
Estimate for 682345
vipera
Will be delivered to your location via DHL

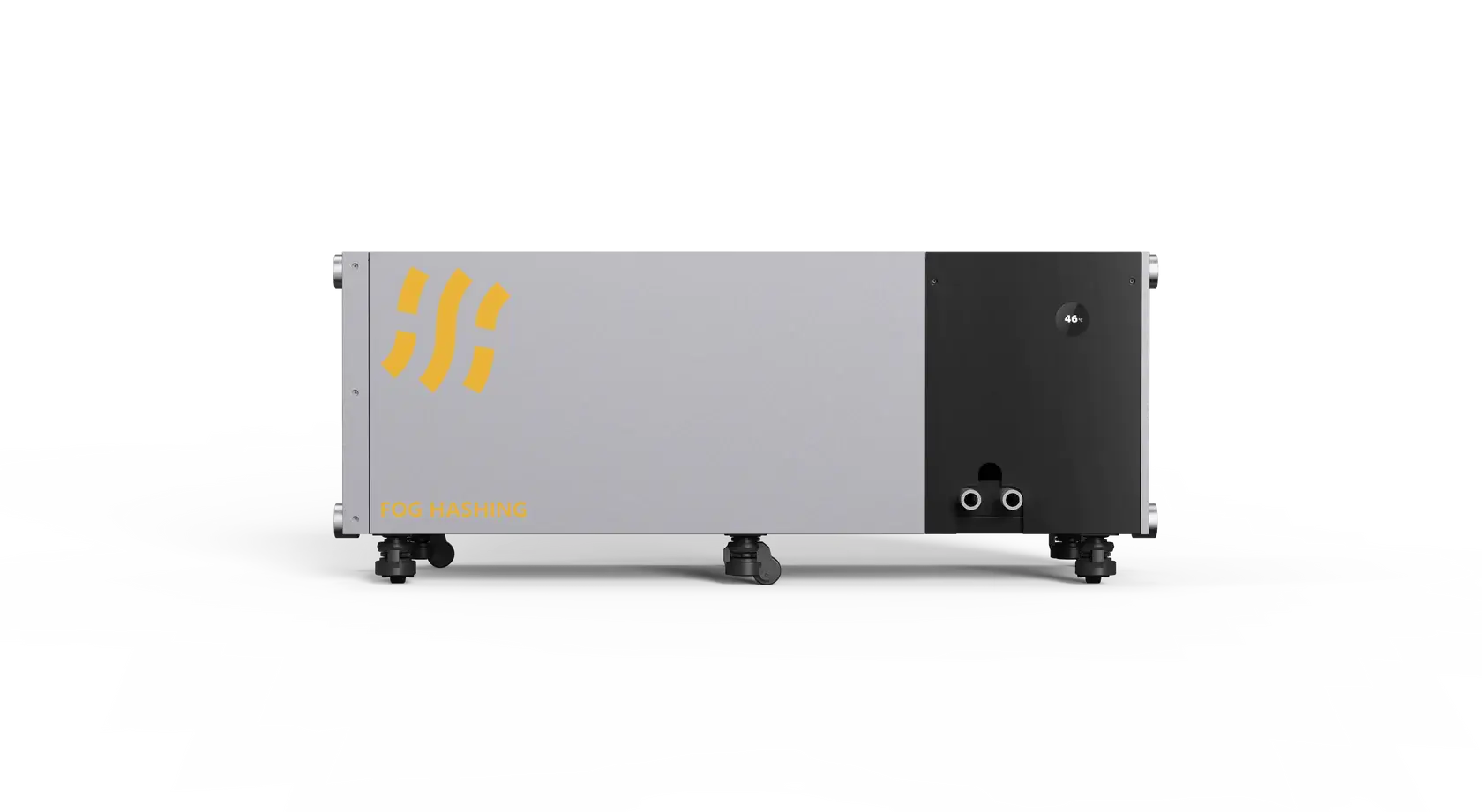

    B6D Tank (Technical Specifications)Value
    Outer Size1420(L) x 575(W) x 620(H) mm
    N.W. / G.W. (B6)130kg / 180kg
    N.W. / G.W. (B6D)110kg / 166kg
    Total Weight230kg (with coolant and miners)
    Input Voltage3-phase 350-480V 50/60Hz
    Single-phase 200-277V 50/60Hz
    Output VoltageSingle-phase 200-277V 50/60Hz

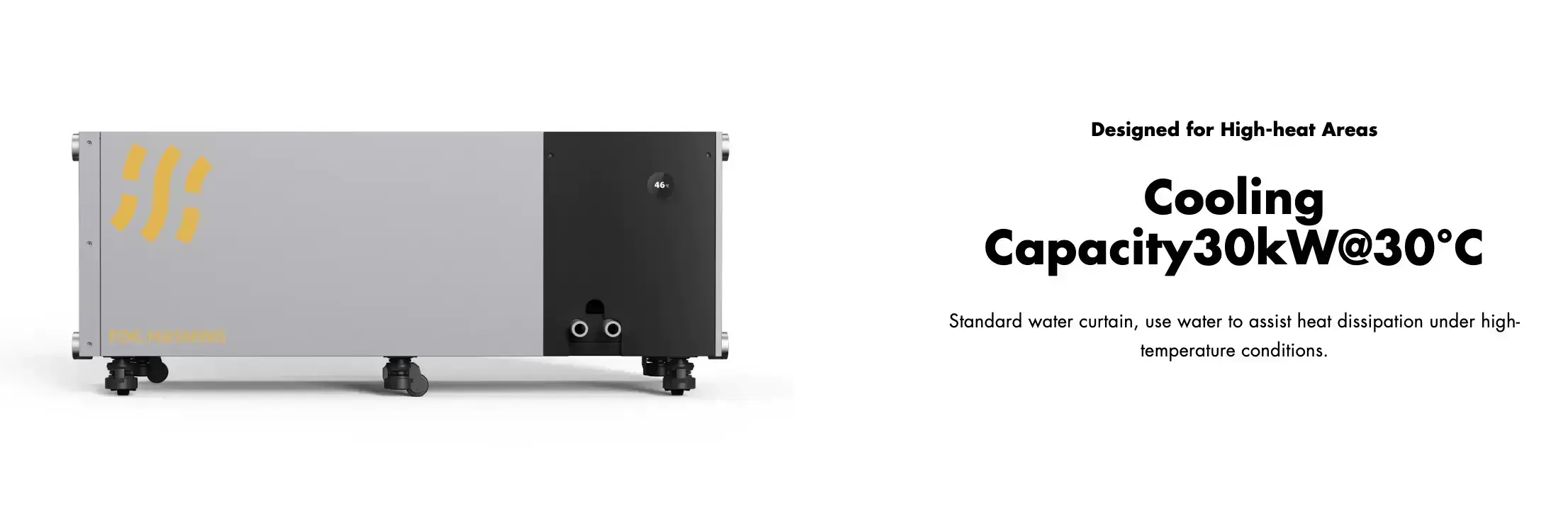

    Cooling Capacity30kW @ 30°C
    Power Usage400W (Max)
    Operating Temperature-10°C to 40°C
    Display1.32” OLED Screen
    Coolant Volume174L
    Capacity6 ASIC Miners
    Network100Mbps Ethernet Switch
    External CoolingDry Cooler/Water Cooling Tower
    Pipe DiameterDN25 (External Thread Diameter 32mm)
    Max Inlet/Outlet Temp45/60°C
    Noise (INoise)55dB(A) at 10m Distance

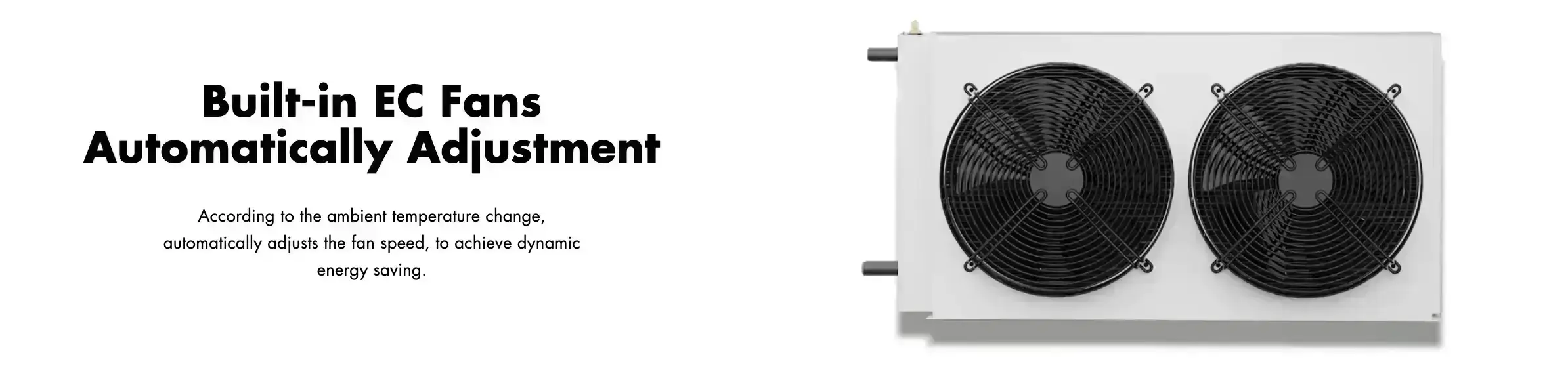

    B6D Dry Cooler (Technical Specifications)Value
    Outer Size1560(L) x 440(W) x 952(H) mm
    N.W. / G.W.117kg / 133kg
    Input VoltageSingle-phase 200-240V 50/60Hz
    Heat Transfer30kW @ 25°C
    20kW @ 35°C
    Operating Temperature-10°C to 40°C
    Coolant Capacity14L
    Power580W x 2
    Air Volume13,000m³/h
    Noise71dB(A) at 10m Distance
    Pipe DiameterDN25 (External Thread Diameter 32mm)
    Pipeline Length5m x 2
    B6R Rack (Specification)Value
    Outer size1519(L) * 614(W) * 2060(H) mm
    CapacityB6x2
