✓ Dimensions: 11800mm(L) * 2200mm(W) * 2350mm(H)
✓ Miner Capacity: 200

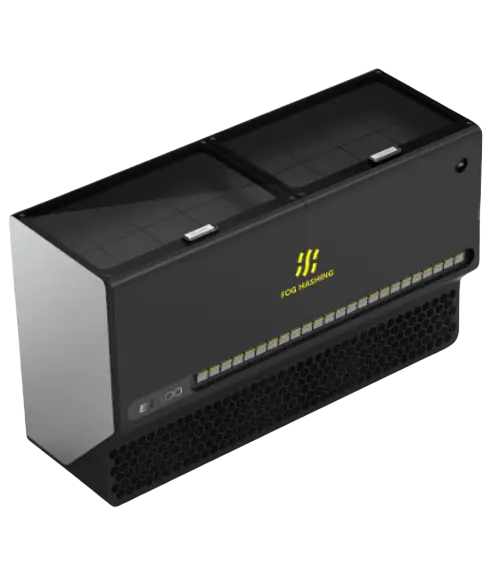

✓ Number of Tanks: 10 * B100 Tank (New design)
✓ Cooling Capacity: 1MW
✓ Circulation Mode: Single Loop / Dual Loop
✓ Coolant Volume: 7000L
✓ Cooling Type: Dry Cooler
✓ Input Voltage: 3-phase 350-480V 50/60Hz
✓ Max Power Load: 1437kW
✓ Operating Power: 100kW
✓ Max Inlet/Outlet Temp: 48/56°C
✓ Ambient Temperature: -25°C~48°C
✓ Monitoring: Tank level mini-LED | Web-based portal for remote control | Standard SNMP protocol | Email integration
✓ Coolant: Not Included
All sales final. No returns or cancellations. Please note the shipping cost for Air or Sea freight will be charged separately. For bulk inquiries, please consult a live chat agent or call our toll-free number.

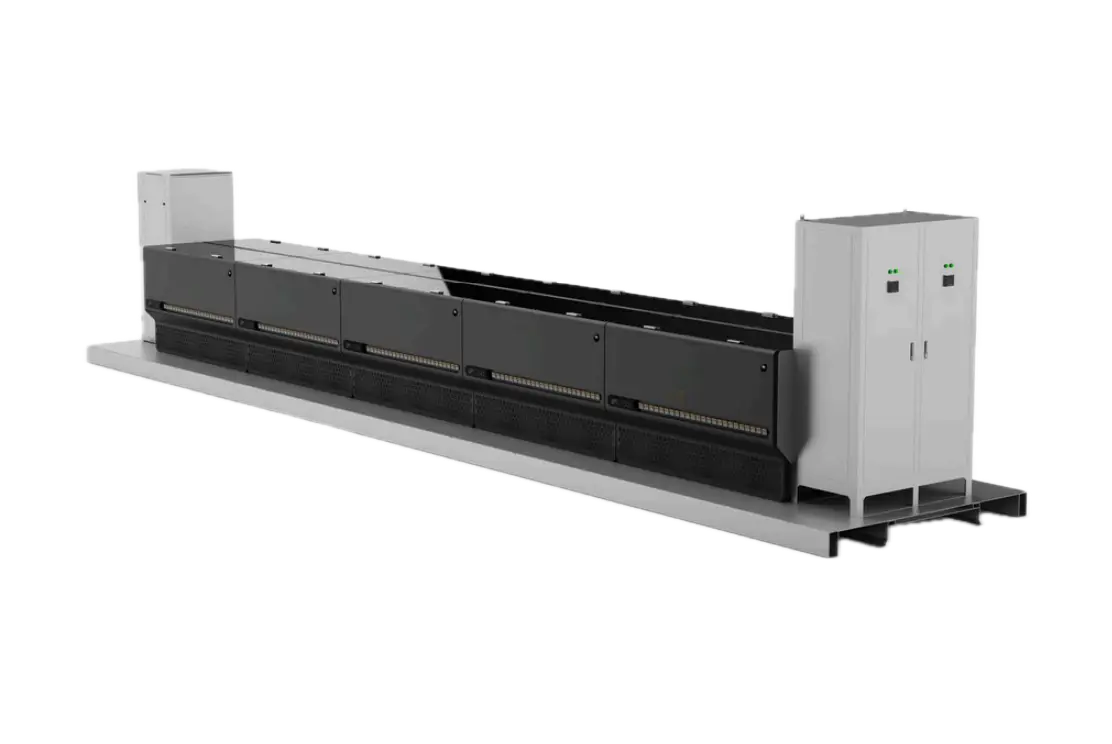

The setup boasts dimensions of 11800mm in length, 2200mm in width, and 2350mm in height, accommodating up to 200 miners across 10 newly designed B100 tanks. With a robust cooling capacity of 1MW and the flexibility of both single and dual loop circulation modes, it ensures efficient heat dissipation. The system holds a substantial coolant volume of 7000L and employs a dry cooler for cooling. Operating within a voltage range of 3-phase 350-480V 50/60Hz, it can handle a maximum power load of 1437kW while operating at 100kW. It maintains optimal operational temperatures with a maximum inlet/outlet temperature of 48/56°C and can endure ambient temperatures ranging from -25°C to 48°C. Monitoring is facilitated through various means, including tank level mini-LED indicators, a web-based portal for remote control, standard SNMP protocol, and email integration.
| SPECIFICATIONS | DETAILS |
| Dimensions | 11800mm(L) * 2200mm(W) * 2350mm(H) |
| Miner Capacity | 200 |
| Number of Tanks | 10 * B100 Tank (New design) |
| Cooling Capacity | 1MW |
| Circulation Mode | Single Loop / Dual Loop |
| Coolant Volume | 7000L |
| Cooling Type | Dry Cooler |
| Input Voltage | 3-phase 350-480V 50/60Hz |
| Max Power Load | 1437kW |
