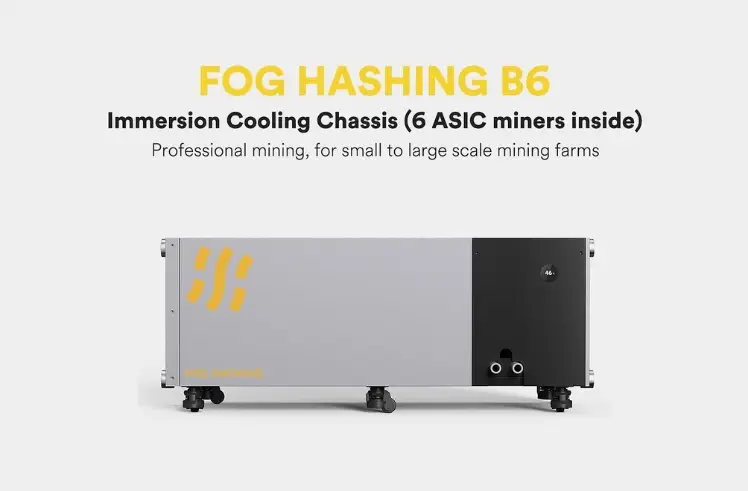

Designed for independent deployment

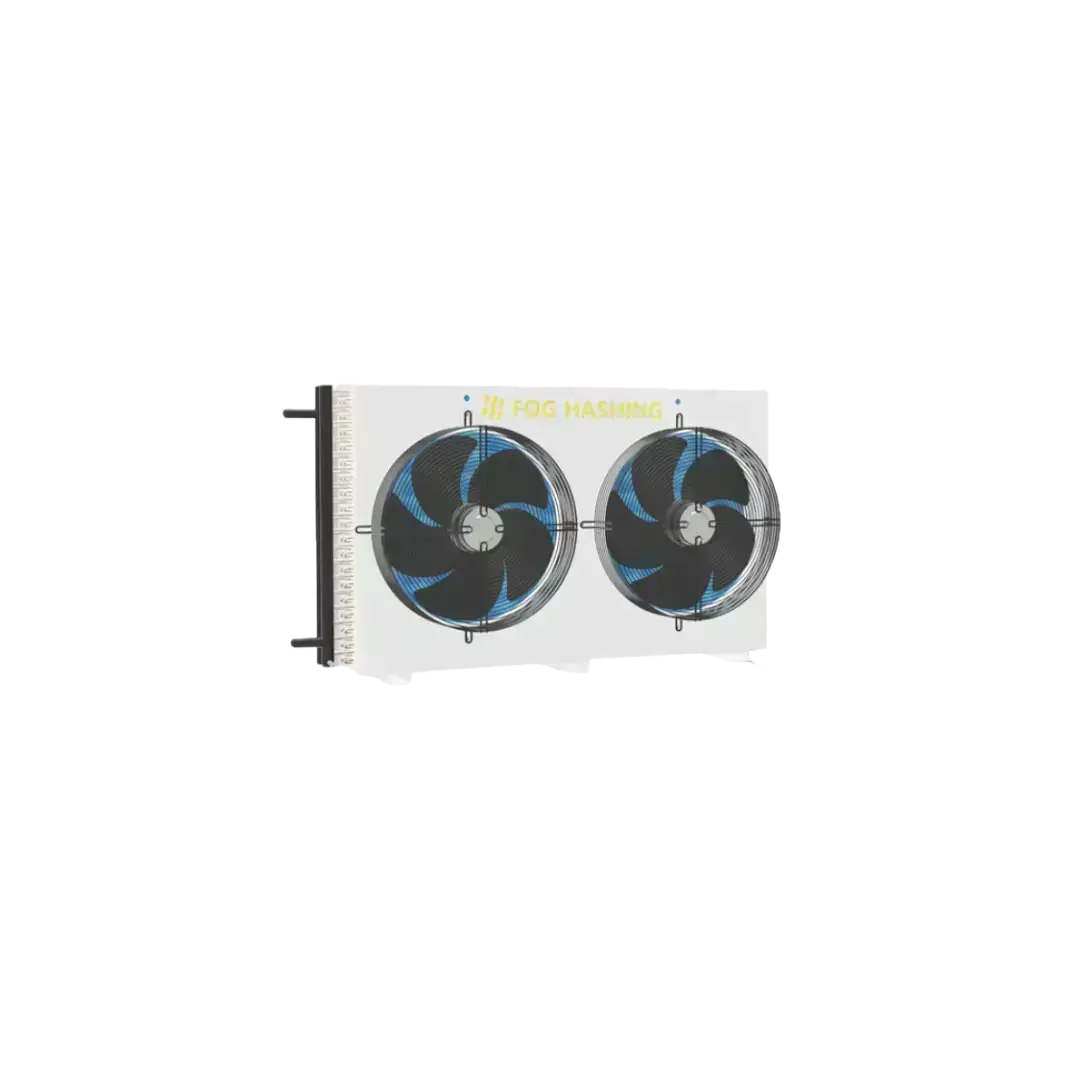

One B6D with one dry cooler for fast and easy deployment
All-in-one design with built-in PDUs, network switches, sensors, controllers
Single circulation for easier deployment
Uses only oil circulation to eliminate secondary heat exchange
Quick deployment with tubing and wire installation
B6D Ultra Edition designed for high heat areas
Miners can operate normally up to 42°C
Standard water curtain for heat dissipation in high temperature conditions
Cooling capacity adjustment with built-in EC motors that automatically adjust fan speed based on ambient temperature change
Optional VFD configuration available
For professional small to mid-scale mining operations.
A more efficient and economical solution that allows you to overclock and extract the most hashing performance out of your ASICS.
2 year manufacturer parts replacement warranty. Coolant is INCLUDED. Refer to DOWNLOADS tab for overclocking accessories and FogHashing catalogue.
From mini-sized (<100 miners) to large-sized (>1000 miners) liquid cooling farms
| Specification | B6D Dry Cooler |
|---|---|
| Outer Size | 1560(L) * 440(W) * 952(H) mm |
| N.W. / G.W. | 117kg / 133kg |
| Total Weight | 230kg (with coolant and miners) |
| Input Voltage | 3-phase 380-415V 50/60Hz |
| Output Voltage | Single-phase 200-277V 50/60Hz |
| Cooling Capacity | 30kW @ 25°C / 20kW @ 35°C |
| Power | 580W x 2 |
| Operating Temperature | -10°C ~ 40°C |
| Display | Not specified |
| Coolant Volume | 174L |
| Capacity | 6 ASIC miners |
| Network | 100Mbps Ethernet switch |
| External Cooling | Dry cooler/water cooling tower |
| Pipe Diameter | DN25 (External thread diameter 32mm) |
| Inlet Temperature | 45°C |
| Outflow Temperature | 65°C |
| Noise Level | 71dB(A)-10m |
| Air Volume | 13000m³/h |
| Pipeline | 5m x 2 |
