FogHashing C6 Immersion Cooling Suite (6 units)

0 out of 5 (0)

Outer Size: 1185(L) x 530(W) x 760(H) mm

Inner Size: 912(L) x 404(W) x 355(H) mm

Gross Weight: 110 kg

Coolant Volume: 200L

Cycle Mode: Single Loop

Input Voltage: Single-Phase 200-240V, 50/60Hz

Max Power Usage: 800-1100W

Noise Level: 45dB(A) at 10 meters

Flow Rate: 90L/min

Miner Capacity: 6 x S19/S21 or 8 x M50/M60

PDU: Single-phase 220V 125A 6C19 / Three-phase 380V 63A 6C19

Electrical Interface: C14 x 1

Warranty: 1 year manufacturer replacement parts

Coolant: 200L Included



Shipping cost is charged separately, and approximately $2,750 USD by air freight. For sea freight, the cost is substantially cheaper (40-50 day transit) and will be quoted. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

Variants:

Get this product for
$3,615.00 - $5,790.00
vipera
Get it in 10 days
Estimate for 682345
vipera
Will be delivered to your location via DHL

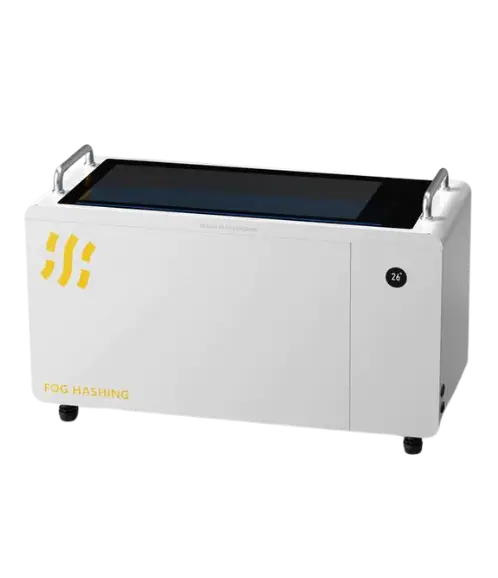

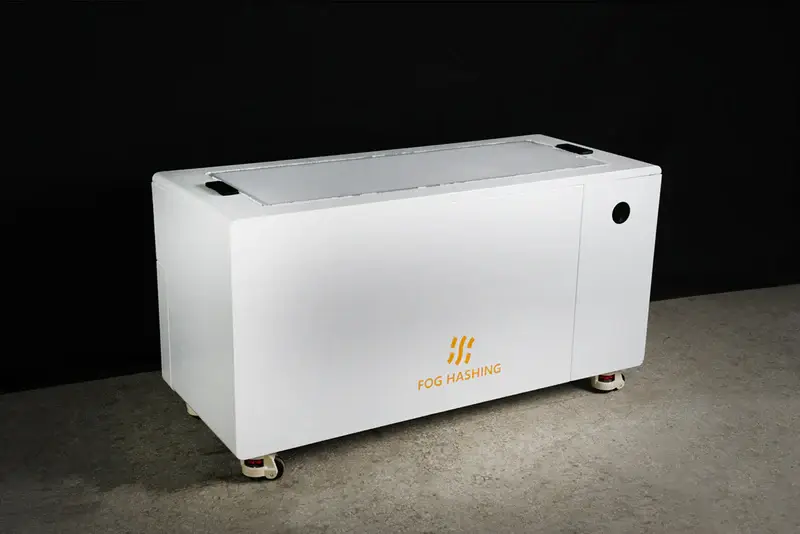

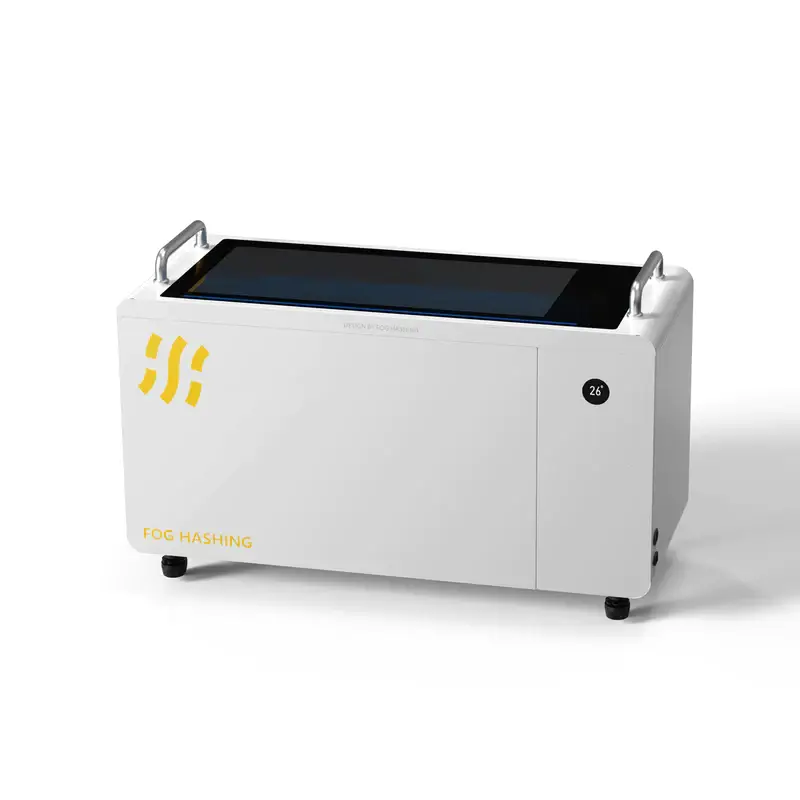

Compact and Efficient Cooling Solution: C6 Tank

The C6 Tank offers a compact and efficient solution for cooling systems, with outer dimensions measuring 1185(L) x 530(W) x 760(H) mm and a gross weight of 110 kg. Designed for single-loop operation, it can handle a substantial coolant volume of 200L, ensuring effective heat dissipation. With a maximum power usage ranging from 800W to 1100W, this tank operates quietly at a noise level of 45dB(A) at 10 meters, making it suitable for various environments. Its electrical interface, featuring a single-phase input voltage of 200-240V at 50/60Hz and a C14 connection, facilitates seamless integration into existing systems. Additionally, the C6 Tank supports the capacity of 6 x S19/S21 or 8 x M50/M60 miners, making it versatile for different mining setups.

Reliable Power Distribution: PDU Configuration

The PDU configuration of the C6 Tank ensures reliable power distribution, catering to the diverse needs of mining operations. With options for single-phase 220V 125A 6C19 or three-phase 380V 63A 6C19, it provides flexibility in power management. This setup allows for efficient utilization of resources while maintaining stability and safety within the mining infrastructure. By offering multiple options for electrical connectivity, the C6 Tank's PDU configuration enhances scalability and adaptability, enabling miners to optimize their operations according to their specific requirements.

    C6 Tank Technical SpecificationsDetails
    Outer Size1185(L) x 530(W) x 760(H) mm
    Inner Size912(L) x 404(W) x 355(H) mm
    Gross Weight110 kg
    Coolant Volume200L
    Cycle ModeSingle Loop
    Input VoltageSingle-Phase 200-240V, 50/60Hz
    Max Power Usage800-1100W
    Noise Level45dB(A) at 10 meters
    Flow Rate90L/min
    Miner Capacity6 x S19/S21 or 8 x M50/M60
    PDUSingle-phase 220V 125A 6C19 / Three-phase 380V 63A 6C19
    Electrical InterfaceC14 x 1

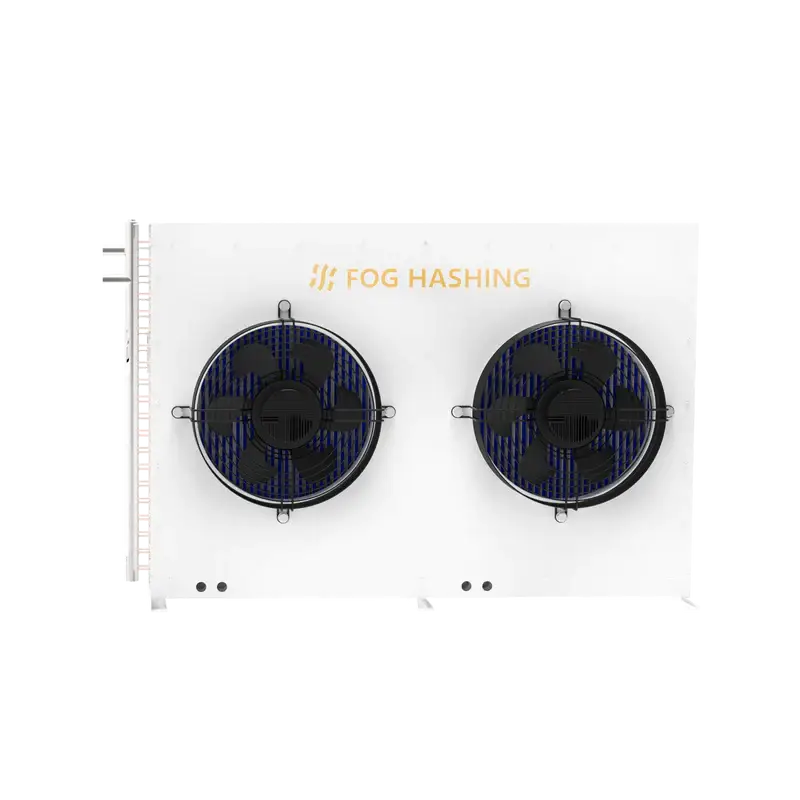

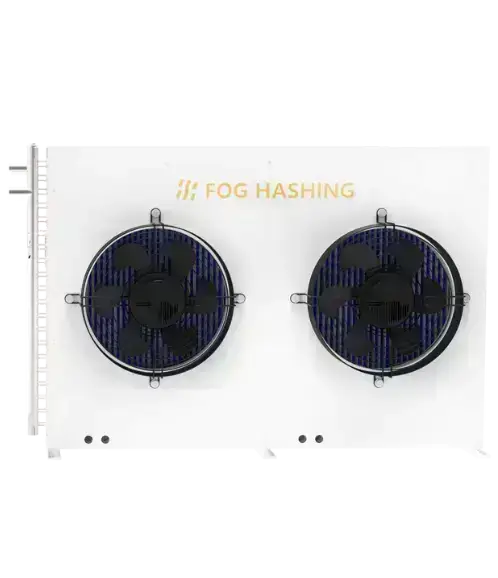

    C6 Dry Cooler Technical SpecificationsDetails
    Outer Size1680(L) x 400(W) x 1015(H) mm
    Gross Weight110 kg
    Input VoltageSingle-Phase 200-240V, 50/60Hz
    Max Power Usage10-1350W
    Cooling Capacity24kW at 35°C
    Fluid In/Out Temp63-53°C
    Fan TypeEC Fan
    Optional CoolingWater Mist
    Noise Level65dB(A) at 10 meters (Max)
