Scaling Solution
Out of stock

FogHashing M1/M6/M20 Immersion Cooling Kit for WhatsMiner M56 / M36 / M66

0.0 out of 5 (0)

✓ Product Names: Immersion Cooling Kits M1 | M6 | M20

✓ Compatible with: Whatsminer M36, M56, M66

✓ Power Specs: M1: Single-phase 200-240V
M6: Mixed single/three-phase
M20: Three-phase 350-480V
✓ Plug Types: C14, plus three-phase for mining rigs

✓ Max Ambient Temp Modes: M1: Up to 71°C in low-power mode
M6: 35°C high-performance
M20: Extreme temp adaptable
✓ Noise Levels: Tanks: ≤45dB(A) at 10m
Dry Coolers: ≤68dB(A) at 10m
✓ Whatsminer Compatibility: M36, M56, M66 across all kits

✓ Accessories: Pipelines, Oil Pump, Gasket, Adapter

✓ Coolant Capacities: M1: 30L
M6: 200L
M20: 700L

About It

No additional information available for this product yet.
vipera
Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

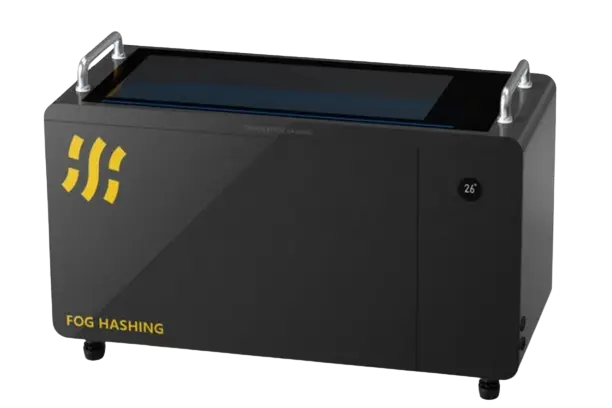

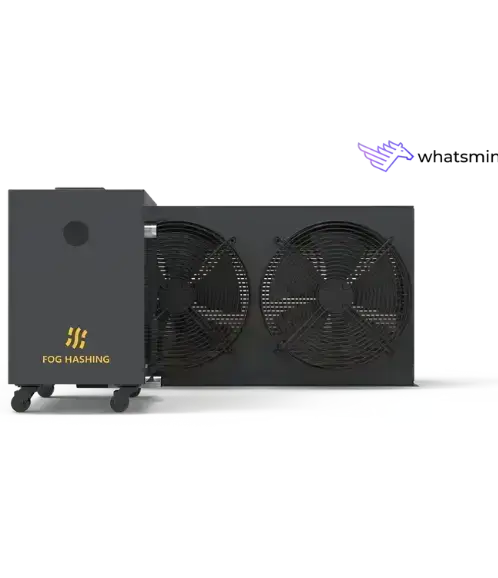

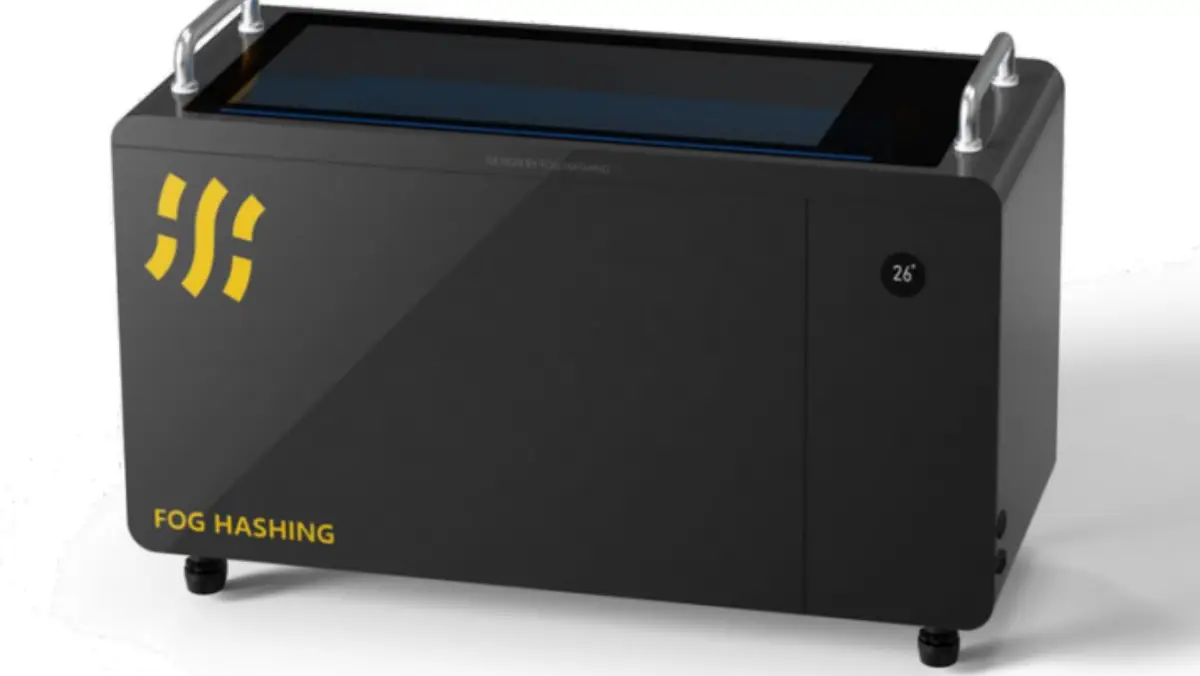

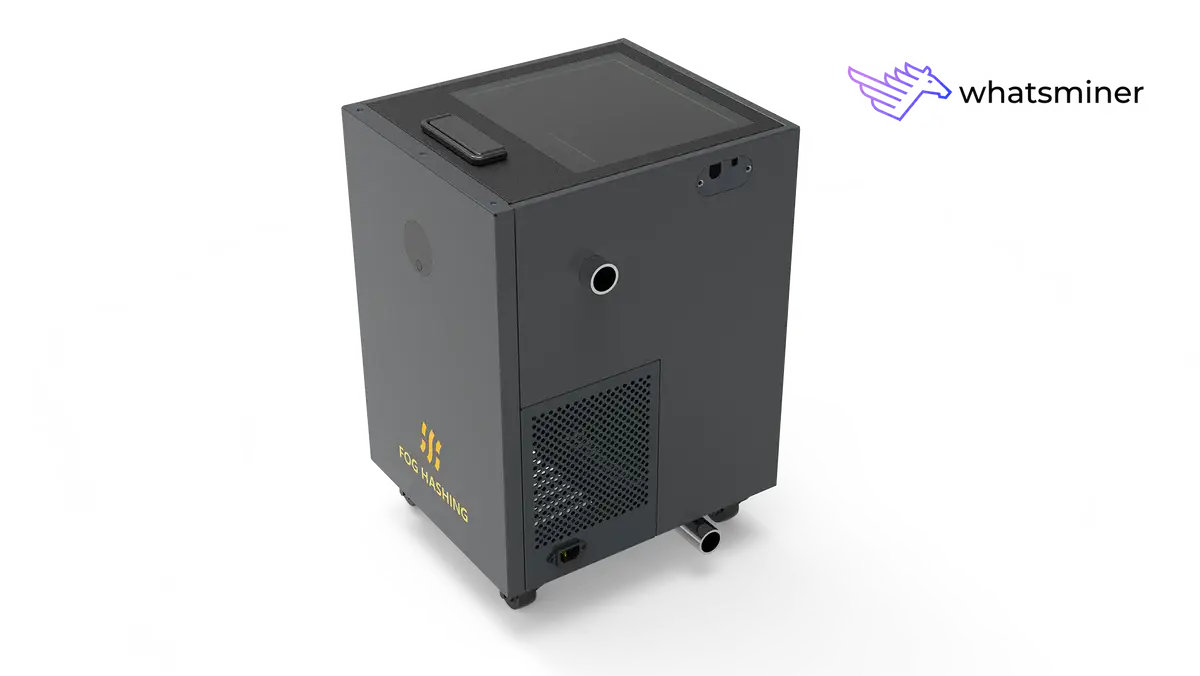

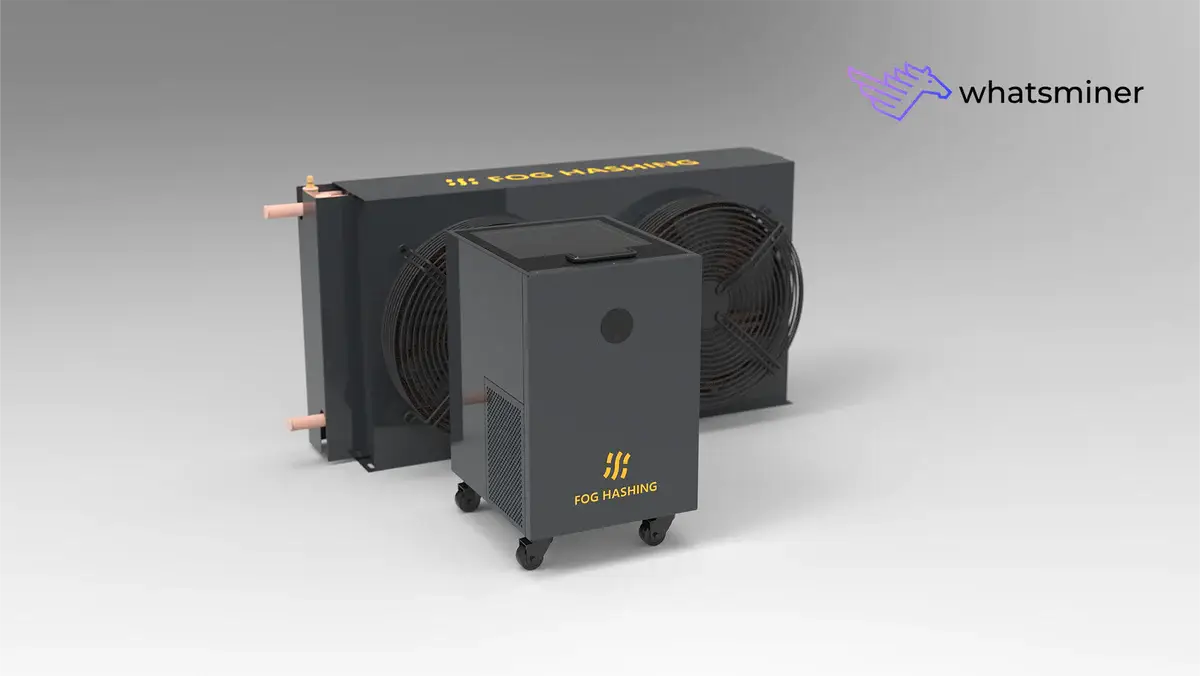

Foghashing M1 Immersion Cooling Kit: Compact Efficiency for Individual Bitcoin Mining

The Immersion Cooling Kit M1 is the perfect companion for miners using the Whatsminer M56, M36 and M66 series, offering efficient and reliable cooling solutions. With power supply requirements of single-phase 200-240V 50/60Hz for the tank and dry cooler, and three-phase 380V for the mining rig (M56S or M66), this kit ensures seamless operation under various power conditions. The included C14 plugs for the tank and dry cooler, along with the three-phase electric plug for the mining rig, make setup a breeze. Additionally, the M1 kit supports these mining rigs even in challenging environments, with maximum ambient temperature tolerances ranging from 45°C in high-performance mode to 71°C in low-power mode. This flexibility ensures optimal mining performance and longevity.

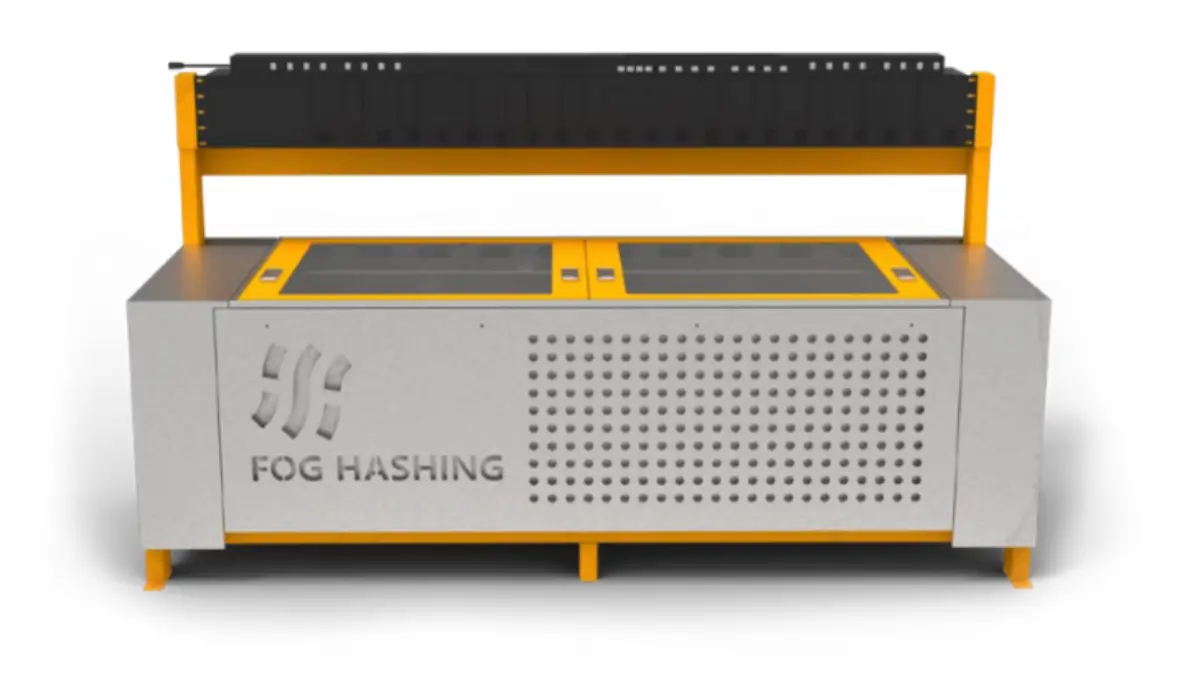

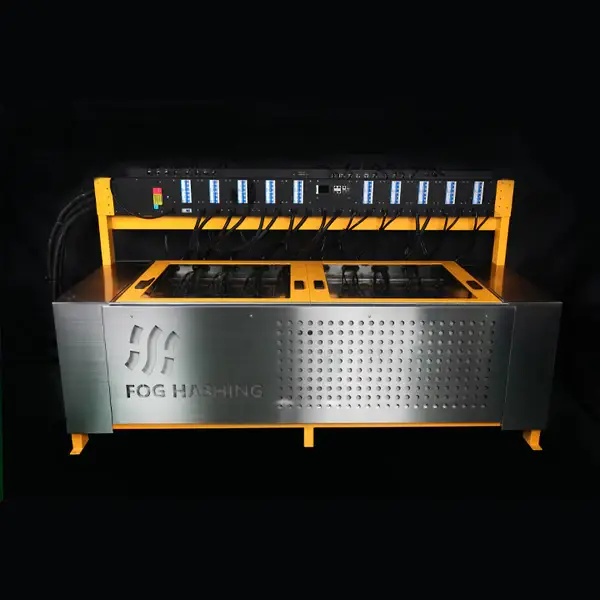

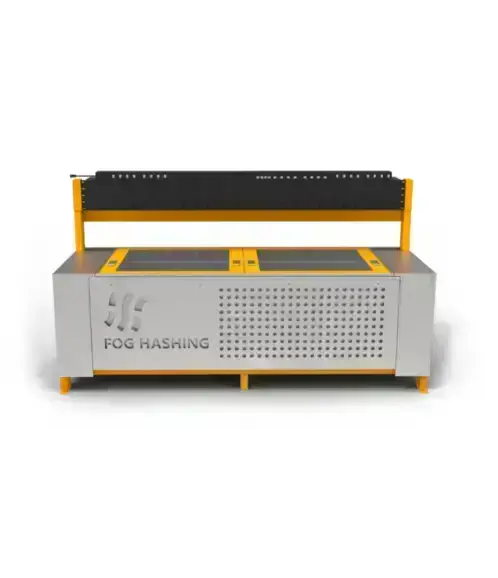

Foghashing M20 Native Immersion Cooling Suite: Ultimate Mining Performance for Professionals

The Foghashing M20 Native Immersion Cooling Suite delivers unparalleled performance for large-scale mining operations. Designed specifically for WhatsMiner M66/M56 models in partnership with MicroBT, this cooling suite can house up to 20 miners within its advanced tank system. It features a massive 700L coolant capacity and a 160kW cooling capacity that operates effectively even in extreme temperature environments. The suite's intelligent management system streamlines operations with remote management software, providing a one-key intelligent operation. Flexible scalability and a one-year warranty with repair services underline the M20’s commitment to enduring service. Its intelligent design promotes efficient flow, saves space and coolant, and ensures mining operations can reach new heights of efficiency and profitability.

    SpecificationM1 Immersion Cooling KitM6 Native Immersion Cooling KitM20 Native Immersion Cooling Suite
    Tank Outer Size (LxWxH)360x330x513 mm1185x530x760 mm1982x774x1072 mm
    Tank Inner Size (LxWxH)150x273x337 mm912x404x335 mmN/A
    Dry Cooler Outer Size (LxWxH)1076x285x531 mm1500x1200x900 mm2956x2220x2454 mm
    Net Weight (Tank)21.5 kg110 kg172 kg
    Net Weight (Dry Cooler)45 kg200 kgMax Power Load: 14kW
    Coolant Volume30 L200 L700 L
    Input Voltage (Tank)Single-phase 200-240V<br>Three-phase 380-480V for M56Single-phase 200-240V<br>Three-phase 380-480V for M563-phase 350-480V 50/60Hz
    Input Voltage (Dry Cooler)Single-phase 200-240V3-phase 380-480V 50/60Hz3-phase 350-480V 50/60Hz
    Power (Tank)180W (220V 50Hz)850W (220V 50Hz)N/A
    Power (Dry Cooler)5-400W (220V 50Hz)10-1800W (220V 50Hz)N/A
    Noise (Tank)45dB(A) @ 10m45dB(A) @ 10mN/A
    Noise (Dry Cooler)68dB(A) @ 10m68dB(A) @ 10m68dB(A) @ 10m
    Cooling CapacityHigh-performance mode@45°C<br>Normal mode@57°C160kW@35°C160kW@35°C
    Ambient Temperature-25-55°C-25-55°C-25°C~55°C
    Qty of Miner(s)1* M66/M566* M66/M5620* M66/M56
    AccessoriesPipeline, Oil Filling Pump, Power Adapter, Gaskets, Manual, StickerPipeline, Oil Filling Pump, Power Adapter, Gaskets, Manual, StickerN/A
    Additional FeaturesN/A100A 3-Phase Smart PDU (Optional)Smart PDU Included, Heat Transfer Area: 930m³
