NVIDIA HGX™ H200 8-GPU
900GB/s GPU-to-GPU bandwidth with NVIDIA® NVLink™ and NVSwitch™
Dual AMD EPYC™ 9004 Series Processors
12-Channel DDR5 RDIMM, 24 x DIMMs
Dual ROM Architecture
2 x 10Gb/s LAN ports via Intel® X710-AT2
2 x M.2 slots with PCIe Gen3 x4 and x1 interface
8 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
4 x FHHL PCIe Gen5 x16 slots
8 x LP PCIe Gen5 x16 slots
4+2 3000W 80 PLUS Titanium redundant power supplies
All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

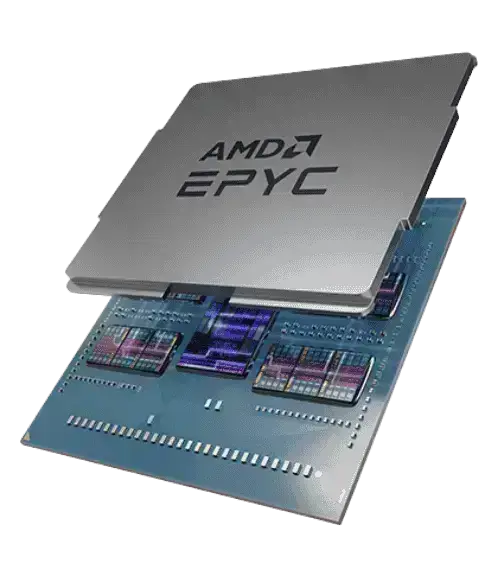

The path to AMD's 5nm 'Zen 4' architecture was paved with many successful generations of EPYC innovations and chiplet designs, and AMD EPYC 9004 Series processors continue this progression. Adding a host of new features to target a wide range of workloads, the new family of EPYC processors will deliver even better CPU performance and performance per watt, and do so on a platform with 2x the throughput of PCIe 4.0 lanes that also has support for 50% more memory channels. For this new platform, GIGABYTE has products ready to get the most out of EPYC-based systems that support fast PCIe Gen5 accelerators and Gen5 NVMe drives, in addition to support for high performant DDR5 memory.

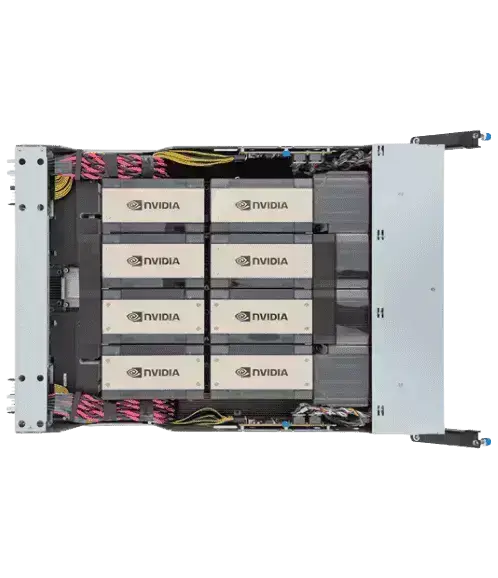

Supports NVIDIA HGX™ H200 8-GPU
The NVIDIA HGX™ H200 combines H200 Tensor Core GPUs with high-speed interconnects to deliver extraordinary performance, scalability, and security for every data center. Configurations of up to eight GPUs deliver unprecedented acceleration, with a staggering 32 petaFLOPS of performance to create the world’s most powerful accelerated scale-up server platform for AI and HPC. An eight-way HGX H200 provides over 32 petaflops of FP8 deep learning compute and 1.1TB of aggregate high-bandwidth memory. NVIDIA HGX™ H200 also includes NVIDIA BlueField®-3 data processing units (DPUs) to enable cloud networking, composable storage, zero-trust security, and GPU compute elasticity in hyperscale AI clouds.

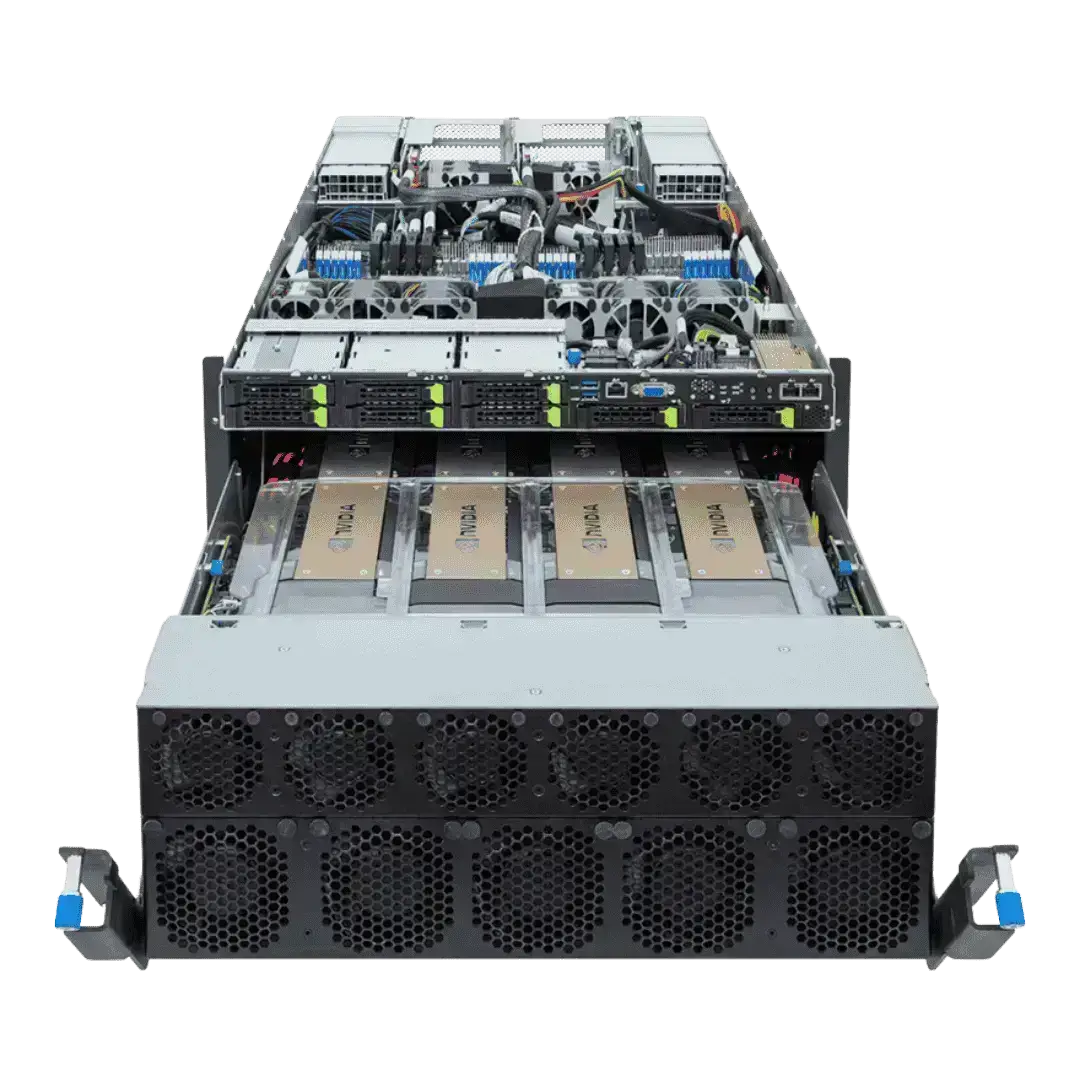

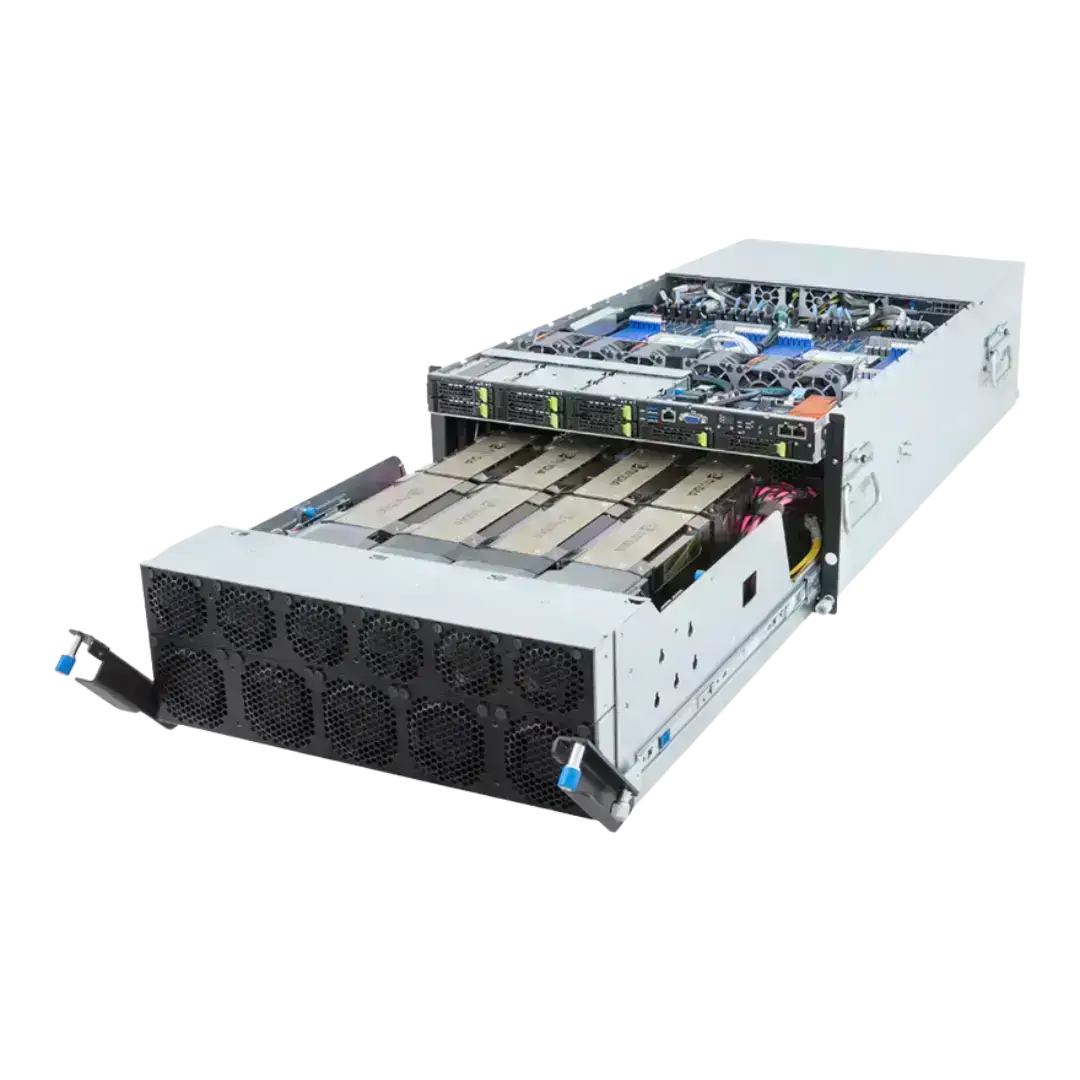

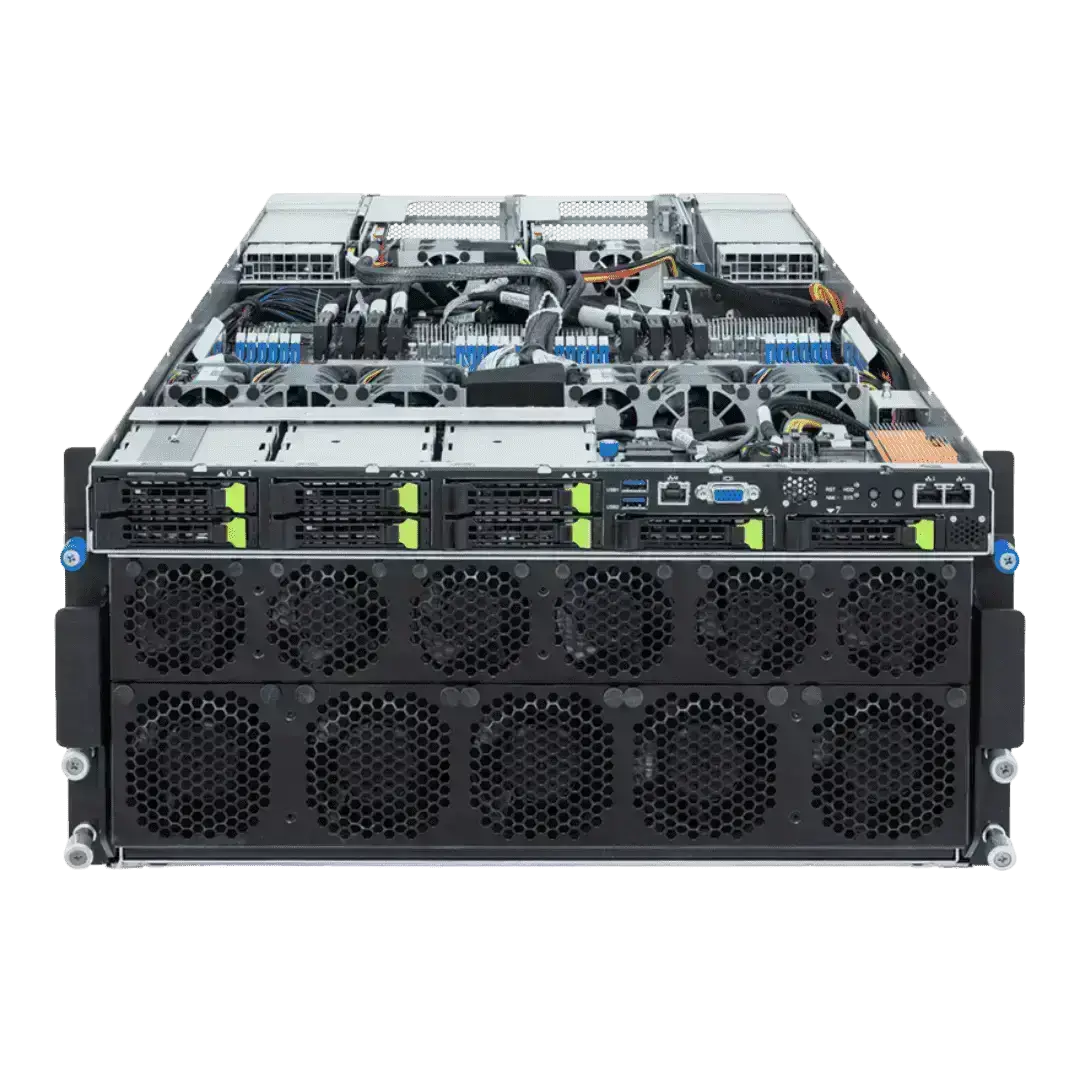

| Server System | GIGABYTE G593-ZD1-AAX3, 5U 2CPU NVIDIA® HGX™ H200 8-GPU Server System for HPC / AI, Dual AMD EPYC™ 9004, 24x DDR5 DIMM Slots, 8x Hot-Swap Storage Bays, 4+2 3000W 80+ Titanium PSUs, Air Cooling, 2x 10Gb/s RJ45 LAN Ports (Intel® X710-AT2), 2x IPMI RJ45 Ports, 8x NVIDIA H200 SXM5 Modules, NVLink Fabric |
| CPU | 2x AMD EPYC 9754 3.1GHZ 128 Cores Processor |
| System Memory | 24x 96GB DDR5 ECC RDIMM, 4800MHz |
| SSD 1 (OS) | 2x 1.92TB NVMe PCIe Gen4 U.2 SSD |
| SSD 2 (Scratch) | 3x 7.68TB NVMe PCIe Gen4 U.2 SSD |
| Network Card 1 | 8x NVIDIA ConnectX-7 VPI 400GbE/NDR IB, Dual-Ports OSFP, PCIe Gen5 x16 HHHL, Crypto Disabled, Secure Boot Enabled, 3-Year Warranty, MCX75310AAS-NEAT |
| Network Card 2 | 2x NVIDIA ConnectX-7 VPI 200GbE/NDR200 IB, Dual-Ports QSFP112, PCIe Gen5 x16 HHHL, Crypto Disabled, Secure Boot Enabled, 3-Year Warranty, MCX755106AS-HEAT |
| Accessories | 6x Server Power Cables, 1x Slide Rail Kit, 2x CPU Heatsinks |
| Service 1 | Assembly and Testing by GIGABYTE |
| Software | GIGABYTE Server Management (GSM) Software – License Free |
