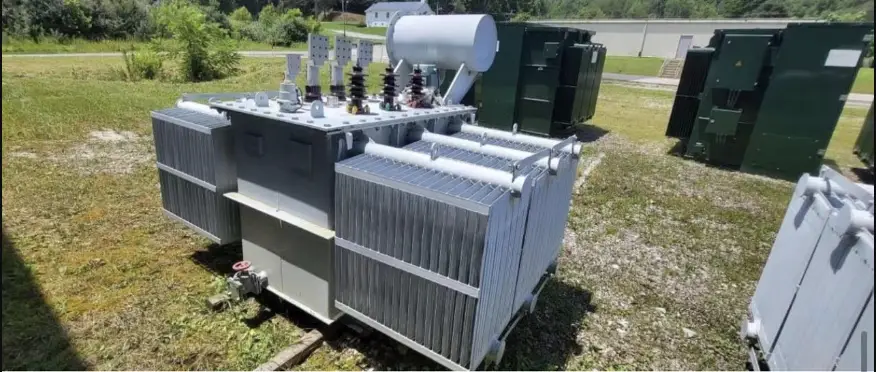

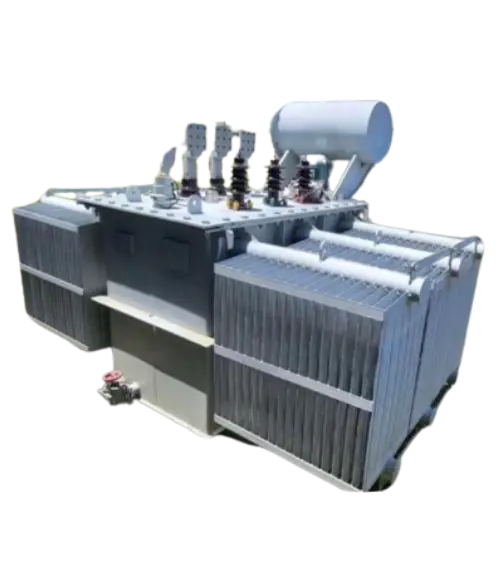

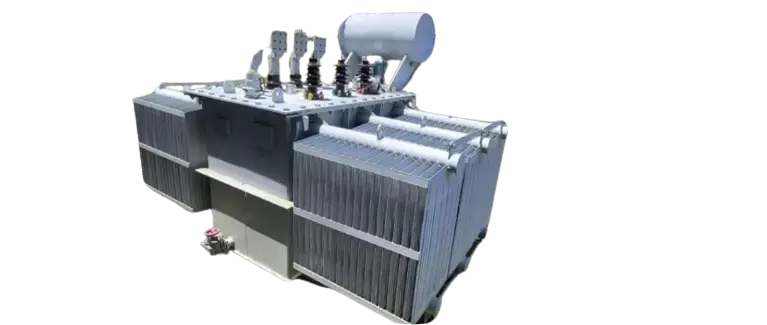

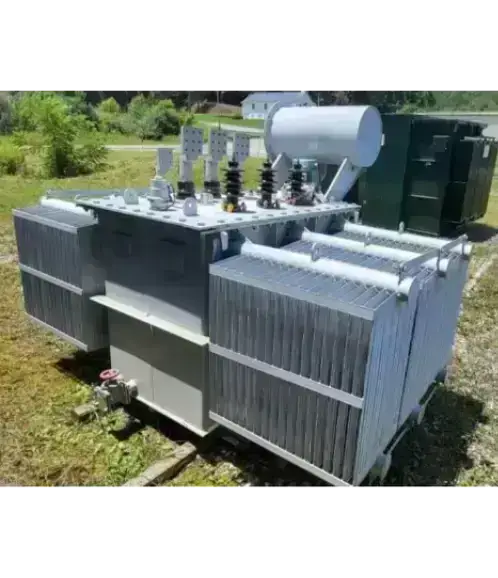

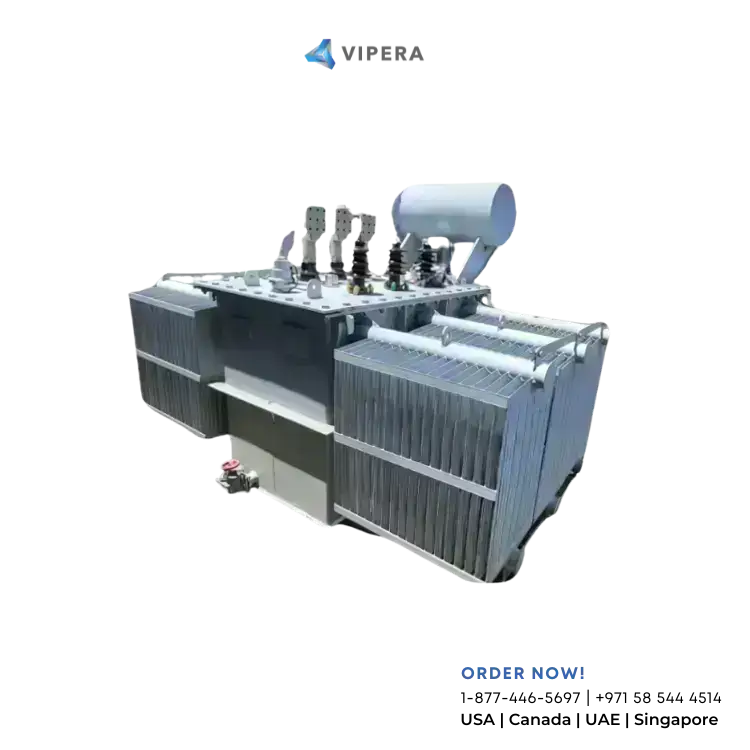

Huapeng 3000 KVA Pad Mounted Transformer

0.0 out of 5 (0)

✓ Capacity: 3000 kVA

✓ Phase: Three-phase

✓ Impedance: 5.75%

✓ Cooling: KNAN with FR3 oil

✓ Vector Group: Dyn1

✓ Efficiency: DOE-2016 compliant

✓ High Voltage: 12,470 Delta Volts, 95 kV BIL

✓ High Voltage Configuration: Dead Front, Loop Feed

✓ Taps: 2 – 2.5% taps above and 2 – 2.5% taps below normal

✓ Load-Break Switching: 15-38kV, 200A

✓ Overcurrent Protection: Bayonet Fuses with Partial-Range Current-Limiting Fuses

✓ Low Voltage: 415 Volts, 30 kV BIL

✓ Low Voltage Class: 1.2 kV

✓ Coatings: Munsell Green topcoat

Get this product for
$68,000.00
vipera
vipera
Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

USA Stock

Get this product for
$68,000.00
vipera
vipera
Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

USA Stock

⭐ Trusted by Customers
What Our Customers Say

Verified reviews from real customers on Trustpilot

Transformer Specifications:

The Huapeng 3000kVA Pad Transformer is a robust three-phase transformer with a capacity of 3000 kVA, making it suitable for various industrial and utility applications. Its low impedance of 5.75% ensures efficient power transfer while minimizing energy losses. This transformer operates with a cooling system consisting of KNAN and FR3 oil, guaranteeing effective temperature control. Its Dyn1 vector group configuration provides flexibility in power distribution setups, and it complies with DOE-2016 efficiency standards, reflecting its commitment to energy efficiency. With high voltage rated at 12,470 Delta Volts and a 95 kV BIL, it can handle demanding voltage requirements. The inclusion of multiple taps, both above and below the normal rating, allows for precise voltage adjustments, ensuring optimal performance. Additionally, its load-break switching capability at 15-38kV and 200A provides versatility in managing electrical circuits.

Safety and Accessories:

The Huapeng 3000kVA Pad Transformer prioritizes safety and reliability. It features overcurrent protection using bayonet fuses in series with Partial-Range Current-Limiting fuses, minimizing the risk of electrical faults. With a low voltage rating of 415 Volts and a 30 kV BIL, it provides consistent power distribution on the low-voltage side. The transformer is equipped with IEEE standard two-hole ground pads for grounding, enhancing safety. Its construction includes a durable enclosure with a bolted or welded cover, ensuring the security of internal components. The presence of gauges, including liquid level, thermometer, pressure/vacuum gauge, and a drain valve with a sampler in the low-voltage compartment, offers real-time monitoring and maintenance convenience. Lastly, the Munsell Green topcoat adds a protective layer to the transformer's exterior while adhering to industry standards.

    ParameterSpecification
    Capacity3000 kVA
    PhaseThree-phase
    Impedance5.75%
    Temperature Rise65°C (average winding rise)
    Cooling ClassKNAN with FR3 oil
    Vector GroupDyn1
    Efficiency StandardDOE-2016 compliant
    High Voltage12,470 Delta Volts
    High Voltage BIL95 kV
    High Voltage ConfigurationDead Front, Loop Feed
    Taps2 – 2.5% taps above and 2 – 2.5% taps below normal
    Load-Break Switching15-38kV, 200A 4-Position T-Blade
    Overcurrent ProtectionBayonet Fuses in series with Partial-Range Current-Limiting Fuses
    Expulsion FusesBayonet Fuses
    Bayonet HolderSilver-Plated Holder Fuses
    Low Voltage415 Volts
    Low Voltage BIL30 kV
    Low Voltage Class1.2 kV
    Low Voltage BushingsIntegral copper 12-hole spade bushings
    Bushing ArrangementStaggered LV Bushing Arrangement
    Bushing SupportsStandard LV Bushing Support Assembly
    Cabinet HardwarePenta-head cabinet door bolts
    IEEE K-DimensionLoop feed per IEEE C57.12.34-2015 Figure 11 min. dimensions (without bails)
    CoatingsMunsell Green (Munsell 7GY 3.29/1.5) topcoat
    Gauges & FittingsLiquid level gauge, Thermometer (dial type), Pressure/vacuum gauge, Drain valve (1″) with sampler in LV compartment, Pressure relief device (35 SCFM)
    Tank AccessoriesIEEE standard two-hole ground pads
    CoverBolted or welded cover with handhole
    Gauges LocationInside Main Cabinet on Front Plate
