Powered by the NVIDIA Blackwell architecture and DLSS 4
Core Clocks: Extreme Performance: 2760 MHz (MSI Center) Boost: 2745 MHz (GAMING & SILENT Mode)
HYPER FROZR THERMAL DESIGN: An apex evolution of advanced thermal design that delivers unparalleled cooling and quiet operation.

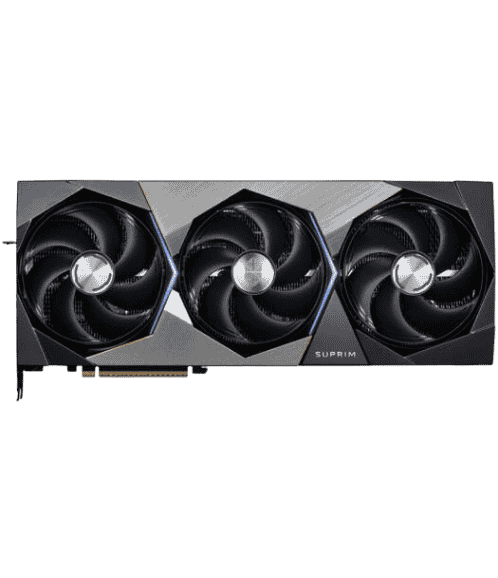

STORMFORCE Fan: Seven fan blades, claw texturing, and a circular arc are designed for optimal airflow with minimal noise.
Advanced Vapor Chamber: Built-in Vapor Chamber swiftly transfers heat from the GPU and VRAM to the core pipe for optimal dissipation.
Core Pipes: Square-shaped Core Pipes maximize heat dissipation with the Vapor Chamber for superior cooling.
Filled Fins: Shaped fins cover the core pipes to reduce turbulence and enhance cooling performance.
Wave Curved 4.0: Precision-engineered wave edges with a high-low fin design enhance airflow and reduce turbulence.
Air Antegrade Fin 2.0: The fins feature a V-shaped cutout and a high-low design at the airflow passthrough to optimize flow efficiency.
Metal Backplate: A reinforcing metal backplate with airflow vents and thermal pads enhances cooling.
An apex evolution of advanced thermal design that combines fans, core pipes, vapor chamber, and fin shape to unleash unparalleled cooling efficiency and silent performance.
| Marketing Name | GeForce RTX™ 5080 16G SUPRIM SOC |
| Model Name | G5080-16SPS |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5080 |
| Interface | PCI Express® Gen 5 x16 |
| Core Clocks | Extreme Performance: 2760 MHz (MSI Center), Boost: 2745 MHz |
| CUDA® Cores | 10,752 |
| Memory Speed | 30 Gbps |
| Memory | 16GB GDDR7 |
| Memory Bus | 256-bit |

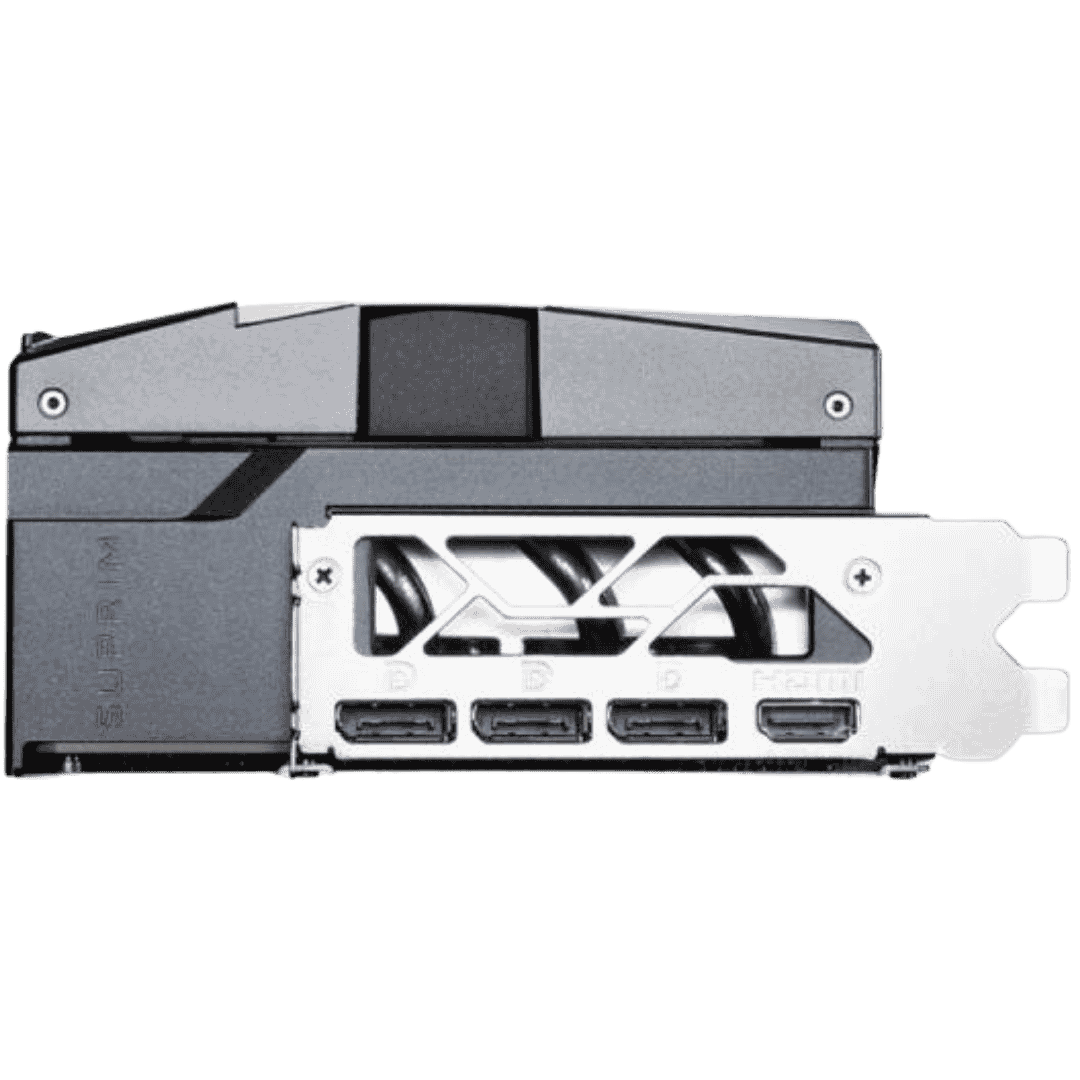

| Output | 3x DisplayPort 2.1b, 1x HDMI™ 2.1b (Up to 4K 480Hz or 8K 120Hz with DSC, Gaming VRR, HDR) |
| HDCP Support | Yes |
| Power Consumption | 360W |
| Power Connectors | 1x 16-pin |
| Recommended PSU | 850W |
| Card Dimension (mm) | 359 x 150 x 76 mm |
| Weight (Card / Package) | 2614g / 3551g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® Technology | Yes |
| Digital Maximum Resolution | 7680 x 4320 |
