Specification | |

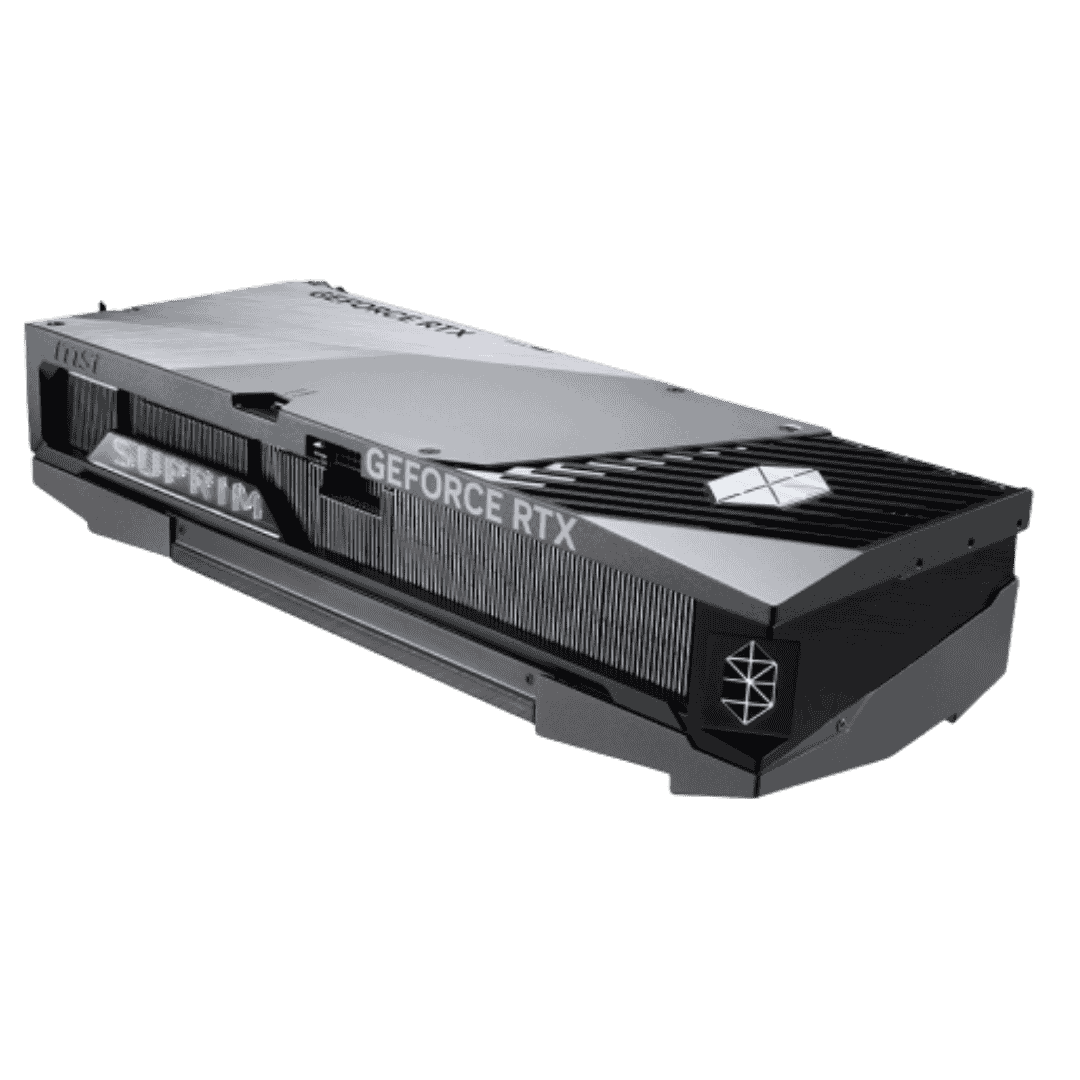

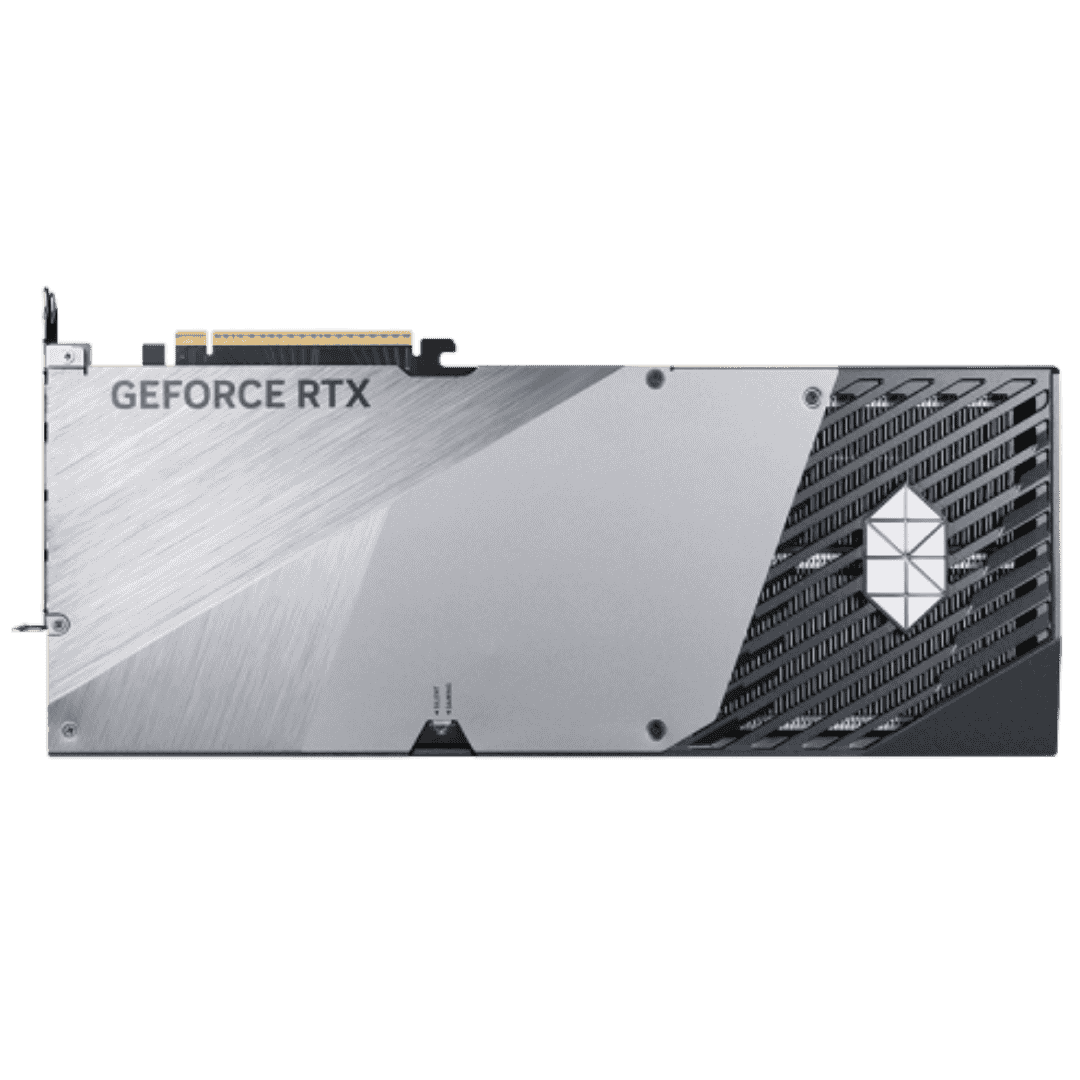

| Name | GeForce RTX™ 5090 32G SUPRIM SOC |
| Model Name | G5090-32SPS |
| Graphics Processing Unit | NVIDIA® GeForce RTX™ 5090 |
| Interface | PCI Express® Gen 5 x16 |
| Core Clocks | Extreme Performance: TBD MHz (MSI Center) Boost: TBD MHz |
| CUDA® CORES | 21760 Units |
| Memory Speed | 28 Gbps |
| Memory | 32GB GDDR7 |
| Memory Bus | 512-bit |
| Output | DisplayPort x 3 (v2.1a) HDMI™ x 1 (Supports 4K@120Hz HDR, 8K@60Hz HDR, and Variable Refresh Rate as specified in HDMI™ 2.1b) |
| HDCP Support | Y |
| Power consumption | Silent mode: TBD W Gaming mode: TBD W |
| Power connectors | 16-pin x 1 |
| Recommended PSU | TBD W |
| Card Dimension (mm) | 359 x 150 x 76 mm |
| Weight (Card / Package) | TBD g / TBD g |
| DirectX Version Support | 12 Ultimate |
| OpenGL Version Support | 4.6 |
| Maximum Displays | 4 |
| G-SYNC® technology | Y |
| Digital Maximum Resolution | 7680 x 4320 |
