✓ CPU: Intel® Gemini Lake J4105
✓ Max Turbo Frequency: 2.4 GHz
✓ Total Cores: 4
✓ WiFi: Yes
✓ TDP: 10W
✓ Memory: LPDDR4 8GB
✓ Processor Graphics: Intel® UHD Graphics 600
✓ SSD: M.2 SATA 256G
✓ Ethernet: 1000Mbps
✓System: Windows 10 / Linux
✓ Size: 124mm * 112mm * 35mm

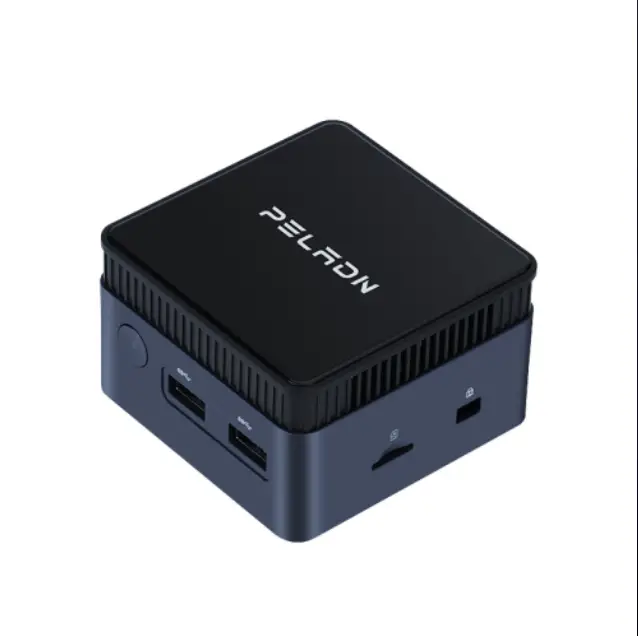

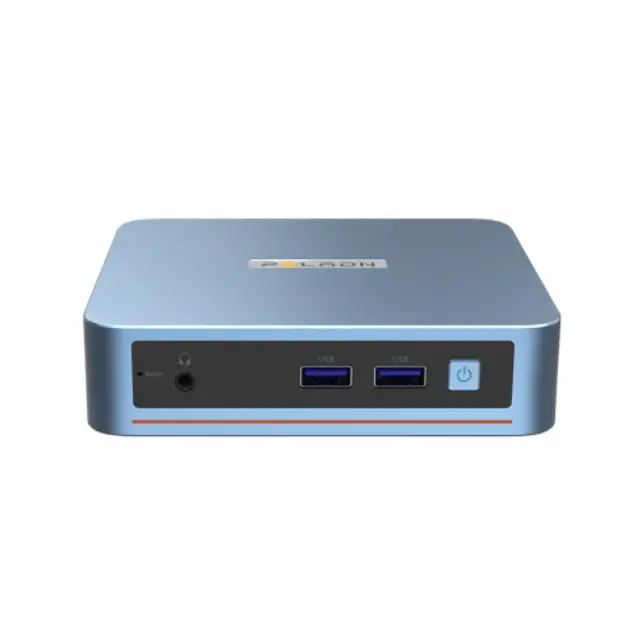

Peladn Mini PC WI Series
| Specification | WI-4 | WI-5 | WI-6 | WI-7 |
|---|---|---|---|---|
| Model | WI-4 | WI-5 | WI-6 | WI-7 |
| CPU | Intel® Gemini Lake J4105 | Intel® Celeron N5105 | Intel® N100 | Intel® N100 |
| MAX Turbo Frequency | 2.4 GHz | 2.90 GHz | 3.4 GHz | 3.4 GHz |
| Total Cores | 4 | 4 | 4 | 4 |
| Total Threads | 4 | 4 | 4 | 4 |
| WiFi | Yes | Yes | 5 | Yes |
| TDP | 10W | 10W | 6W, up to 25W | 6W, up to 25W |
| Memory | LPDDR4 8GB | LPDDR4 8GB | DDR4 8GB | LPDDR5 12GB |
| Processor Graphics | Intel® UHD Graphics 600 | Intel® UHD Graphics 600 | Intel UHD Graphics 750MHz | Intel UHD Graphics 750MHz |
| SSD | M.2 SATA 256G | M.2 SATA 256G | M.2 SATA 256G | M.2 SATA 256G |
| SO DIMM | 2 | 2 | 1 | N/A |
| Ethernet | 1000Mbps | 1000Mbps | 1000Mbps | 1000Mbps |
| Bluetooth | Yes | Yes | Yes | Yes |
| TF Card | N/A | TF * 1 | 1 | N/A |
| USB | USB 3.0 * 4 | USB 3.0 * 4 | USB 3.0 * 2, USB 2.0 * 2 | USB 3.2 * 3 |
| HDMI | HDMI 2.0 * 2 | HDMI 2.0 * 2 | HDMI 2.0 * 2 | HDMI 2.0 * 2 |
| Audio | Jack (HP MIC) | Jack (HP MIC) | Jack (HP MIC) | Jack (HP MIC) |
| Power Adapter | 12V 3A | 12V 2A | 12V 3A | 12V 3A |
| System | Windows 10 / Linux | Windows 11 / Linux | Windows 11 / Linux | Windows 11 / Linux |
| Size | 124mm * 112mm * 35mm | 124mm * 112mm * 42mm | 124mm * 112mm * 35mm | 72mm * 72mm * |
