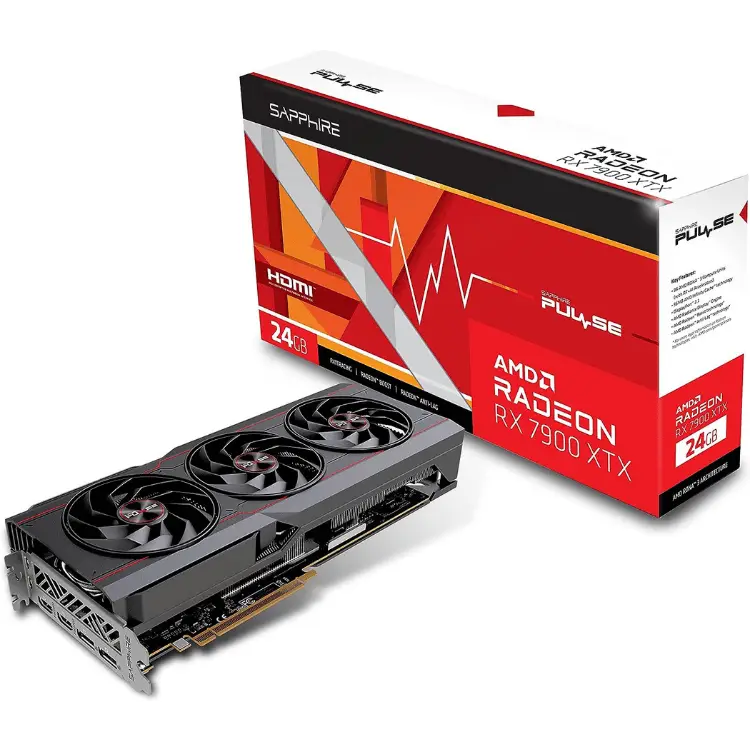

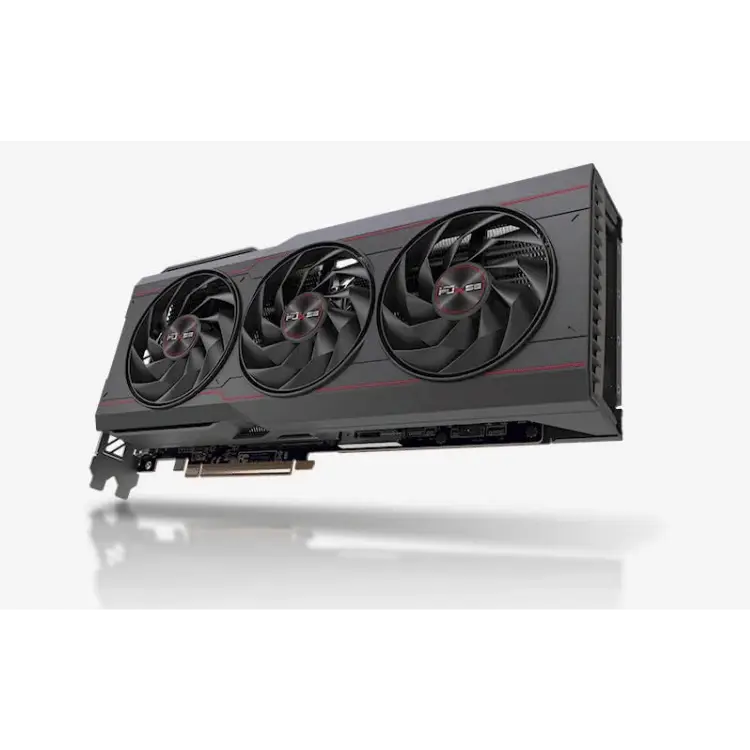

SAPPHIRE Radeon RX 7900 XTX 24GB GDDR6 PCI Express 4.0 x16 ATX Video Card 11322-02-20G

0 out of 5 (0)

Write a review

✓ GPU Architecture: AMD RDNA™ 3

✓ Fabrication Process: 5nm

✓ Engine Clock:

- Boost Clock: Up to 2525 MHz
- Game Clock: Up to 2330 MHz

✓ Stream Processors: 6144

✓ Compute Units: 96 CU (with RT + AI Accelerators)

✓ Ray Accelerators: 96

✓ Infinity Cache: 96MB

✓ Memory Size / Bus: 24GB GDDR6 / 384-bit

✓ Memory Clock: 20 Gbps Effective

✓ Interface: PCI-Express 4.0 x16

✓ Displays: Maximum 4 Displays

✓ Resolution:

- HDMI: 7680×4320
- DisplayPort 2.1: 7680×4320

✓ Output Ports:

- 2x HDMI
- 2x DisplayPort

✓ BIOS Support: UEFI

✓ Game Index: 4K

About It

No additional information available for this product yet.

Get this product for

$1,089.00

Get it in 10 days

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

Inquiry to Buy

Ships 2-4 weeks after payment. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

Description Specifications Download Reviews (0)

Description

Specifications

Manufacturer :Graphics Card

Specification	Details
GPU Architecture	AMD RDNA™ 3
Fabrication Process	5nm
Engine Clock	Boost Clock: Up to 2525 MHz Game Clock: Up to 2330 MHz
Stream Processors	6144
Compute Units	96 CU (with RT + AI Accelerators)
Ray Accelerators	96
Infinity Cache	96MB
Memory Size / Bus	24GB GDDR6 / 384-bit
Memory Clock	20 Gbps Effective
Interface	PCI-Express 4.0 x16
Displays	Maximum 4 Displays
Resolution	HDMI: 7680×4320 DisplayPort 2.1: 7680×4320
Output Ports	2x HDMI 2x DisplayPort
BIOS Support	UEFI
Game Index	4K
Cooling System	Tri-X Cooling Technology with 3 Fans
Power Consumption	370W Total Board Power
Power Connectors	3 x 8-pin Power Connector
Minimum Power Supply	800W
Form Factor	2.7 slot, ATX
Dimensions	313mm (L) x 133.75mm (W) x 52.67mm (H)
Supported OS	Linux®, Windows® 10, Windows® 11 (64-bit)
Display Outputs	HDMI, DisplayPort 2.1
PCIe Version	PCI Express 4.0
Cooling Features	Optimized Composite Heatpipe Angular Velocity Fan Blade Dual-Ball Bearing Fans Intelligent & Precision Fan Control Metal Backplate
Bundled Accessories	Graphics Card Supporter
AMD Smart Technologies	AMD Noise Suppression AMD Privacy View AMD FidelityFX™ Super Resolution AMD Link AMD FreeSync™ Technology
Other Features	AMD Software: Adrenalin Edition™ Microsoft® DirectX® 12 Ultimate Support Vulkan® Optimized AMD Radiance Display™ Engine
System Requirements	PCI Express® X16 lane Minimum 8GB system memory (16GB recommended)
