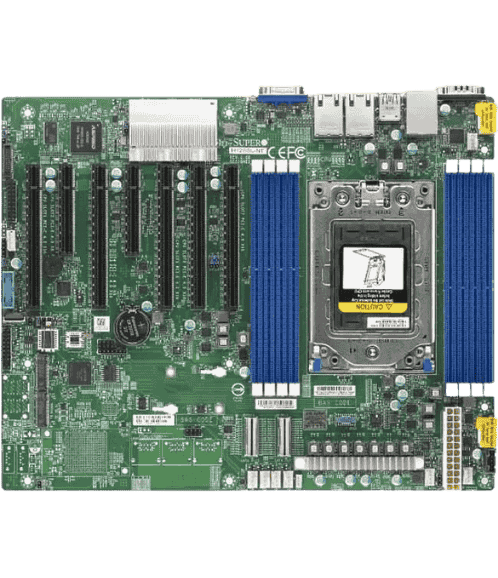

Single AMD EPYC™ 7003/7002 Series Processor (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) 2.2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs 3.Expansion slots: 5 PCI-E 4.0 x16 2 PCI-E 4.0 x8 M.2 Interface: 2 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key 4.2 M.2, 2 SlimSAS x8 (each: 8 SATA3 or 2 NVMe) 5.Dual 10GBase-T LAN via Broadcom BCM57416 6.ASPEED AST2500 BMC graphics 7.Up to 6 USB 3.0 ports (4 rear + 2 via header) 8.7 PWM 4-pin Fans with tachometer status monitoring
Supermicro motherboards support the latest generation Intel and AMD processors, memories and offer the most advanced technologies in the IT field – NVMe, M.2, 10GbE network ports. Thanks to their high scalability and a wide choice of form factors, the boards can fulfill the needs of even the most demanding customers. Supermicro offers the broadest selection of servers designed for industrial use, which is reflected in the overall quality of the boards. Materials that guarantee a long lifespan are used for manufacturing Supermicro motherboards, thanks to which a minimal failure rate is achieved. Supermicro motherboards go through a generational exchange approximately once every seven years, which guarantees long support by the manufacturer. Each Supermicro motherboard also allows free installation of specialized software for basic system monitoring.
| Brand | Supermicro |
|---|---|
| Product Dimensions | 40.64 x 30.48 x 12.7 cm; 1.41 kg |
| Item model number | MBD-H12SSL-NT-B |
| Manufacturer | Supermicro |
| Series | MBD-H12SSL-NT-B |
| Processor Type | AMD E Series |
| Processor Socket | Socket SP3 |
| Memory Technology | DDR4 |
| Maximum Memory Supported | 2 TB |
| Memory Clock Speed | 3200 MHz |
| Graphics Card Interface | PCI Express 4.0 |
| Connectivity Type | Wi-Fi |
| Number of USB 2.0 Ports | 2 |
| Number of HDMI Ports | 1 |
| Number of Ethernet Ports | 2 |
| Item Weight | 1.41 Kilograms |
