Transparent Film
Instock

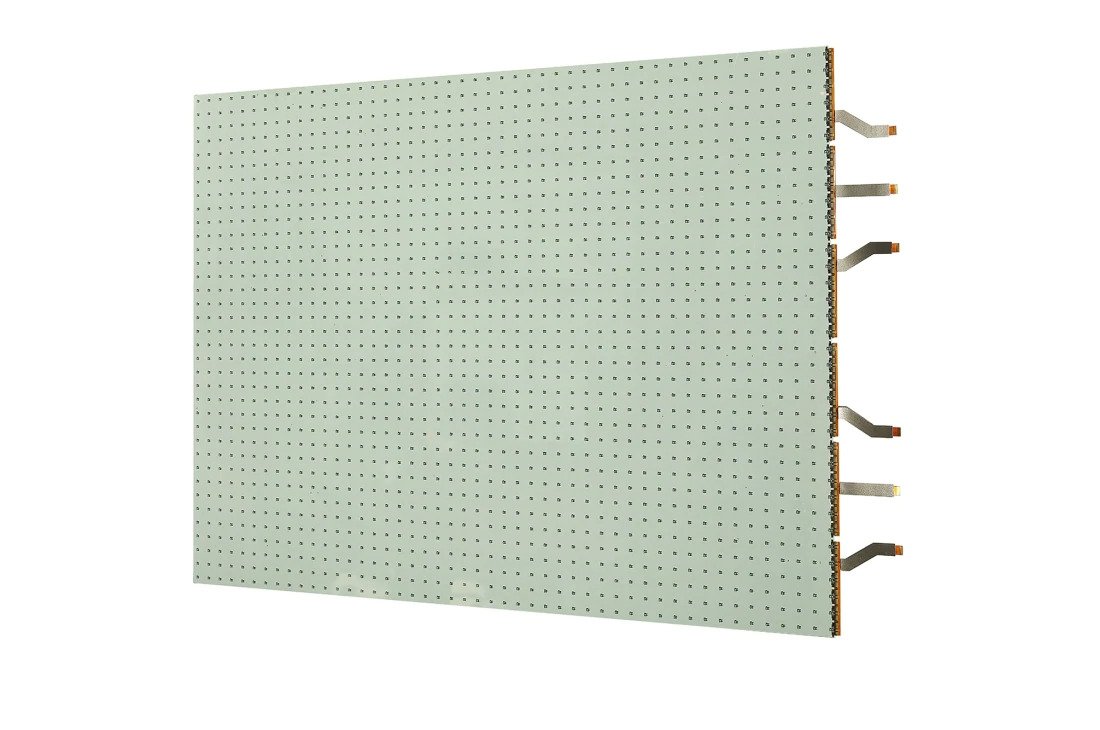

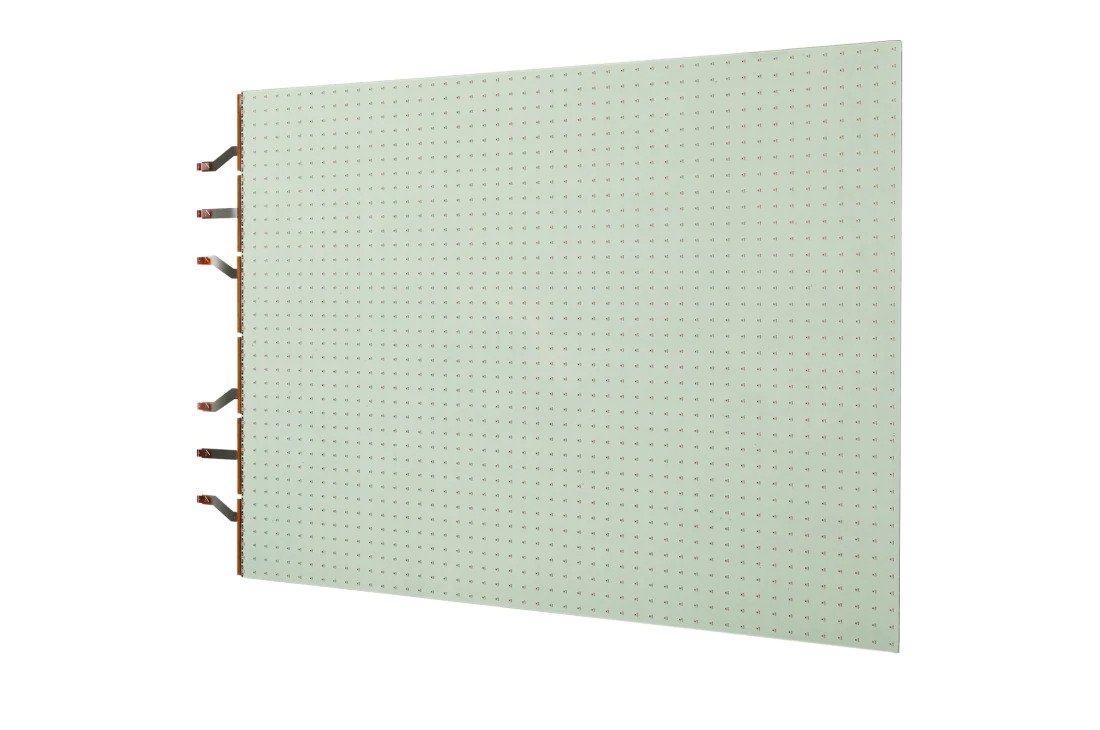

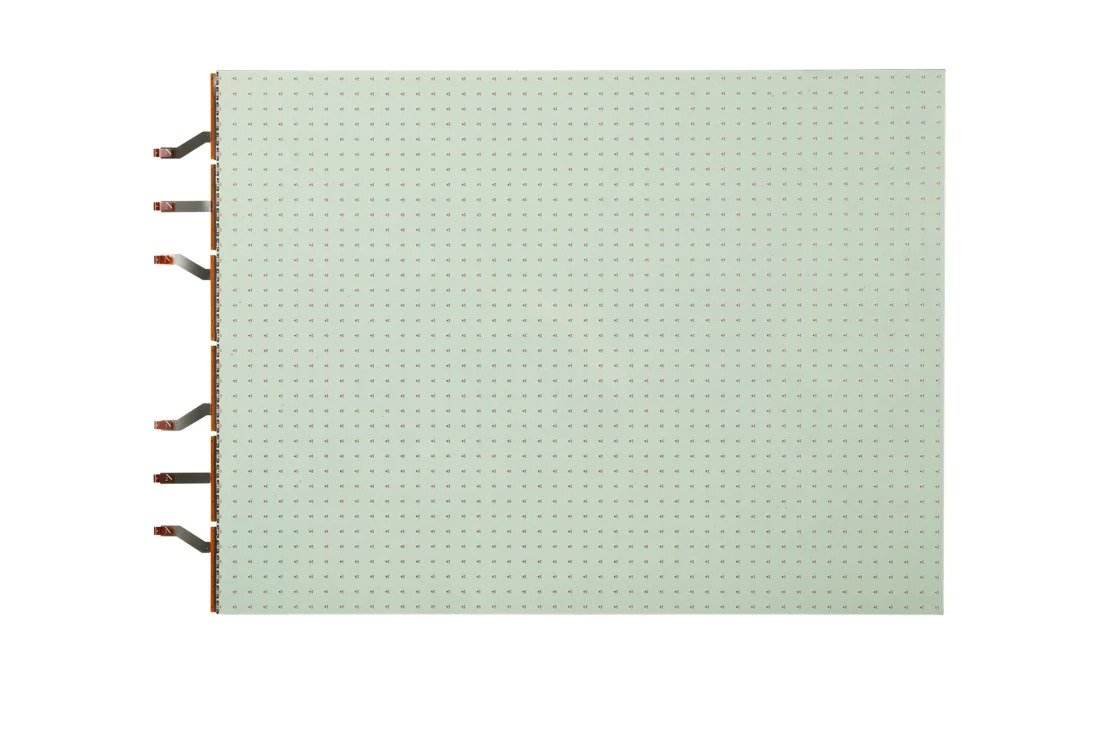

Transparent LED Film(LAT140)

0.0 out of 5 (0)
  • Pitch : 13mm
  • LED Type: R,G,B 3in1 SMD
  • Transmittance: 53%
  • Curvature (concave and convex): 2,000R
  • Self-adhesive Film

About It

No additional information available for this product yet.
vipera
Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.
⭐ Trusted by Customers
What Our Customers Say

Verified reviews from real customers on Trustpilot

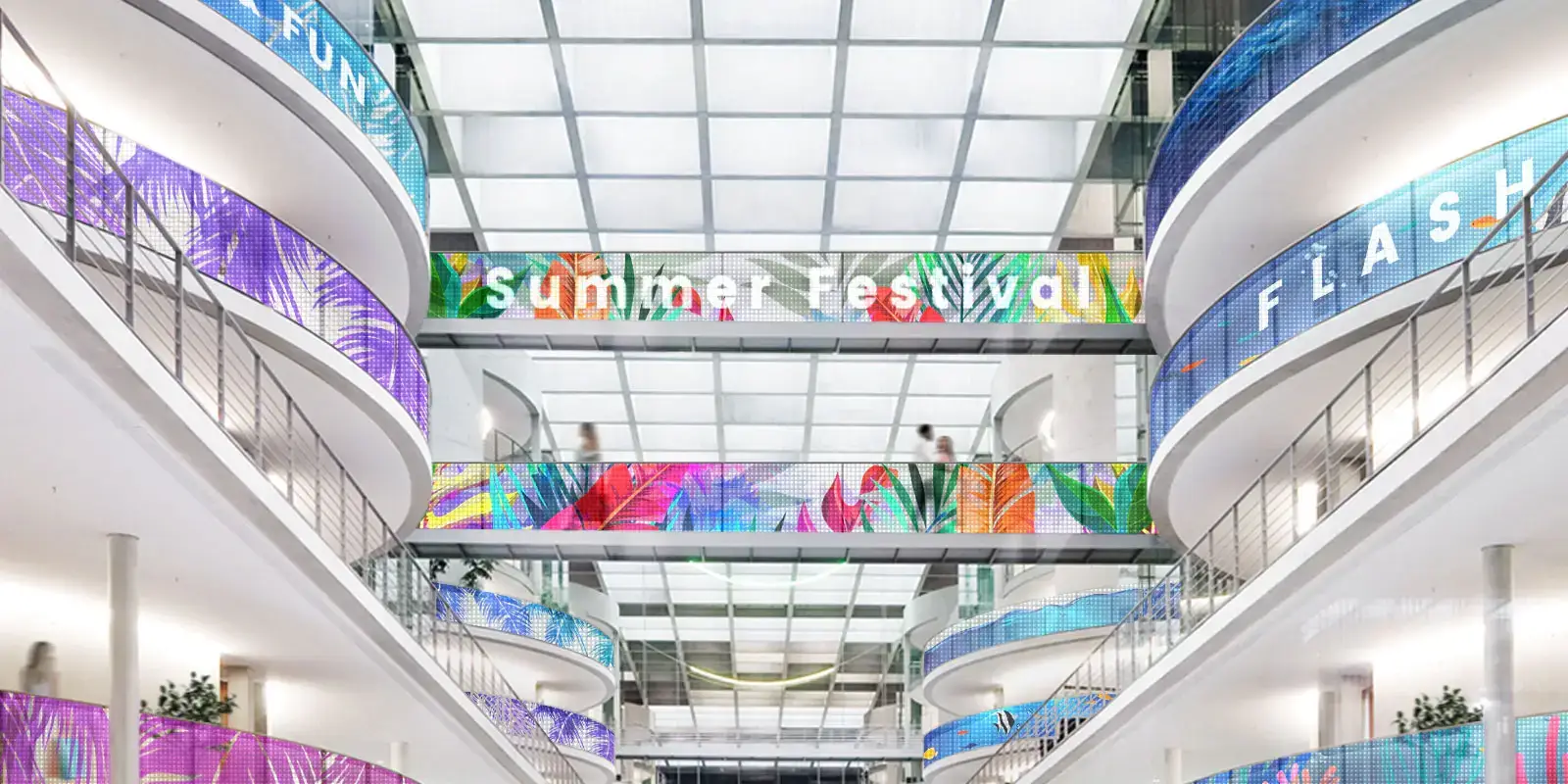

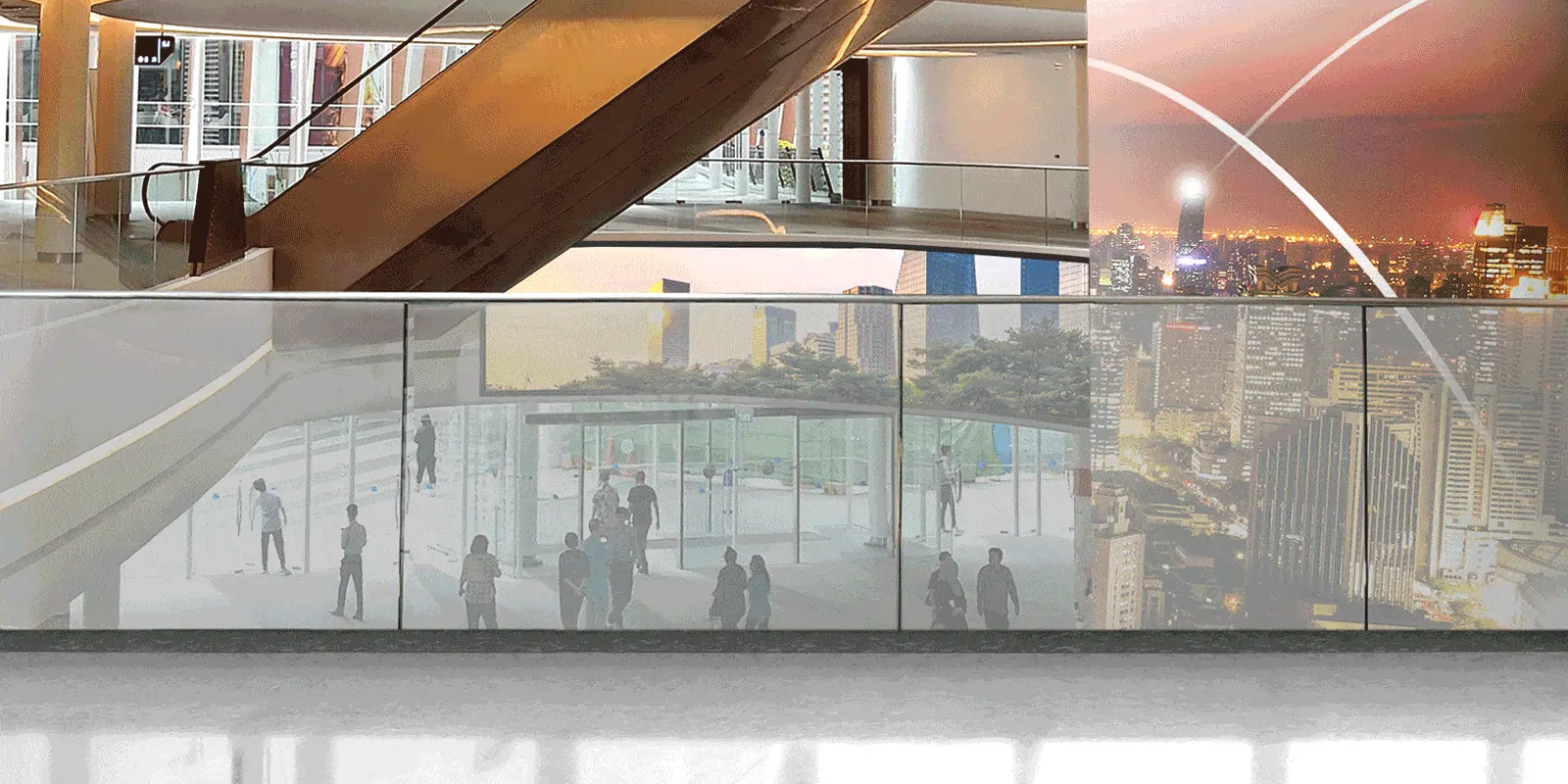

A NATURAL BLEND WITH SPACE
Fitting in with Flats and Curves

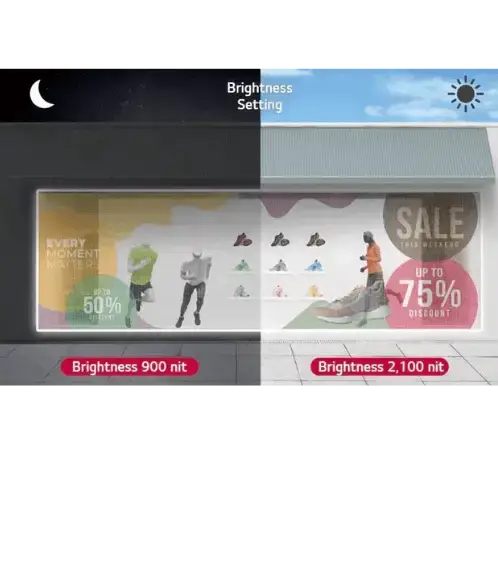

Enhanced Brightness and Control

The LED film with smaller pixel pitch, 14mm, and advanced brightness of up to 2,100cd/m²* attracts the attention of passersby while displaying a wide range of colors. Also, by using Control Manager solution, you can adjust and set brightness by timeline to deliver messages with optimal brightness.

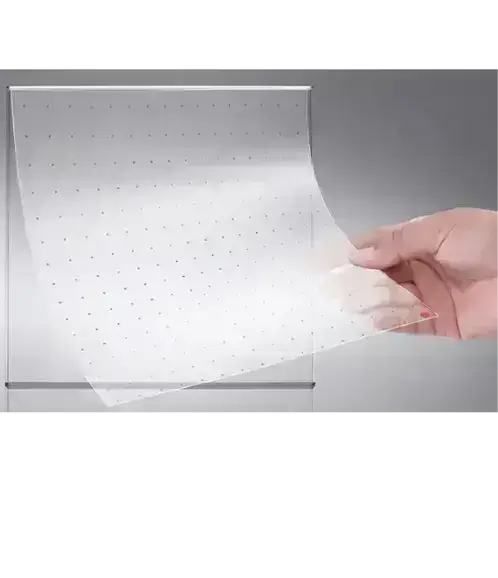

Self-adhesive Film

The LG Transparent LED film is self-adhesive, so it can be easily attached to the surfaces of existing window glass without the need for any complicated construction.

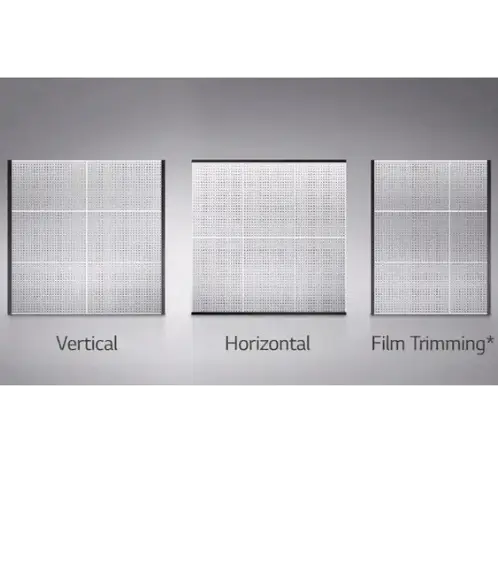

EASY SPACE INNOVATION
Size and layout of the film can be customized to fit into the installation area. It can be expanded by adding more films in a vertical or horizontal way, or cut in parallel with the bezel to meet size requirements.
SMART LED SIGNAGE
    ComponentSpecification
    LED FILM (LAT140GT81)
    Pixel Pitch(mm)13.7±0.2mm
    LED TypeR, G, B 3in1 Color Package (SMD2020)
    Resolution48 x 36
    1ST BEZEL (ACC-14LATB1)
    Dimension (W x H x D)69.4 x 492 x 25mm (Cover)
    Weight0.4Kg
    COMMON BEZEL (ACC-14LATB2)
    Dimension (W x H x D)51.4 x 492 x 25mm (Cover)
    Weight0.3Kg
    UNIT CONTROLLER (LCLG140U)
    Resolution960×540 (1/4 FHD)
    InterfaceInput: LVDS, Output: RJ45 x4EA
    Maximum Transmission Length100m (Cable: CAT5E, CAT6)
    Dimension (W x H x D)293 x 188.7 x 37mm
    Weight1.5Kg
    Temperature SensorYes
    Power Consumption20 W
    SYSTEM CONTROLLER (LCLG002)
    Video (Max. Input Resolution)DP: 1920×1080@60Hz, HDMI: 1920×1080@60Hz, DVI-D: 1920×1080@60Hz
    Interface (Input)HDMI, DP, DVI-D, RS-232C (Phone Jack Type), RJ45 (w/o LED Indicator), IR Receiver (Phone Jack Type), USB 3.0
    POWER (ACC-LATP1)
    Dimension (W x H x D)183 x 86 x 28mm
    Weight769g
    Input100240V, 5060Hz
    Output19.5V/10.8A (210W)
    ColorWhite
    DC output cable14AWG, 1.5m
    TypeL Type
    ONE BOX CONTROLLER (CTAA-140G)
    VideoHDMI: 1920×1080@60Hz
    InputHDMI, RS232C (Phone Jack Type), RJ45, IR Receiver, USB 3.0
    OutputRS232C (Phone Jack Type), RJ45 (2)
    Dimension (W × H × D)333 x 186.8 x 40.1mm
    Weight (Head)1.82 kg
    Temperature Sensor / Light SensorO / O
    TPC (Temporal Peak Luminance Control)Yes
    Power Consumption30 W
    CMS S/WSuperSign CMS
    AccessoryPower cord, IR+Bright Sensor (1.5m), 4P Phone-to-RS232C Gender, ESG, Regulation book, Warranty Card
