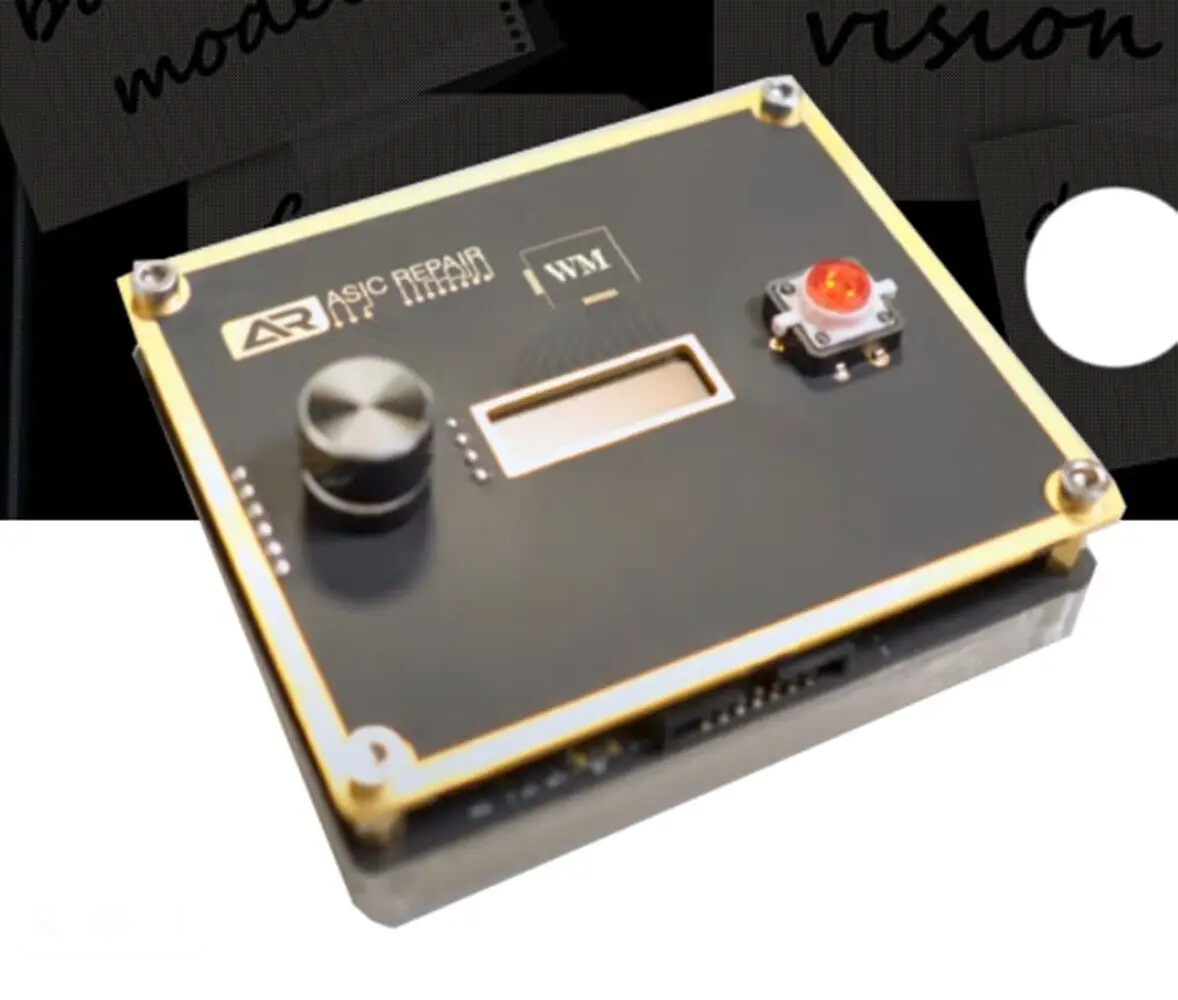

Whatsminer ASIC Repair Diagnostic Tool

0.0 out of 5 (0)

Supports various MicroBT hashboard models
Helps detect and locate faulty chips
Flash EEPROM without removing device
Edit EEPROM settings
Auto-detect hashboard model
Record serial numbers
Saves time and money
Suitable for amateur miners to large operations
2-year replacement warranty

About It

No additional information available for this product yet.

Get this product for

$2,895.00

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

DescriptionSpecificationsDownloadReviews ( 0 )

Description

CHIP

MAP

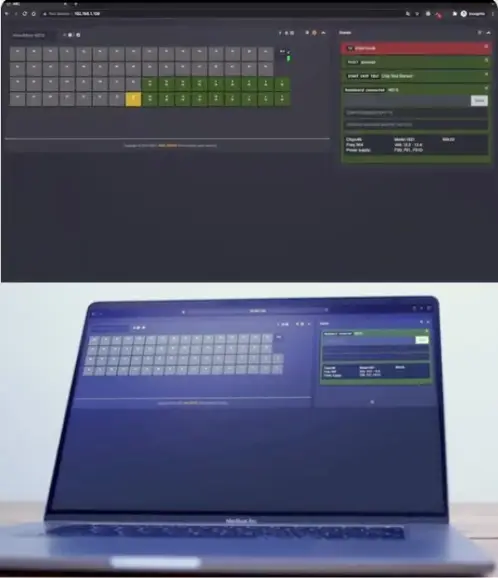

Accurate map of the location of chips on the board.
Hashboard map repeats the location of the chips on the board, which saves time searching for a chip in each iteration. You only have to find the highlighted chip and start measuring!
You do not need to remember the location of the chips or refer to the diagram. The map will show you where the chip you need is located!
If you change 50 chips per day, then this function will save you up to one hour, which means you can repair more boards!

BOARD MODEL

AUTODETECTION

Automatic model detection of the board upon connection.
Checking the integrity of the EEPROM firmware.
Display of the board parameters written to the EEPROM firmware, with the ability to edit.

TESTING THE

RESET LINE

Power on the board, press RESET button, the tester will check if the reset signal comes from the first to the last chip and report the result, and you can take measurements on the board and find the faulty chip.

An active button changes the state of the reset line to a logical one, an inactive button to a logical zero.

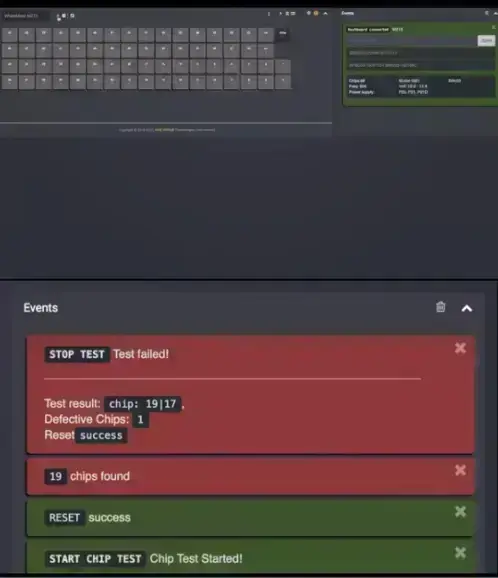

CHIP TESTING WITH RESET

At the beginning of testing, the tester checks the state of the reset line from the first to the last chip and reports the result..

If you select the test with reset option, the reset will occur before each iteration of the polling of the chips and display the counter of successful and unsuccessful resets in the test log.

Feature	Description
Supported Hashboard Models	M30, M30K, M30L, M30S++, M30S+, M30S, M31, M31H, M31L, M31S+, M31S, M31SE, M32, M33, M34S+, M36S, M39, M50, M11, M12, M1S, M20, M20S+, M20S, M21, M21S+, M21S, M29
Faulty Chip Detection	Helps determine and locate faulty chip on the hashboard.
EEPROM Flashing	Flashes EEPROM without removing the device from the shelf.
EEPROM Editing	Allows editing of EEPROM settings.
Auto-detection of Hashboard Model	Automatically detects the hashboard model.
Serial Number Recording	Ability to record your serial number for tracking and warranty purposes.
Time and Cost Savings	Saves time and money, beneficial for both amateur miners and large operations.
Warranty	2-year replacement warranty.
