AI Hardware, Servers

Out of stock

NVIDIA DGX A100 Deep Learning Console System

0.0 out of 5 (0)

GPU: 8x NVIDIA A100 80GB Tensor Cores

GPU Memory: 640GB

Performance Spells: 5 petaFLOPS AI – 10 petaOPS INT8

NVIDIA NVSwitches: 6

Power: 6.5 kW max

CPU’s Power: Dual AMD Rome 7742 – 128 cores – 2.25 GHz (base) – 3.4 GHz (max boost)

Memory Potion: 2 TB

Networking Oracles: 8x NVIDIA ConnectX-7 200Gb/s InfiniBand

2x NVIDIA ConnectX-7 VPI 10/25/50/100/200 Gb/s Ethernet
8x NVIDIA ConnectX-6 VPI 200Gb/s InfiniBand
2x NVIDIA ConnectX-6 VPI 10/25/50/100/200 Gb/s Ethernet

Storage Chambers:

OS: 2x 1.92TB M.2 NVME
Internal: 30TB (8x 3.84 TB) U.2 NVMe

Software Tomes:

Primary: Ubuntu Linux OS
Others: Red Hat, CentOS

Artifact Weight: 271.5 lbs (123.16 kgs)

Guardian Box Weight: 359.7 lbs (163.16 kgs)

Dimensions: Height: 10.4 in – Width: 19.0 in – Length: 35.3 in

Climate Codex: 5ºC to 30ºC (41ºF to 86ºF)

About It

No additional information available for this product yet.

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

Lead time is 4-6 weeks. All sales final, no returns or cancellations. 13% import tax applies to mainland China importers. 1 unit per waybill. We pay all duties and taxes to the Gulf Cooperation Council, North America and European Union (incl. UK). For bulk inquiries, consult a live chat agent or call our toll-free number.

DescriptionSpecificationsDownloadReviews ( 0 )

Description

The Challenge of Scaling Enterprise AI

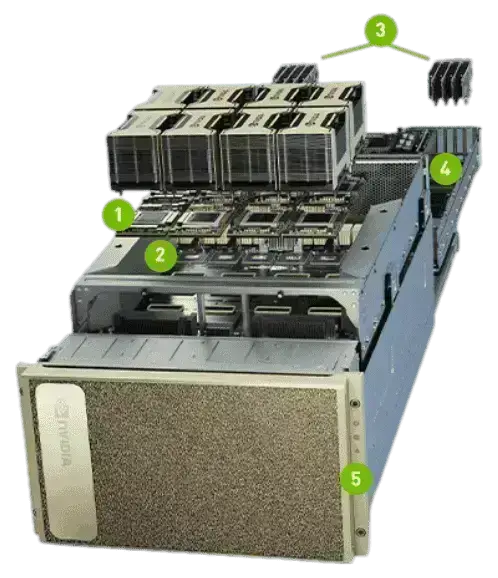

1- 8X NVIDIA A100 GPUS WITH UP TO 640 GB TOTAL GPU MEMORY

12 NVLinks/GPU, 600 GB/s GPU-to-GPU Bi-directonal Bandwidth.

2- 6X NVIDIA NVSWITCHES

4.8 TB/s Bi-directional Bandwidth, 2X More than Previous Generation NVSwitch.

3- 10x MELLANOX CONNECTX-6 200Gb/S NETWORK INTERFACE

500 GB/s Peak Bi-directional Bandwidth.

4- DUAL 64-CORE AMD CPUs AND UP TO 2 TB SYSTEM MEMORY

3.2X More Cores to Power the Most Intensive AI Jobs.

5- Up to 30 TB GEN4 NVME SSD

50GB/s Peak Bandwidth, 2X Faster than Gen3 NVME SSDs.

Manufacturer : Server

Component	NVIDIA DGX A100 640GB System	NVIDIA DGX A100 320GB System
GPU	Qty 8 NVIDIA A100 GPUs Third-generation NVLinks	Qty 8 NVIDIA A100 GPUs Third-generation NVLinks
Total GPU Memory	640 GB	320 GB
NVIDIA NVSwitch	Qty 6 Second generation (2x faster than first generation)	Qty 6 Second generation (2x faster than first generation)
Networking	Up to 10 (Factory ship config) NVIDIA ConnectX-6 or ConnectX-7 InfiniBand/200 Gb/s Ethernet	Up to 9 (Factory ship config) NVIDIA ConnectX-6 or ConnectX-7 IB/200 Gb/s Ethernet (Optional Add-on: Second dual- port 200 Gb/s Ethernet)
CPU	2 AMD Rome, 128 cores total	2 AMD Rome, 128 cores total
System Memory	2 TB (Factory ship config)	1 TB (Factory ship config) (Optional Add-on: 1 TB to get 2 TB max.)
Storage	30 TB (Factory ship config) U.2 NVMe Drives (Optional drive upgrade to 60 TB)	15 TB (Factory ship config) U.2 NVMe Drives (Optional Add-on: 15 TB to get 30 TB max. Optional drive upgrade to 60 TB)

No reviews available.
