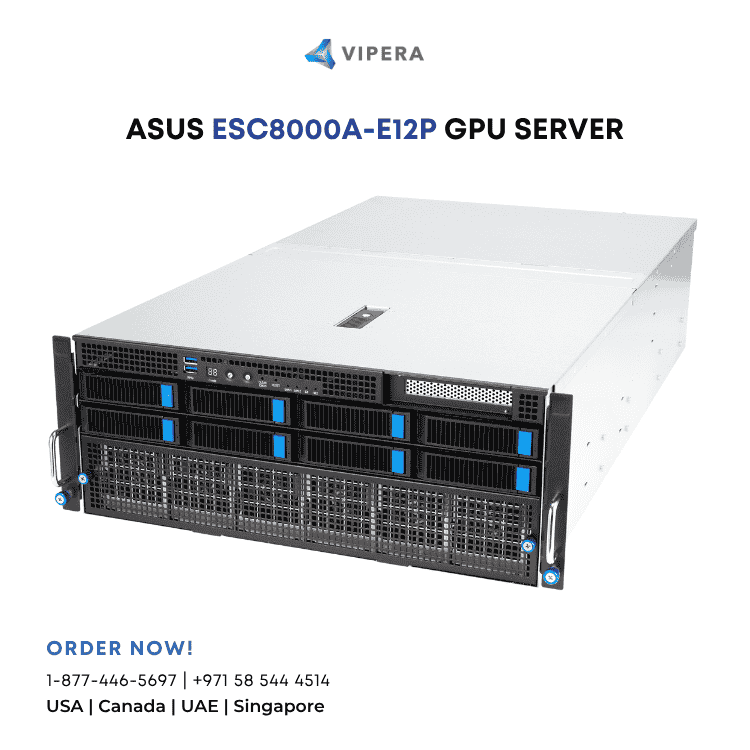

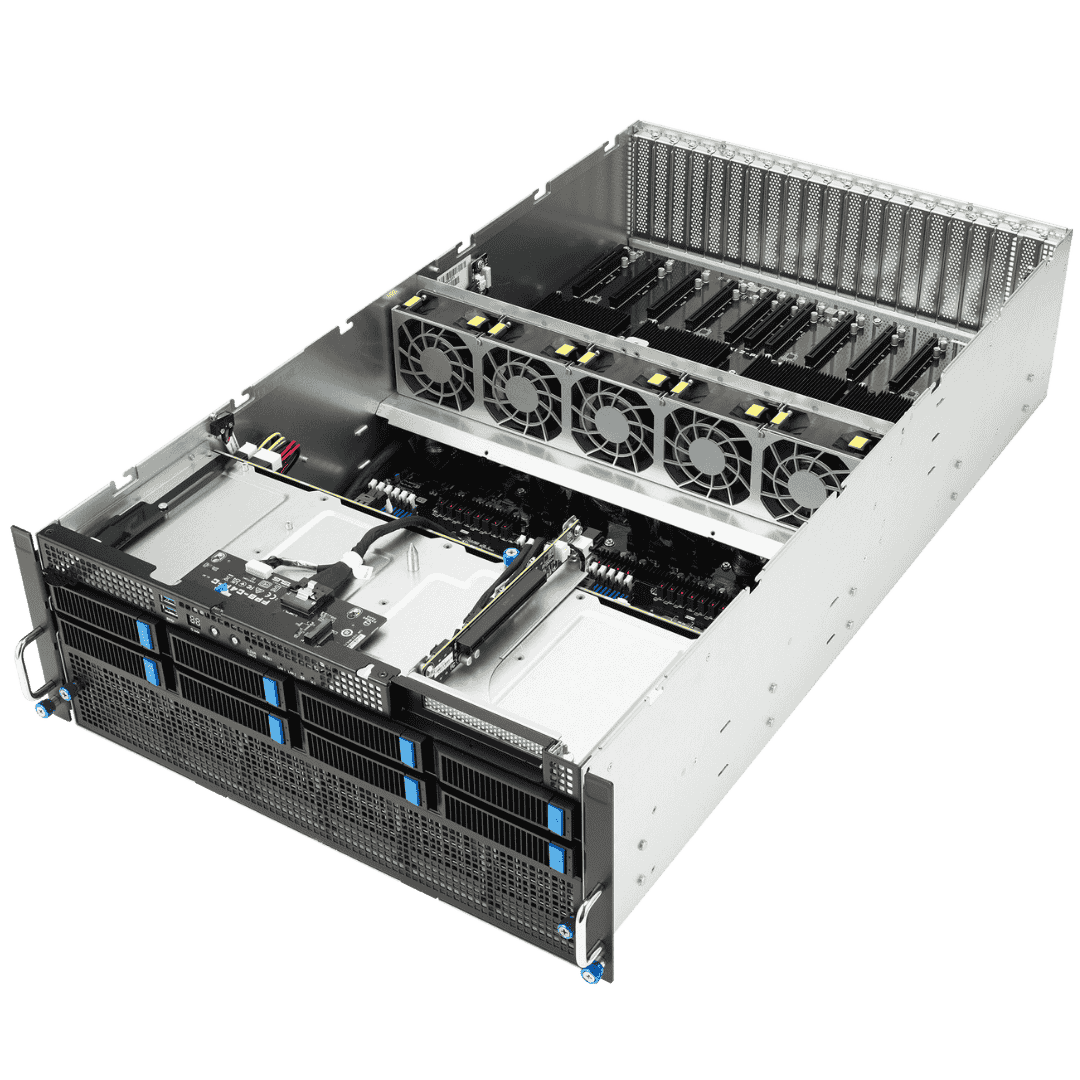

ASUS ESC8000A-E12P Dual AMD EPYC 9004 GPU Server

SKU:ESC8000A-E12P

0 out of 5 (0)

Write a review

AMD EPYC™ 9004 dual-processor 4U GPU server that supports eight dual-slot GPUs, PCIe 5.0 Switch Solution, up to 24 DIMM, 13 PCIe 5.0 slots, eight NVMe, four 3000W Titanium power supplies, OCP 3.0 and ASMB11-iKVM

Key Features

Powerful performance: Powered by AMD EPYC 9004 processors with 128 Zen 4c cores, 12-channel, up to 4800 MHz DDR5 and support for a maximum TDP of up to 400 watts per socket
AI and HPC workloads ready: Up to eight dual-slot active or passive GPUs, NVIDIA NVLink® bridge, and NVIDIA Bluefield DPU support to enable performance scaling
PCIe 5.0 Switch Solution: Empower communication between in-rack hosts and endpoints and provide the higher PCIe switching performance
Power-efficient system design: Independent CPU and GPU airflow tunnels for thermal optimization and support for up to four 3000W Titanium redundant power supplies for uninterrupted operation
Cooling solutions: Enhanced air cooling based on CPU TDP for versatile workloads
Scale-up storage and expansion design: A total of eight bays in combination of Tri-Mode NVMe/SATA/SAS drives on the front panel and 13 PCIe 5.0 slots for higher bandwidth and system upgrade
Flexible networking module design: Optional OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity
Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution

About It

No additional information available for this product yet.

Get this product for

$235,000.00

Get it in 10 days

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

Inquiry to Buy

Description Specifications Download Reviews (0)

Description

Accelerate performance for HPC and AI workloads

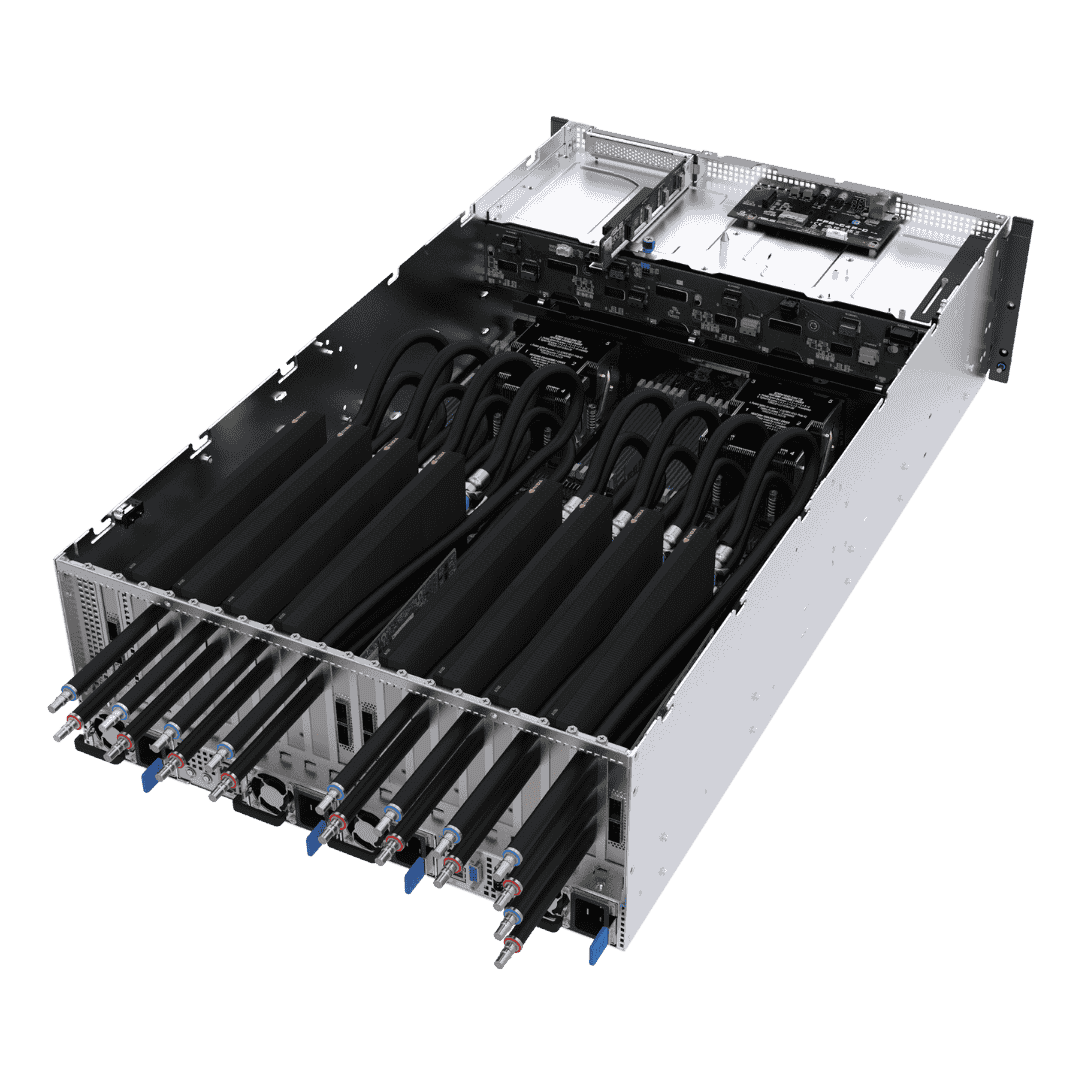

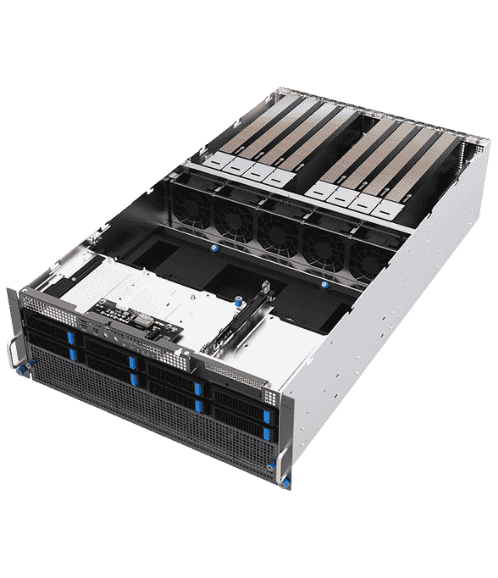

Eight dual-slot GPU compute in 4U

ESC8000A-E12P is an AMD EPYC™ 9004 dual-socket server built for the demands of enterprise AI infrastructure to deliver unprecedented performance with industry-leading GPUs, faster GPU interconnect and higher-bandwidth fabric, and supports up to eight dual-slot active or passive GPUs scalable configuration with a choice of NVIDIA NVLink® Bridge or AMD Infinity Fabric™ Link to enable scaling of performance with increased bandwidth — ready to match your AI and HPC workloads.

Connectivity

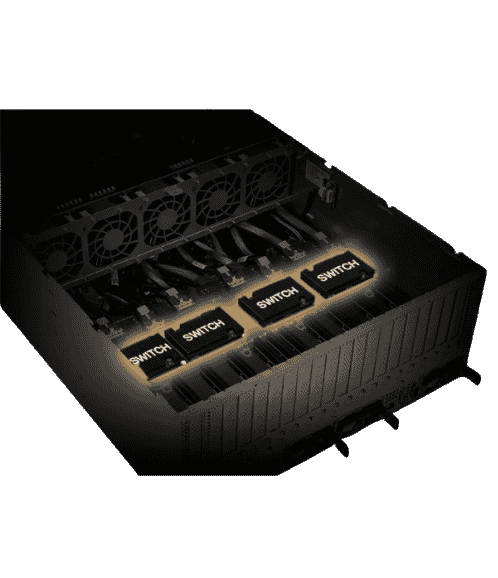

PCIe 5.0 Switch Solution

This server features the latest Broadcom PEX8900 series of switches, supporting up to 1,024 Gbps (128 GBps) of raw bandwidth per port (x16) to create high-availability hyper-scale systems. It uses the PCI Express® 5.0 bus to empower communication between in-rack hosts and endpoints, simplifying connectivity while providing the highest PCIe switching performance available for data center servers, storage and networks. Take advantage of these industry-first features today for the most demanding hyper-converged AI/ML/DL applications.

Specifications

Manufacturer :Server

Processor / System Bus
2x - AMD EPYC 9454 256M/48C/ 2.75 Ghz
Memory
24x - DDR5-4800 RDIMM 64GB
Expansion Slots
8 x PCIe slots (Gen5 x16 link, FH,FL) for dual-slot GPU cards

SKU-1 (5PCIe + 4NVMe)
Front: 1 x PCIe slot (Gen5 x16 link ,LP,HL) for HBA/RAID cards
Rear: 4 x PCIe slot (Gen5 x16 link) for NIC

SKU-2 (4PCIe + 1OCP3.0)(optional)
Front: 1 x PCIe slot (Gen5 x16 link ,LP,HL) for HBA/RAID cards
Rear: 3 x PCIe slot (Gen5 x16 link) for NIC
1 x OCP3.0 NIC socket (Gen5 x16 link)
Storage
2x NVME SSD PM9A3 7.68TB 2.5
4x 20TB 3.5' 7.2K RPM SAS 12Gb/s HDD
1x BroadCom MegaRAID 9560-16i

Networking

X710-AT2 DualPort 10GbE
NVIDIA® ConnectX-7, HHHL card 400Gbps NDR IB

GPUs. 8x NVIDIA®H100 80GB HBM2e PCIe G5

NVLink 12x Nvidia NVLink 2-slot bridge for H100

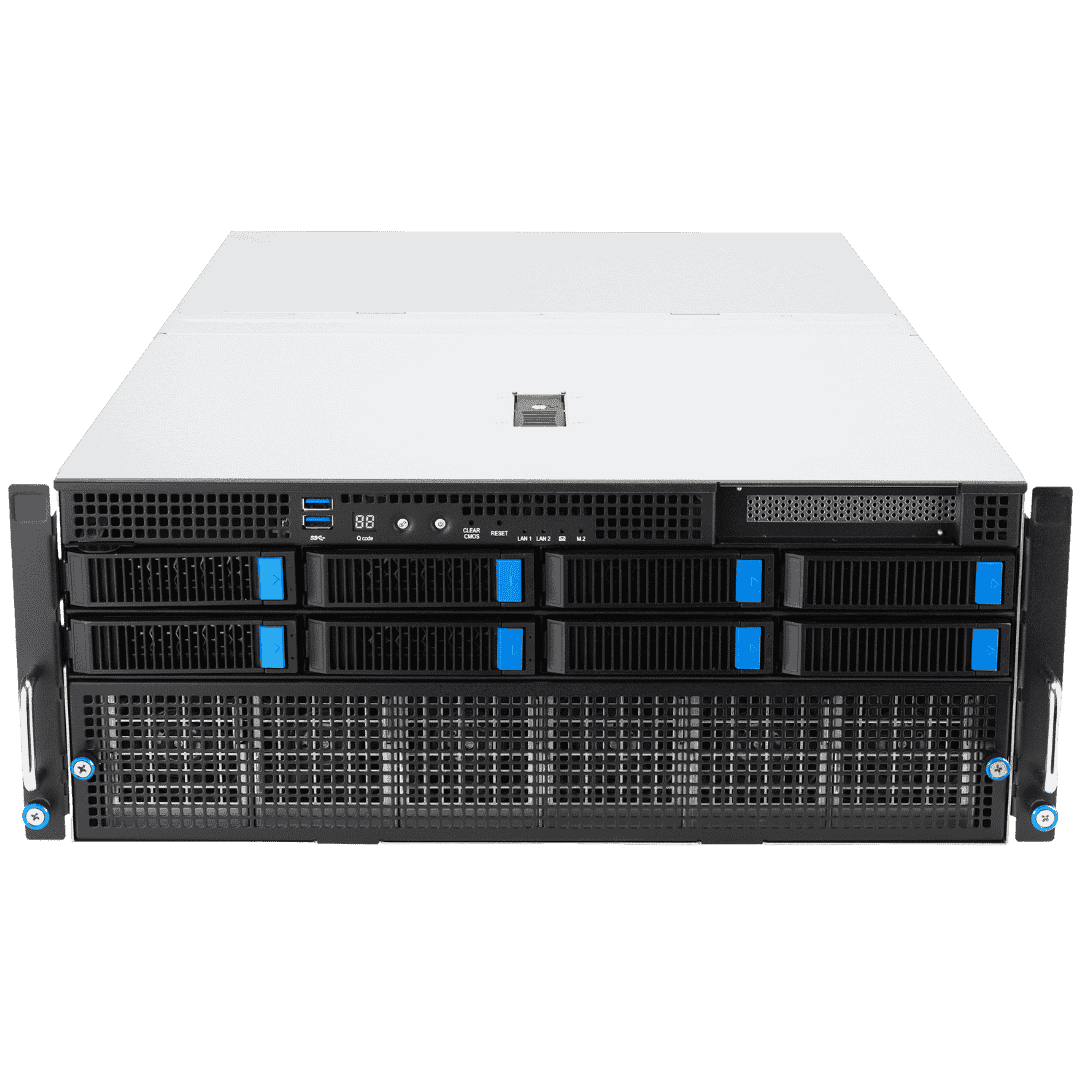

Front I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port

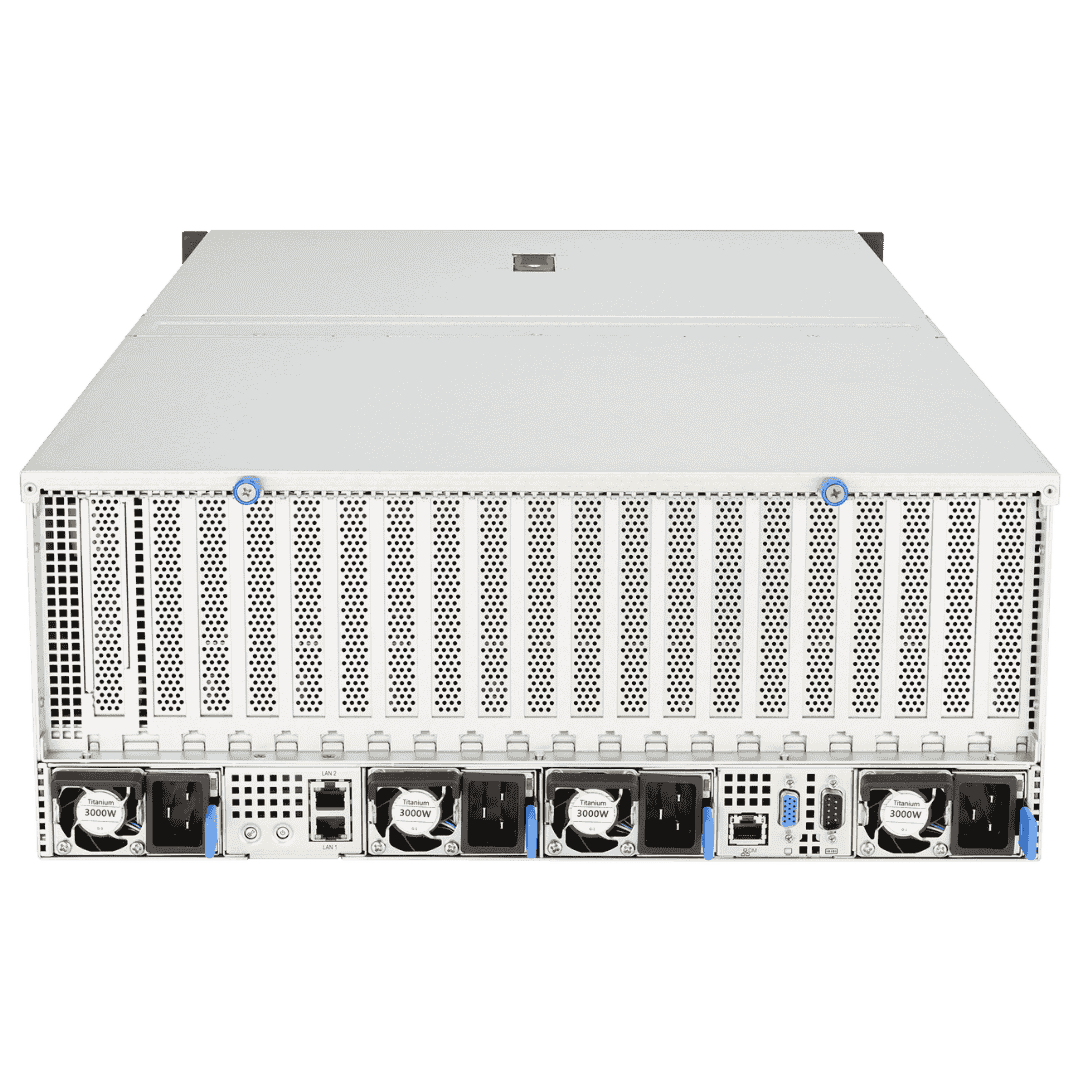

Rear I/O Ports
1 x COM port
2 x 10GbE/1GbE LAN ports (RJ45, build for order)
1 x Management port (RJ45)
Switch/LED
Front :
1 x Power Button w/LED
1 x Location Button w/LED
1 x Message LED
1 x Q-Code/Port 80 LED
1 x Clear CMOS Switch
1 x Reset Switch
1 x M.2 LED
Rear :
1 x Power Button w/LED
1 x Location Button w/LED
Management Solution
ASUS Control Center Enterprise (in-band)
ASMB11-iKVM for (out-of-band/BMC AST2600)
Regulatory Compliance
BSMI, CB, CE, FCC(Class A), RCM
Dimensions
800mm x 440mm x 174.5mm
Form Factor
4U
Weight
Net Weight: 27 Kg
Gross Weight: 52 Kg
Power Supply
4x Titanium (96%) 3000W.
Environment
Operation temperature: 10℃ ~ 35℃
Non operation temperature: -40℃ ~ 70℃
Non operation humidity: 20% ~ 90% ( Non condensing)
