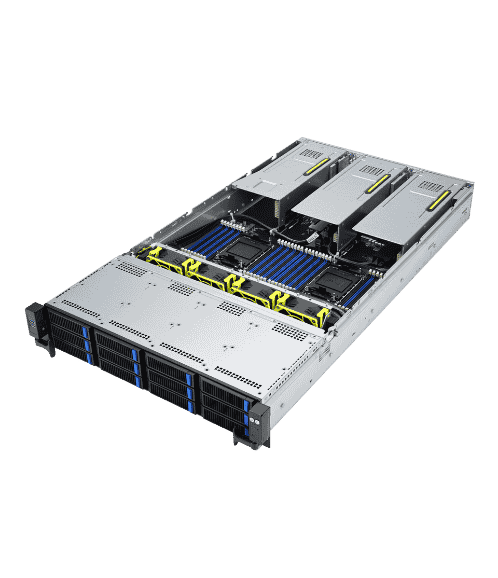

Asus RS720-E11-RS12U Server

SKU:RS720-E11-RS12U

0 out of 5 (0)

Write a review

Powerful performance: Powered by 5th Gen Intel® Xeon® Scalable processors unleash up to 21%-greater general-purpose performance per watt, significantly improving AI inference and training

Scale-up storage and expansion design: Up to 12 all-flash NVMe drives on the front panel, two NVMe in the real panel (optional), and 9 PCIe 5.0 slots for higher bandwidth and system upgrade

Flexible networking module design: Optional two 10 Gbps or four 1 Gbps on-board LAN module, and OCP 3.0 module with PCIe 5.0 slot in rear panel for faster connectivity

Advanced air cooling solution: Features enhanced volume air cooling (EVAC) heatsink for processors with higher TDP

Enhanced IT-infrastructure management: ASUS ASMB11-iKVM remote control with ASPEED AST2600, ASUS Control Center IT management software and hardware-level Root-of-Trust solution

Ready for AI and HPC workloads: GPU SKU supports up to four dual-slot GPUs, including Intel Data Center GPU Flex series and NVIDIA A100

Get this product for

$10,051.22

Get it in 10 days

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

Inquiry to Buy

Description Specifications Download Reviews (0)

Description

Faster storage, graphics and networking capabilities

PCI Express® (PCIe®) 5.0 delivers 32GT/s bandwidth, which is twice the speed of PCIe 4.0, and offers lower power consumption, better land scalability and backwards compatibility. ASUS servers are PCIe 5.0 ready with scalability design to satisfy the increasing workloads for modern data center.

Specifications

Manufacturer :Server

Processor / System Bus
Intel®Xeon® Processor Scalable Family
Generation
4th/5th
Core Logic
Intel® C741 Chipset
Memory
Total slot:
32 (8-channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB
Memory type:
4th: 4800 MHz (1DPC)/ 4400 MHz (2DPC)
5th: 5600/4800 MHz (1DPC)/4400(2DPC)
Memory size:
64GB, 32GB, 16GB RDIMM
256GB, 128GB RDIMM 3DS

* Refer to www.asus.com/support for more information
Expansion Slots
Up to 9 slots (with OCP)
• 6 x PCIe Gen5 x8 link or 3 x PCIe Gen5 x16 link (FHFL)
• 1 x PCIe Gen5 x16 link (FHFL)
• 1 x PCIe Gen5 x16 (LP)
• 1 x OCP 3.0

Up to 9 slots (without OCP)
• 8 x PCIe Gen5 x8 link or 4 x PCIe Gen5 x16 link (FHFL)
• 1 x PCIe Gen5 x16 (LP)
Storage
Configuration #1 (Non-GPU support)
Front Bays:
12 x 3.5”/2.5" hot-swap drive bays
8 x NVMe/SAS*/SATA + 4 NVMe/SATA

Rear Bays (Optional):
2 x 2.5" hot-swap drive bays
2 x NVMe/SATA

Configuration #2 (GPU support)
12 x 3.5”/2.5" hot-swap drive bays
8 x NVMe/SAS*/SATA + 4 NVMe/SATA

*HBA/RAID card is required to support SAS hard drives
Drive Bays
12 x 3.5”/2.5" hot-swap bay
2 x M.2 slot
System Fan
4
Networking
Configuration #1 (Non-GPU support)
1 x Mgmt LAN
4 x1Gbe(Intel I350-AM4) RJ45 port (optional) or 2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)

Configuration #2 (GPU support)
1 x Mgmt LAN
2 x 10Gbe(Intel X710-AT2) RJ45 port (optional)
Graphic
Aspeed AST2600 64MB
Front I/O Ports
2 x USB 3.2 Gen1 ports
Rear I/O Ports
2 x USB 3.2 Gen1 ports
1 x VGA port
1 x RJ-45 Management LAN port
2 x 10G or 4 x 1G RJ-45 GbE LAN port (optional)
Switch/LED
Front Switch/LED:
1 x Power Switch (w/ LED)
1 x Location Switch (w/ LED)
Dimensions
840mm x 447mm x 88mm
Form Factor
2U
Weight
26.855kg
Power Supply
Configuration #1 (Non-GPU support)
1+1 Redundant AC:
2600W/1600W 80 PLUS Titanium Power Supply
2000W/1600W 80 PLUS Platinum Power Supply

Configuration #2 (GPU support)
1+1 Redundant AC:
2600W 80 PLUS Titanium Power Supply
2000W 80 PLUS Platinum Power Supply
CPU Heatsink/ Cooler
Configuration #1 (Non-GPU support)
2U Standard Heatsink

Configuration #2 (GPU support)
1U Standard Heatsink
1U EVAC Heatsink
