AI Hardware, Servers

Instock

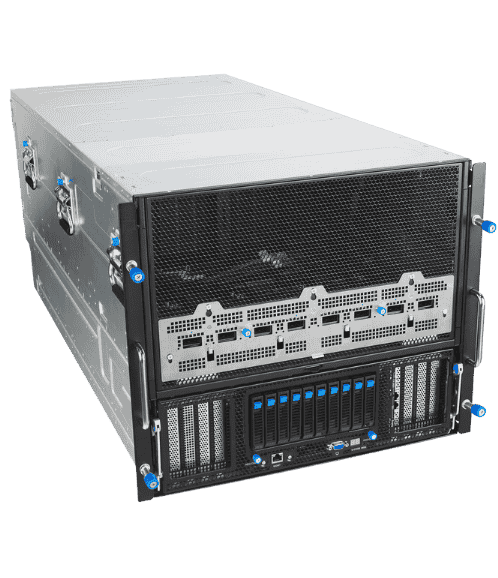

ASUS XA NB3I-E12 GPU Server

SKU:XA NB3I-E12

0.0 out of 5 (0)

Key Features

Powered by dual Intel® Xeon® 6700P processors, supporting a 350W TDP
Seamless GPU-to-GPU interconnect via NVIDIA® NVLink™, providing 1800GB/s bandwidth for optimized scalability
Embedded 8pcs CX8 InfiniBand on GPU, supports XDR/800G per SXM
Modular design with minimal cable usage, enhancing assembly speed and thermal efficiency
Integration of advanced NVIDIA technologies, leveraging the full capabilities of NVIDIA GPUs,
NVIDIA BlueField®-3 DPUs, NVIDIA® NVLink™, NVSwitch, and networking
Exceptional power efficiency, supported by 5+5 80 PLUS® Titanium power supplies

About It

No additional information available for this product yet.

Get this product for

$440,000

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

This is a preorder, Lead time 6 weeks. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

DescriptionSpecificationsDownloadReviews ( 0 )

Description

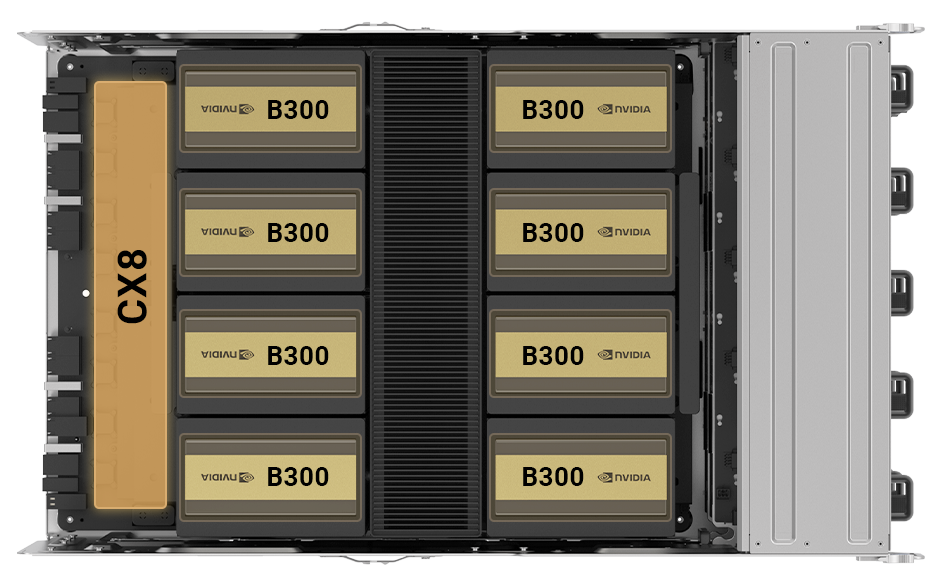

Embedded CX8 Supports XDR/800G per SXM

Ultra-fast, low-latency networking, right on the GPU

The GPU comes with 8 integrated CX8 InfiniBand ports, supporting up to 800G/s networking. This native integration delivers ultra-low latency and high-bandwidth connectivity, eliminating the need for additional NICs, simplifying system design, reducing cabling complexity, and optimizing both power consumption and space efficiency.

Next-Level 8-GPU Server for Enterprise / CSP heavy AI workloads

NVIDIA HGX™ B300 8-GPU server

Equipped with NVIDIA Blackwell HGX B300 8-GPU and dual Intel® Xeon® 6 Scalable processors, ASUS XA NB3I-E12 is designed for heavy AI workloads with 8 embedded CX8 InfiniBand on GPU, 5 expansion PCIe slots, 32 DIMM, 10 NVMe, and dual 10Gb LAN. It transforms data into intelligence for efficient real-world automation and is ideal for large enterprises and cloud service providers running large language models (LLMs), research institutions and universities performing scientific computing, as well as financial and automotive sectors focused on AI model training and inference.

Manufacturer : Server

Processor / System Bus
2 x Socket
6th Intel® Xeon® Processor Scalable Family (Up to 350W)
Memory
Total Slots:
32 (8 channel per CPU, 16 DIMM per CPU)
Capacity:
Maximum up to 4TB per CPU socket
Memory Type:
DDR5 6400 RDIMM/ 3DS RDIMM (2DPC)
Memory Size:
128GB, 96GB, 64GB
* Refer to support page for more information
Expansion Slots
SKU1: 4 x PCIe Gen5 slots
[PCIe Switch directly]
-4 x PCIe Gen5 x16 link
SKU2: 5 x PCIe Gen5 slots
[PCIe Switch directly]
-4 x PCIe Gen5 x16 link
-1 x PCIe Gen5 x8 link (Raid Only)
*Support PCIe x16 link support DPU
** For Raid card to connect storage
Storage
Optional Kits:
-Broadcom MegaRAID 9540-8i
Networking
2 x 10 Gigabit LAN ports (Intel X710-AT2 Controller)
1 x Management Port
Multi-GPU Support
NVIDIA HGX B300 288GB 8-GPU Baseboard

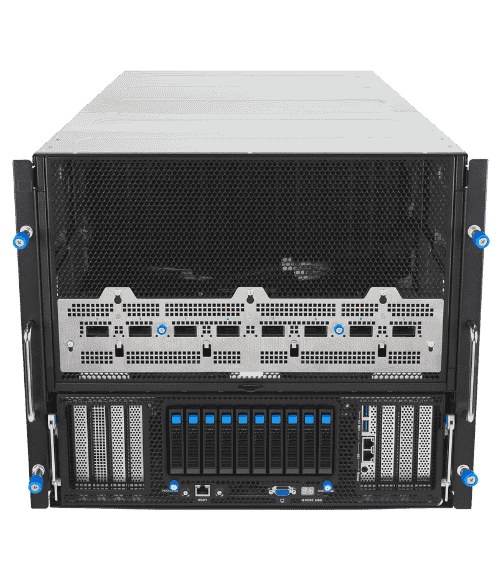

Front I/O Ports
2 x USB 3.2 ports
1 x VGA port
2 x 10GbE RJ45 LAN port
1 x RJ-45 Mgmt LAN port
Switch/LED
Front :
1 x Power Switch/LED
1 x Location Switch/LED
1 x Message LED
1 x Port80 LED (Q-Code)
LAN 1-2 LED (on NIC module)
OS Support
Please find the latest OS support from https://servers.asus.com/support/os
Management Solution
ASUS Control Center
On-Board ASMB12-iKVM
Regulatory Compliance
CB, CE, FCC, BSMI
Dimensions
945mm * 447mm * 394.5 mm
Form Factor
9U
Weight
Net Weight kg (CPU, DRAM & HDD not included): 120kg
Gross Weight kg(CPU, DRAM & HDD not included,
Packing include): 150kg
Power Supply
5+5 3200W 80 PLUS Titanium Power Supply
Environment
Operation
temperature: 10℃ ~ 35℃
Non
operation temperature: -40℃ ~ 70℃
Non
operation humidity: 20% ~ 90% ( Non condensing)
