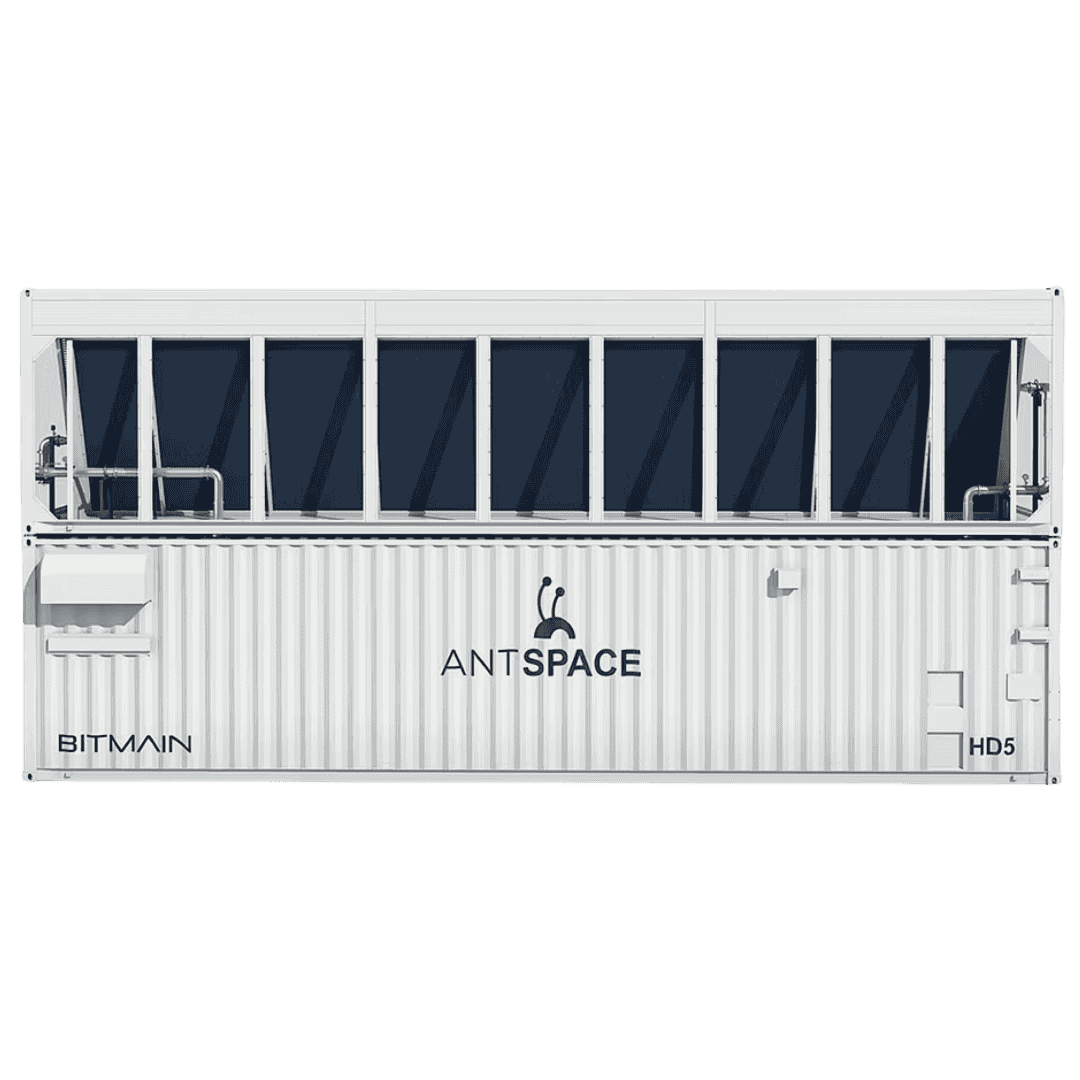

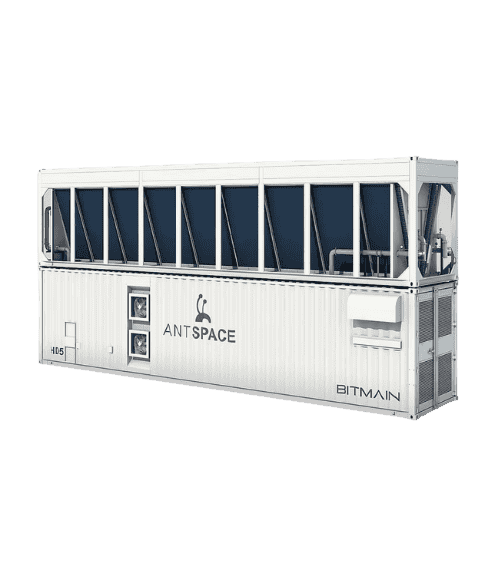

ANTSPACE HD5 is a high-efficiency, modular mining container built to support up to 308 units of Antminer S19 Hyd, Antminer S21 Hyd and Antminer S23 Hyd. Designed for powerful scalability, the container features an integrated dry-cooling system to ensure optimal performance. With a standalone power consumption of approximately 1500 kW, the ANTSPACE HD5 delivers reliable, large-scale mining operations with efficient thermal management and minimal downtime.
Container Details
Compatible hardware: Antminer S19/S21/S23 Hyd
Hosting Capacity: 308 Units
Standalone Power: 1500 kW
Integrated Cooling: Yes
Cooling Solution: Dry Tower
Certifications: CE/UL
Condition: New
This is a preorder. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.
ANTSPACE HD5 is a high-efficiency, modular mining container built to support up to 308 units of Antminer S19 Hyd, Antminer S21 Hyd and Antminer S23 Hyd. Designed for powerful scalability, the container features an integrated dry-cooling system to ensure optimal performance. With a standalone power consumption of approximately 1500 kW, the ANTSPACE HD5 delivers reliable, large-scale mining operations with efficient thermal management and minimal downtime.
| Product Overview | Value |
| Model | ANTSPACE HD5 |
| Dimensions (l*w*h), mm | 12196*2438*2896 |
| Miner capacity | 308 units -S19 Hyd. & S21 Hyd. Series miner |
| Container certification | CCS/CE/UL |
| Safety certification | NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 ANSI/ISO 12100:2012 IEC 60204 Ed 5.1 2009 |
| Input Voltage and Frequency | 400V±5% 50/60Hz |
| Detailed Characteristics | Value |
| Shipping weight, T | 11 |
| Operating weight, T | 17.2 |
| Main switch of power distribution cabinets, A | 1200×4 |
| Rated current, A | 700×4 |
| Normal power, kW | 1512 |
| Maximum power, kW | 1765 |
| Rated current per Miner, A | 10 |
| Inlet cable | The inlet copper cable has a voltage resistance of 600V or more, and each phase is required to below: L1 single core cable 400kcMil （185mm²）x8 L2 single core cable 400kcMil（185mm²）x8 L3 single core cable 400kcMil （185mm²）x8 N Single-core cable 400kcMil （185mm²）x4 PE single-core cable 400kcMil（185mm²）x4 |
| Connection interface (Dry Cooling tower) | DN100（ISO2852 PN16） |
| Connection interface (Plate heat exchange interface) | DN100（GB/T 9122-2010 PN16） |
| Flow rate 1(1-1), m³/h | 67.2 |
| Flow rate 2(1-2), m³/h | 73.9 |
| Quantity of ANTSPACE powered by one 3750kVA Transformer | 2 |
Notes:
(1-1) Corresponding to 140 miners on one side, the main pump frequency of about 41 Hz.
(1-2) Corresponding to 154 miners on one side, the main pump frequency of about 45 Hz.
| Product Overview | Value |
| Model | EC2-DT Dry Cooler（Container Type） |
| Dimensions (L*W*H)（mm） | 12192*2438*2896 |
| Detailed Characteristics | Value |
| Shipping Weight, T | 12 |
| Operating Weight, T | 13.5 |
| Heat Dissipation Capacity | 1500kW |
| Outlet water temperature @30˚C ambient temperature | 35℃±1˚C |
| Container Certification | CCS |
| Safety Certification | NFPA 79:2021 UL 508A:2018 R8.21 CSA C22.2 No. 14-18 IEC 60204 Ed 5.1 2009 |
| Input Voltage and Frequency | 400V±5% 50/60Hz |
| Operationg Power, kW | ≤80 |
| Connection interface (Container) | DN100（ISO2852 PN16） |
| Connection Interface (Drain Pipe) | DN20（Tapered tube） |
| Noise @25℃, 15m | 75dBA |
| Coolant Usage, m³ | 2.1 |
