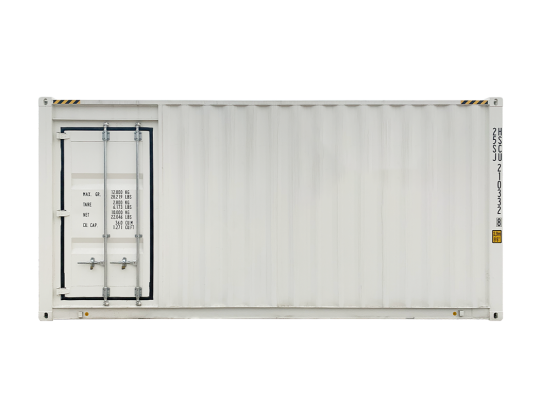

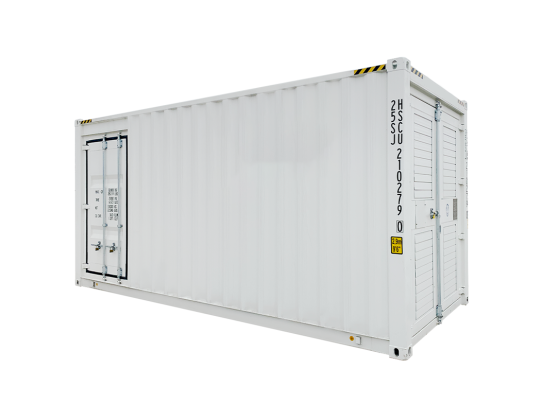

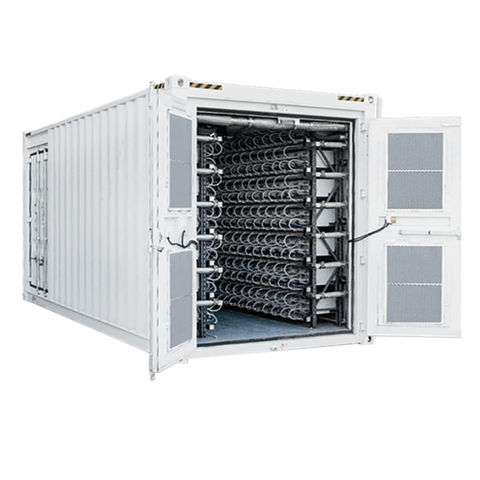

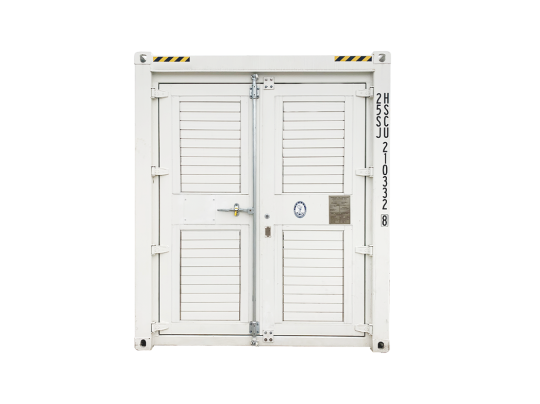

Bitmain Antspace HK3 V6 Liquid Cooling Container

0 out of 5 (0)

Write a review

Built with efficiency and hotter climates in mind, the BITMAIN ANTSPACE HK3 (known as production model designation Antbox H3 Version 6 internally) has a maximum capacity of 210 units of Antminer S19 Pro+ Hydro with total consumption of a little over 1MW. The minimum ASIC quantity to compliment the order will be 210 S19/S21 Hydro units per container. The AntSpace HK3 V6 is sold as a two-piece stackable set– a cooling tower and mining container. Refer to the brochure in the downloads tab for technical details. Unlike Bitmain, we provide DDP (delivery duty paid) service for the ASIC miners, but not the container.

Price for AntSpace does not include door-to-door ocean freight service. Freight costs will be quoted at time of loading as shipping costs vary weekly, and by location. ExWorks / FOB incoterms available. 1 year manufacturer warranty included. S19 Pro+ Hydro warranty void if used outside the AntSpace HK3 V6 system. Coolant not included (can be ordered separately).

You can select the type of cooling tower required and is conforming to your local climate (north america or middle east version). The EC1 DWT is a Dry-Wet cooling tower optimal for hot climates (10c to 40c) and carries all major global certifications. The EC2-DT is a singular dry cooling tower ideal for colder climates (-20c to 26c), and is only classified with Chinese CCSC electrical certification. The EC3 is a Plate Heat Exchanger system is designed to reroute and repurpose generated heat only to an external system. Untreated Sea/Lake/River and Tap water can be used ONLY with the Cooling Tower option, and partially with the Heating Plate option. For closed loop portion, or climates where it dips below freezing, coolant is necessary.

Get this product for

Get it in 10 days

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

Inquiry to Buy

Description Specifications Download Reviews (0)

Description

Bitmain's First Liquid Cooling Antbox

Specifications

Manufacturer :Manufacturer

ANTSPACE HK3 V6:

Specification	Details
Product Overview	- Model: ANTSPACE HK3 V6
Dimensions (LWH) (mm)	6058 x 2438 x 2896
Miner Capacity	210 units – S19 Hyd. Series miner
Container Certification	China Classification Society Certification
Safety Certification	- NFPA 79:2021<br> - UL 508A:2018 R8.21<br> - CSA C22.2 No. 14-18<br> - ANSI/ISO 12100:2012<br> - IEC 60204 Ed 5.1 2009
Operating Power (KW)	1047~1050
PUE (Power Usage Effectiveness)	1.022 (Excluding cooling tower)<br> 1.036 (Including cooling tower)
Input Voltage and Frequency	400V ÷ 5% 50/60Hz
Shipping Weight (T)	8 T
Operating Weight (T)	12 T
Main Switch of Power Distribution Cabinets (A)	1200 A
Rated Current (A)	952 A
Standard Power (kW)	1049 kW
Maximum Power (kW)	1050 kW
Rated Current per Miner (A)	10 A
Inlet Cable	- L1 Single-core cable: 600kcmil (300mm²) x 4<br> - L2 Single-core cable: 600kcmil (300mm²) x 4<br> - L3 Single-core cable: 600kcmil (300mm²) x 4<br> - N Single-core cable: 600kcmil (300mm²) x 4<br> - PE Single-core cable: 500kcmil (240mm²) x 2
Connection Interface (Cooling Tower)	DN100 (ISO2852 PN16)
Connection Interface (Plate Heat Exchange Interface)	DN100(GB/T 9119-2010 PN16 DN100)
Flow Rate (m³/h)	>85 m³/h
Quantity of ANTSPACE powered by one 2500kVA Transformer	2

Dry-Wet Towers (DWT-C):

Specification	Details
Product Overview	- Type: Dry-Wet Tower Container Type (DWT-C)
Dimensions (LWH) (mm)	6058 x 2438 x 2896
Heat Dissipation Capacity (kW)	1200 kW
Outlet Temperature @ 28°C Wet Bulb Temp	35°C
Container Certification	China Classification Society Certification
Safety Certification	Same as above
Operating Power (KW)	14~28 kW
Motor Rated Voltage and Frequency	400V ± 5% 50/60Hz
Shipping Weight (T)	7 T
Operating Weight (T)	13 T
Connection Interface (Container)	DN125 (GB/T 9119-2010 PN16 DN125)
Water Resupply Pipe Interface	DN40 (Internal thread)
Drain Pipe Interface	DN65 (Internal thread)
Noise Level @25°C, 16m	70 dBA
Water Consumption (m³/h)	1~1.3 m³/h

Plate Heat Exchanger (PHE):

Specification	Details
Product Overview	- Type: Plate Heat Exchanger (PHE)
Dimensions (LWH) (mm)	775 x 454 x 1090
Material	TI (Titanium)
Shipping Weight (KG)	360 KG
Operating Weight (KG)	440 KG
Connection Interface (Container)	DN100 (GB/T 9119-2010 PN16 DN100)
External circulation supply liquid temp (°C)	0~30°C
External circulation flow rate (m³/h)	33~110 m³/h
Internal circulation flow rate (m³/h)	100 m³/h

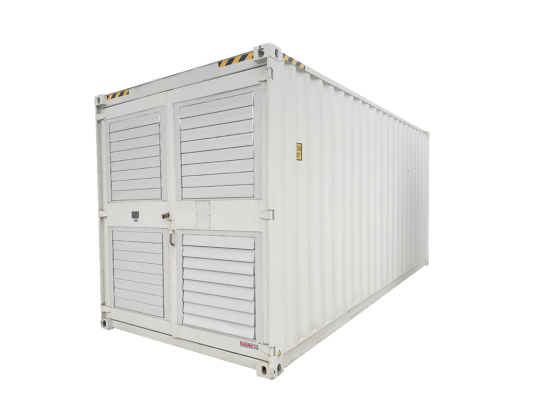

Dry Cooler Towers (DCT-C):

Specification	Details
Product Overview	- Type: Dry Cooler Towers Container Type (DCT-C)
Number	2
Dimensions (LWH) (mm)	6058 x 2438 x 2896
Outlet Temperature @ 30°C ambient temp	35°C
Container Certification	China Classification Society Certification
Operating Power (kW)	20~32 kW
Motor Rated Voltage and Frequency	400V ± 5% 50/60Hz
Shipping Weight (T)	6 T
Connection Interface (Container)	DN125 (GB/T 9119-2010 PN16 DN125)
Water Resupply Pipe Interface	DN10 (Tapered tube)
Noise Level @25°C, 16m	65 dBA
Pipe Materials	304 stainless steel
