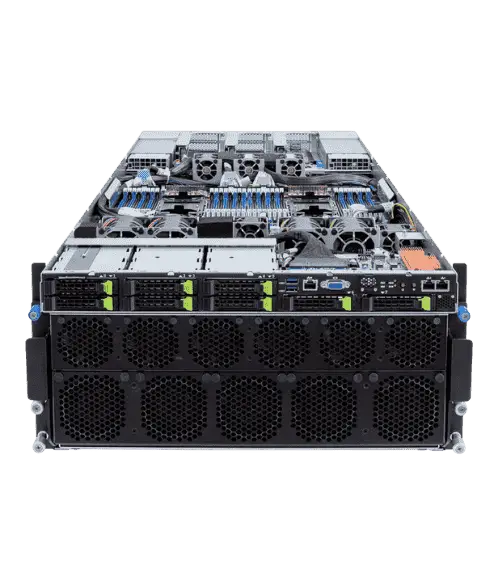

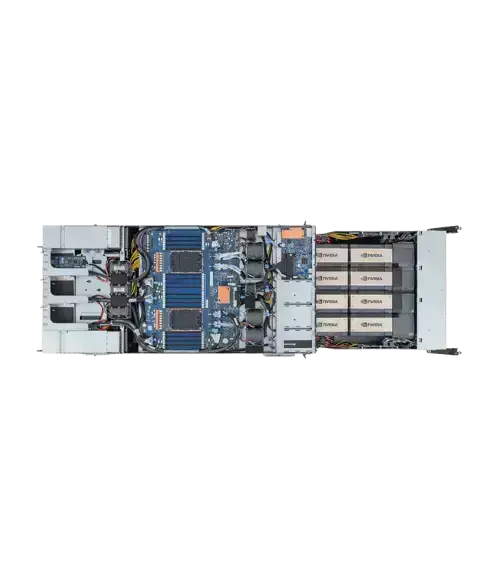

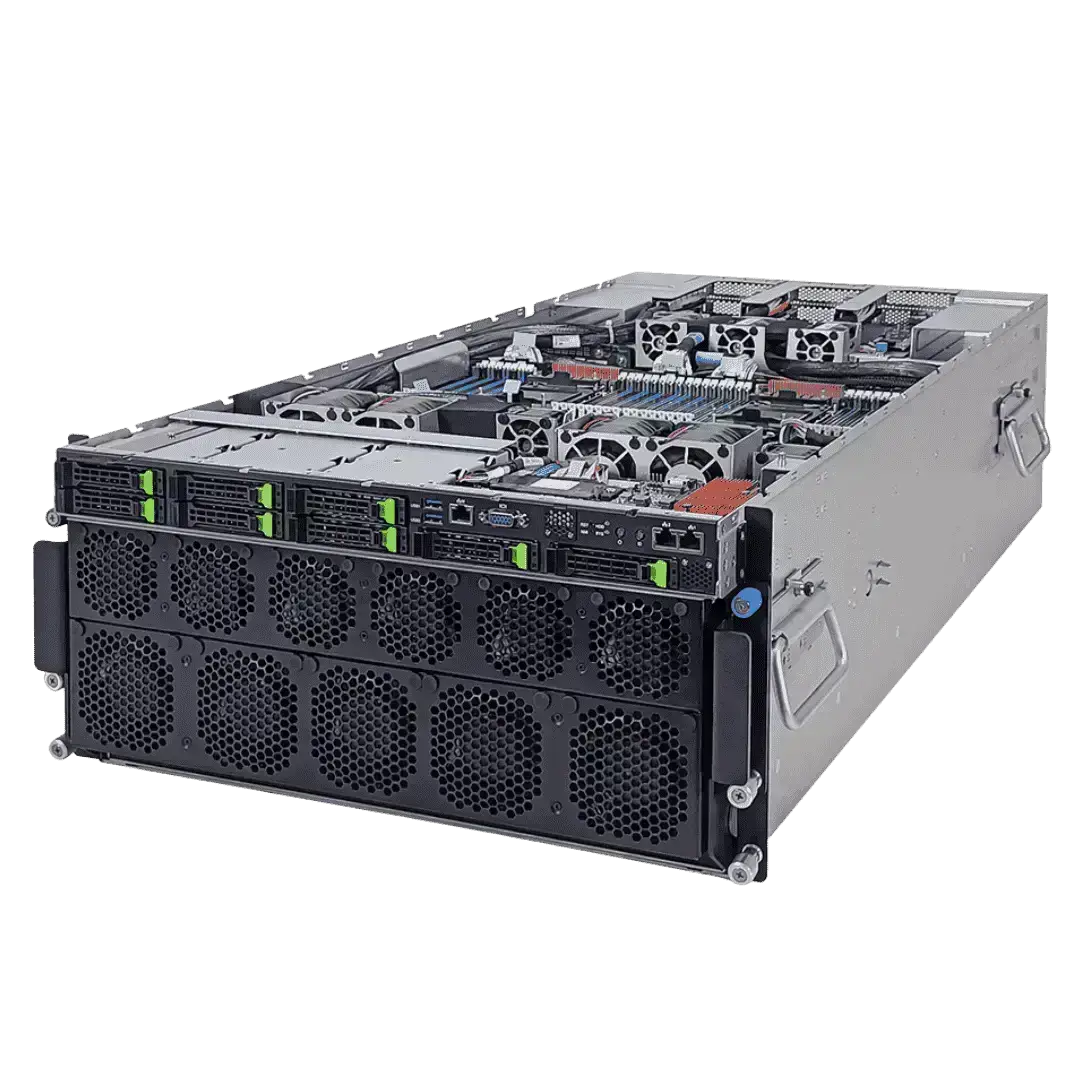

Gigabyte G593-SD0 8x H100 Deep Learning Server 5U

0.0 out of 5 (0)

Base Configuration
✓ Form Factor: INTEL Sapphire Rapid 2P, 5U Rack
✓ Main Board: MSB3-G40
✓ Memory: 32 x Samsung DDR5 64GB 4800
✓ Storage: 8 x Samsung SSD 2.5″ SATA 480GB 6Gb/s PM893 Series
1 x Kioxia U.2 CD8-R (NVMe) 7.68TB PCIe 4.0 U.2
Slots: 13 x Low-Profile Slot (@Gen5 x16)
✓ CPU: 2 x Intel® Xeon® Platinum 8480+ Processor
✓ GPU: NVIDIA H100
✓Network Interface Card (NIC): 1 x ConnectX-6 Dx EN adapter card, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket
1 x NVIDIA ConnectX-7 adapter card, 400Gb/s NDR IB, Single-port OSFP, PCIe 5.0 x16, Crypto and Secure boot, Tall Bracket
✓ Power Supply: Redundant 4+2 x 3000W 80+ Titanium
✓ Integrated Graphics: AST2600 at DC-SCM
✓ Drive Bays: 8 x 2.5” U.2/SATA111
✓ 3-year manufacturer limited replacement parts and/or repair warranty included

Please note there is an approximate 3-4 month lead time upon order. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

About It

No additional information available for this product yet.

Get this product for

$265,000.00

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

⭐ Trusted by Customers

What Our Customers Say

Verified reviews from real customers on Trustpilot

DescriptionSpecificationsDownloadReviews ( 0 )

Superior Performance and Storage

The GIGABYTE G593-SD0-AAX1 is an enterprise-grade server that boasts robust specifications, designed to meet the most demanding computational tasks. At its heart, it has dual Intel Xeon Platinum 8480+ processors, providing an unparalleled level of processing power. To complement this, the server is equipped with 32 modules of Samsung DDR5 64GB 4800 memory, which ensures smooth operation even when handling complex and resource-intensive tasks. The graphic processing is powered by eight NVIDIA H100 GPUs in configuration, making it ideal for high-performance computing and machine learning applications. The server also offers a significant amount of storage space with eight Samsung SSD 2.5" SATA 480GB 6Gb/s PM893 Series and a single Kioxia U.2 CD8-R (NVMe) 7.68TB PCIe 4.0 U.2 drive.

Network and Power Efficiency

In terms of networking, the GIGABYTE G593-SD0-AAX1 server comes with a ConnectX-6 Dx EN adapter card, boasting 100GbE and dual-port QSFP56 capabilities, along with a NVIDIA ConnectX-7 adapter card offering 400Gb/s NDR Infiniband and single-port OSFP. Both cards operate on PCIe 4.0 x16 and PCIe 5.0 x16 respectively, ensuring fast and efficient data transfer rates. The server also takes power efficiency into consideration with its redundant power supply system that comprises of 4+2 units, each capable of providing 3000W and adhering to 80+ Titanium efficiency standards. The integrated graphics are managed by an AST2600 at DC-SCM, and the system offers flexibility with thirteen low-profile slots running at Gen5 x16 and eight 2.5" U.2/SATA1111 drive bays.

Manufacturer : Server

Category	Specification
Form Factor	INTEL Sapphire Rapid 2P, 5U Rack
Main Board	MSB3-G40
Memory	32 x Samsung DDR5 64GB 4800
Storage	8 x Samsung SSD 2.5″ SATA 480GB 6Gb/s PM893 Series, 1 x Kioxia U.2 CD8-R (NVMe) 7.68TB PCIe 4.0 U.2
Slots	13 x Low-Profile Slot (@Gen5 x16)
CPU	2 x Intel® Xeon® Platinum 8480+ Processor
GPU	NVIDIA H100
Network Interface Card (NIC)	1 x ConnectX-6 Dx EN adapter card, 100GbE, Dual-port QSFP56, PCIe 4.0 x16, No Crypto, Tall Bracket, 1 x NVIDIA ConnectX-7 adapter card, 400Gb/s NDR IB , Single-port OSFP, PCIe 5.0 x16, Crypto and Secure boot , Tall Bracket
Power Supply	Redundant 4+2 x 3000W 80+ Titanium
Integrated Graphics	AST2600 at DC-SCM
Drive Bays	8 x 2.5” U.2/SATA1111
