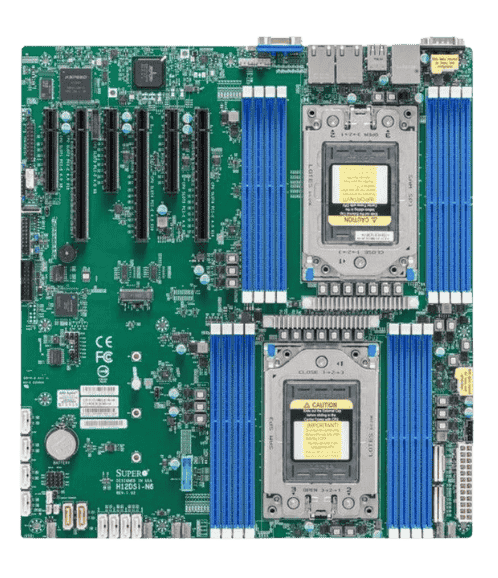

Supermicro MBD-H12DSI-N6-B Motherboard

0.0 out of 5 (0)

Dual AMD EPYC™ 7003/7002 Series Processors 2.4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs 3. Expansion slots: 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots M.2 Interface: 1 PCI-E 4.0 x4 M.2 Form Factor: 2280, 22110 M.2 Key: M-key 4.10 SATA3, 2 SATADOM, 4 NVMe 5.Dual Gigabit LAN ports; 1 dedicated IPMI LAN port.ASPEED AST2600 BMC graphics 7.2 USB 2.0 ports (rear), 4 USB 3.0 ports (2 rear, 2 headers) 8.8x 4-pin PWM Fans & Speed control

About It

No additional information available for this product yet.

Get this product for

$956.80

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

⭐ Trusted by Customers

What Our Customers Say

Verified reviews from real customers on Trustpilot

DescriptionSpecificationsDownloadReviews ( 0 )

Supermicro H12DSi-N6 Server Motherboard

AMD Chipset - Socket SP3 - Extended ATX - EPYC Processor Supported - 4 TB DDR4 SDRAM Maximum RAM - DIMM - 16 x Memory Slots - Gigabit Ethernet - 10 x SATA Interfaces

Manufacturer : Motherboard

Detailed information


Product SKUs

MBD-H12DSi-N6	H12DSi-N6


Physical Stats

Form Factor	EATX
Dimensions	12" x 13.05" (30.5cm x 33.1cm)


Processor/Chipset

CPU	Dual AMD EPYC™ 7003/7002 Series Processors Socket SP3
Cores	Up to 64 Cores
Chipset	System on Chip


System Memory

Memory Capacity	16 DIMM slots Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM 8-channel memory bus For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks
Memory Type	DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

SATA	SATA3 (6 Gbps)
IPMI	Support for Intelligent Platform Management Interface v. 2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support ASPEED AST2600 BMC
Network Controllers	Dual LAN via Broadcom BCM5720L Gigabit Ethernet Controller
VGA	ASPEED AST2600 BMC


Input / Output

SATA	10 SATA3 (6 Gbps) ports
LAN	2x 1GbE LAN ports 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 2.0 ports (rear) 4 USB 3.0 ports (2 rear, 2 headers)
VGA	1 VGA port
Others	1 COM port (rear) 2 SATA DOM power connectors 4 PCI-E 4.0 NVMe x4 internal ports TPM 2.0 header


Expansion Slots

PCI-Express	3 PCI-E 4.0 x16 slots 3 PCI-E 4.0 x8 slots

M.2	Interface: 1 PCI-E 4.0 x4 Form Factor: 2280, 22110 Key: M-key


Chassis ( Optimized for H12DSi-N6)

2U	SCLA25TQC-R609LP SCLA26AC12-R920LP1
3U	SC835TQC-R1K03B



Server(s) (with H12DSi-N6)

Model(s)	AS -2024S-TR AS -2024S-TRT


System BIOS

BIOS Type	AMI 256Mb SPI Flash EEPROM
BIOS Features	Plug and Play (PnP) DMI 2.3 PCI 2.2 ACPI 6.2 USB Keyboard Support SMBIOS 3.1.1


Management

Software	Super Doctor 5 Watch Dog NMI SUM IPMI 2.0, KVM with dedicated LAN
Power Configurations	ACPI Power Management Power-on mode control for AC power loss recovery


PC Health Monitoring

CPU	Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby CPU switching voltage regulator VBAT
FAN	Up to 8 fan status tachometer monitoring Up to 8x 4-pin fan headers Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment CPU Thermal Trip Support Thermal control for 8x Fan connectors I²C Temperature Sensing Logic
LED	CPU / System Overheat LED
Other Features	Chassis Intrusion Detection Chassis Intrusion Header


Operating Environment / Compliance

Environmental Specifications	Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)


Bulk Pack List

	Part Number	Qty	Description
Motherboard	MBD-H12DSi-N6-B	1	H12DSi-N6 Motherboard
I/O Shield	MCP-260-00042-0N	1	STD I/O SHIELD
I/O Cables	CBL-0044L	2	57.5CM SATA FLAT S-S PBF


Retail Pack List

	Part Number	Qty	Description
Motherboard	MBD-H12DSi-N6-O	1	H12DSi-N6 Motherboard


Optional Parts List

	Part Number	Qty	Description
TPM security module	AOM-TPM-9655V	-	TPM 1.2 module with Infineon 9655, RoHS/REACH,PBF;
TPM security module	AOM-TPM-9665V	-	TPM 2.0 module with Infineon 9665, RoHS/REACH,PBF;
