✓ Form Factor: 4U Rackmount
✓ Motherboard: X12DGO-6
✓ Processor: Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors
✓ Max CPU: Up to 40 cores/80 threads per CPU
✓ Memory: 32 DIMM slots, up to 8TB ECC DDR4 3200MT/s
✓ GPU: NVIDIA HGX A100 8-GPU (80GB)
✓ Storage: 6x 2.5″ Hot-swap NVMe/SATA/SAS bays, 2x M.2 NVMe/SATA
✓ Expansion Slots: 10 PCIe Gen 4.0 x16 LP slots
✓ Networking: 2x RJ45 10GbE (Intel X550-AT2)
✓ Power Supply: 4x 2200W redundant Titanium level
✓ Cooling: 4 heavy-duty fans with speed control
✓ Dimensions: 6.9″ x 17.6″ x 35.4″ (174mm x 446mm x 900mm)
✓ Weight: Net: 166 lbs (75.3 kg), Gross: 225 lbs (102.1 kg)
✓ Operating Temperature: 10°C to 35°C
✓ Operating Humidity: 8% to 90% (non-condensing)
✓ Warranty: 3 Years
Ships in 4 weeks after payment. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

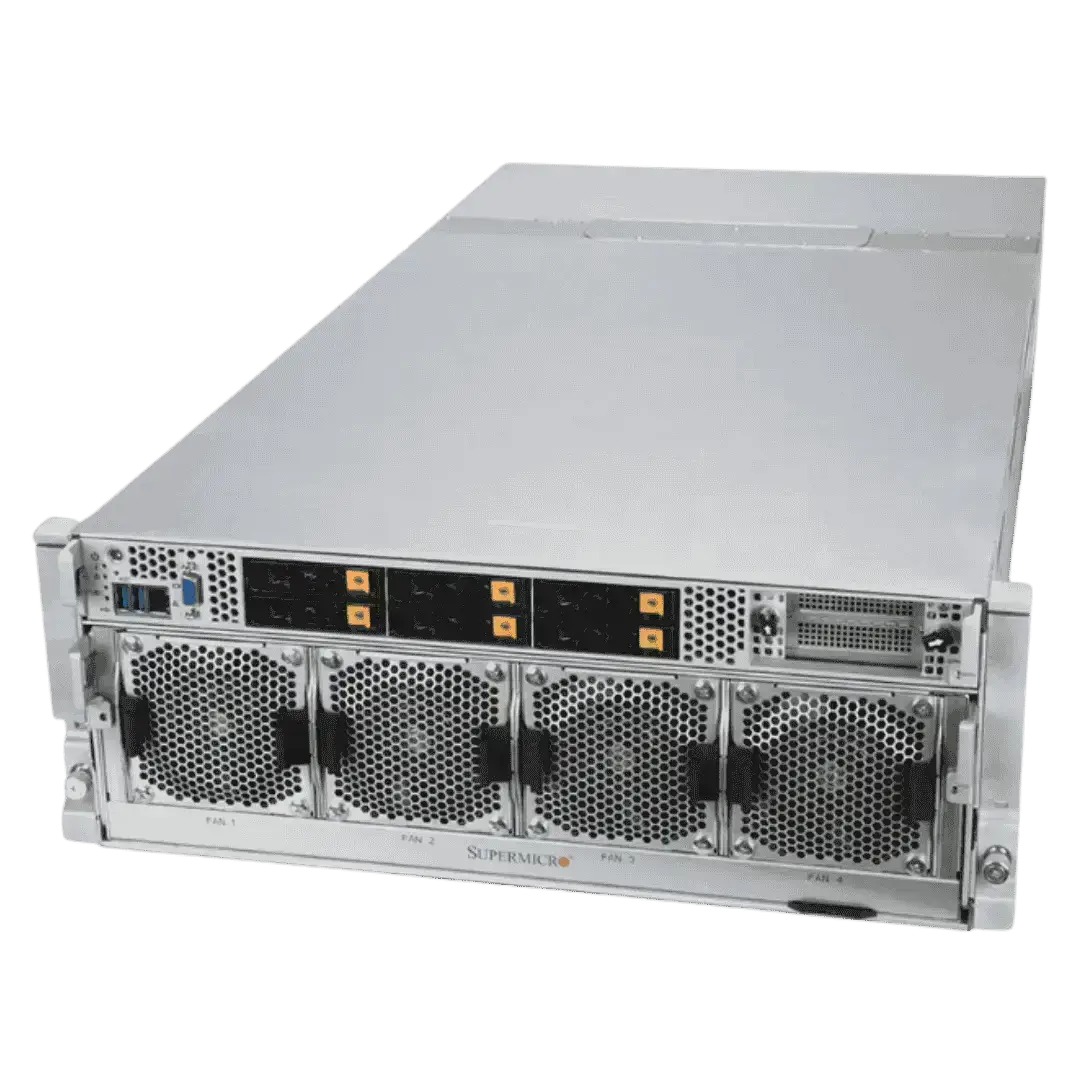

The Supermicro SYS-420GP-TNAR+ stands as a formidable platform, featuring dual Intel Xeon Platinum 8358 CPUs, each equipped with 32 cores, ensuring unparalleled processing power. Complementing this computational prowess are eight NVIDIA A100 GPUs utilizing SXM Baseboard architecture, facilitating advanced AI applications and data-intensive computations. With a staggering 2TB of DDR4 RAM spread across 64GB DIMMs, this system boasts exceptional memory capacity, while its 7.68TB NVMe storage ensures lightning-fast data access. Network capabilities are equally impressive, courtesy of eight CX-6 Single-Port NICs, each capable of handling 200GbE speeds, making it an ideal choice for demanding HPC and AI workloads.
| Category | Specification |
|---|---|
| Form Factor | 4U Rackmount |
| Motherboard | X12DGO-6 |
| Processor | Dual Socket P+ (LGA-4189), 3rd Gen Intel Xeon Scalable processors |
| Max CPU Count | Up to 40 cores/80 threads per CPU |
| Memory | 32 DIMM slots, up to 8TB ECC DDR4 3200MT/s |
| GPU Support | NVIDIA HGX A100 8-GPU (80GB) |
| Storage | 6x 2.5″ Hot-swap NVMe/SATA/SAS drive bays, 2x M.2 NVMe/SATA |
| Expansion Slots | 10 PCIe Gen 4.0 x16 LP slots |
| Networking | 2x RJ45 10GbE with Intel X550-AT2 (optional) |
| Power Supply | 4x 2200W redundant Titanium level |
| Cooling | 4 heavy-duty fans with optimal speed control |
| Dimensions (HxWxD) | 6.9″ x 17.6″ x 35.4″ (174mm x 446mm x 900mm) |
| Weight | Net: 166 lbs (75.3 kg), Gross: 225 lbs (102.1 kg) |
| Operating Temperature | 10°C to 35°C |
| Operating Humidity | 8% to 90% (non-condensing) |
| Power Cable | 2200W redundant Platinum power supply |
