The ANTRACK V2 is a hydro cooling cabinet supporting 4 Antminer hydro miners (AHM) or 2 server miners (RACK483). It features a split design with a heat pump and a 24kW max load, ensuring efficient cooling and high performance.
Product Advantages
Waste Heat Recovery
ANTRACK V2, paired with hydro miners (AHM or RACK483 models), provides up to 80°C heating, making it ideal for:
The ANTRACK V2 is a high-performance hydro cooling cabinet designed for cryptocurrency mining. It supports up to 4 Antminer hydro miners (AHM) or 2 server miners (RACK483), ensuring efficient and stable operation.
The ANTRACK V2 is divided into two sections: the cabinet side and the heat pump side.

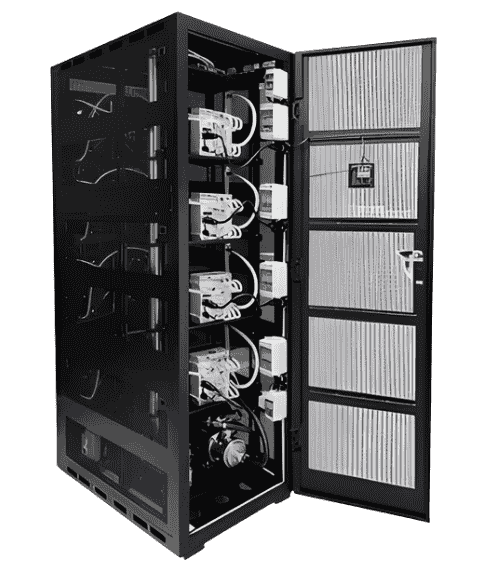

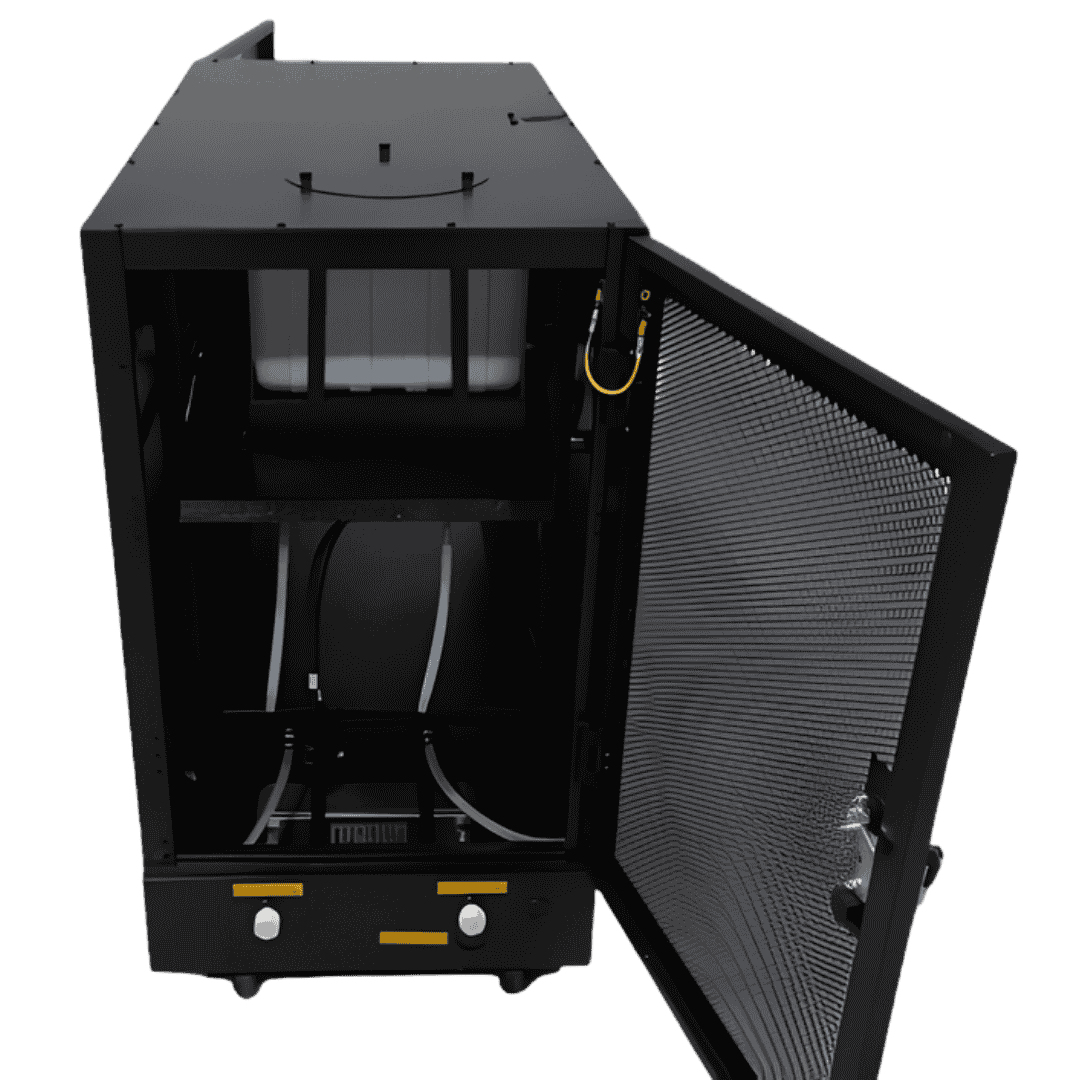

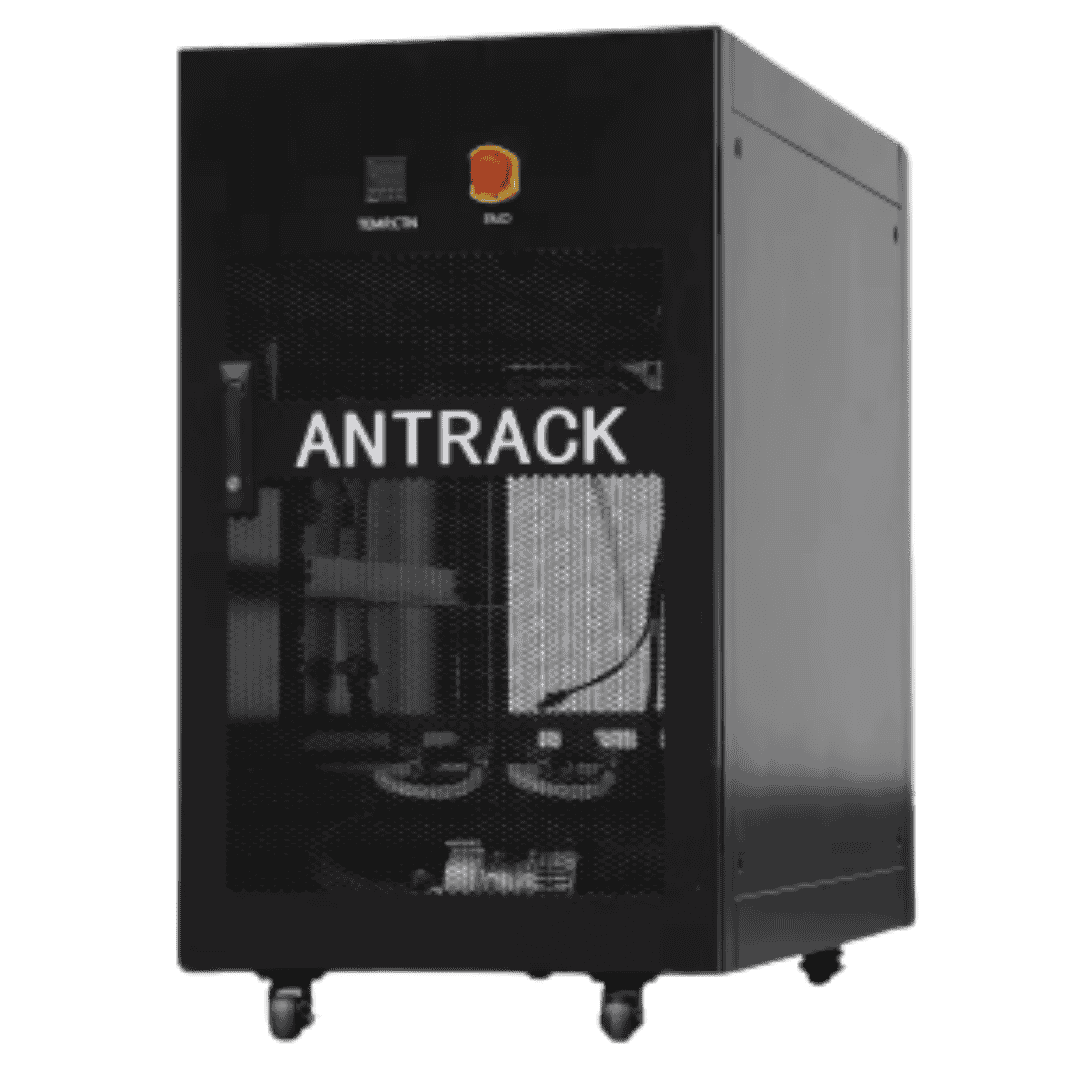

The cabinet side features a power control switch, heat exchanger, and components that provide a stable environment for hydro miners.

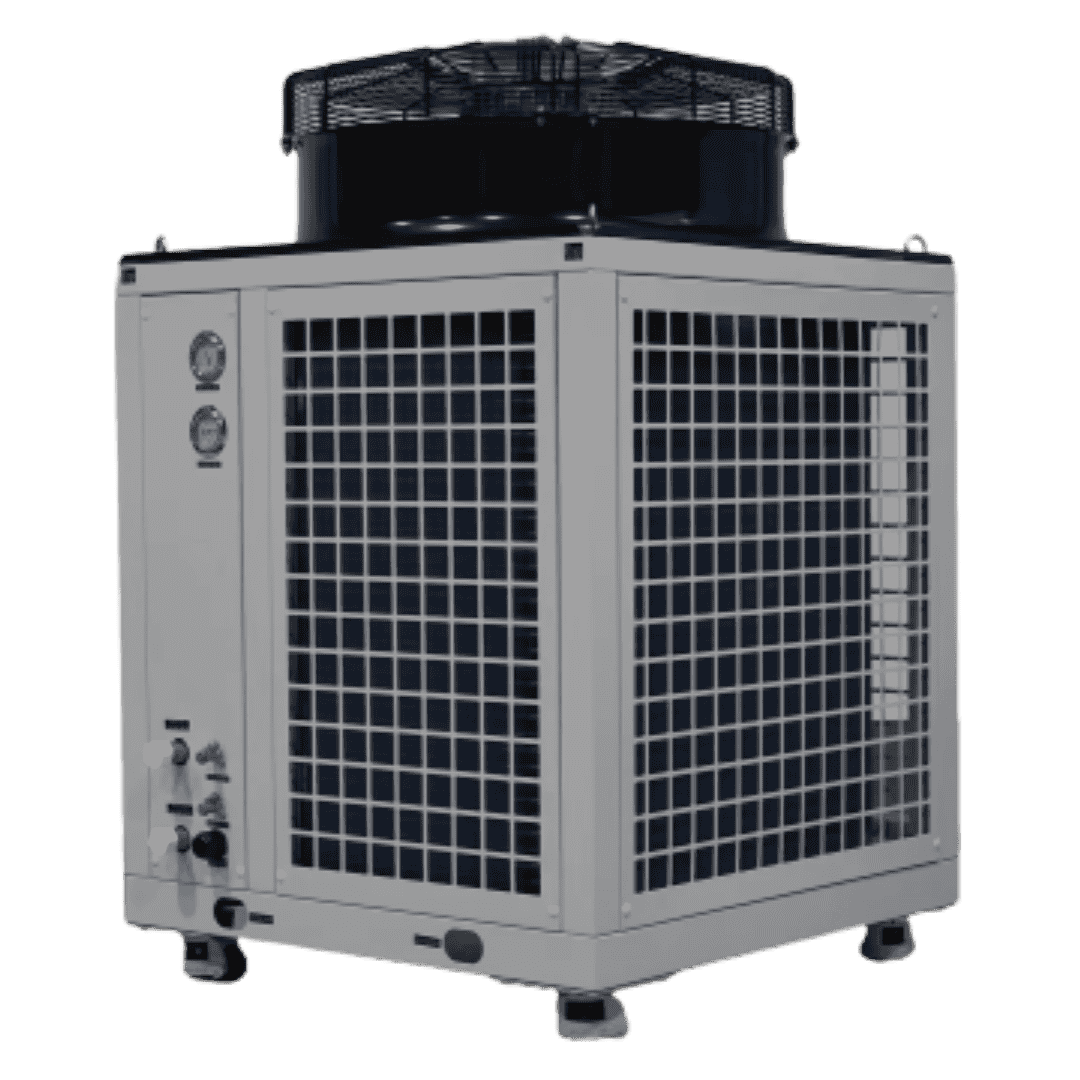

The heat pump side includes a compressor and dry cooler, ensuring efficient heat dissipation and stable year-round operation.
With a 24kW cooling capacity, 400W water pump power, and a split design, the ANTRACK V2 optimizes mining efficiency while maintaining ideal temperature control.
| Manufacturer | Bitmain |
|---|---|
| Model | Antrack |
| Version | V2 |
| Miners capacity | 4 units ANTMINER ( Hydro Miner) |
| Maximum load, kW | 24kW |
| Cabinet Side | |
| Overall Dimensions (LWH) | 1200 x 600 x 1080 mm |
| Overall Weight | 140kg |
| Water Pump Power | 400w |
| Noise | 60db |
| Miner Capacity | RACK483 *2 or AHM *4 |
| Power Supply | 6AWG (16mm²) |
| Input Voltage | 380-415v |
| Input frequency range | 50-60 |
| Input current, Amp(1-2) | 80 |
| Heat Pump Side | |
| Overall Dimensions (LWH) | 1020 x 1020 x 1450 mm |
| Overall Weight (kg) | 375 kg |
| Water Pump Power | 370w |
| Heating Power (Supply Side) | 32kw |
| Hot Water Outlet Temperature | 80°C |
| Fan Dimensions (LWH) | 1010 x 1010 x 369 mm |
| Liquid PH | 7.8~8.5 |
| Humidity | 10~90% |
| Warranty | 365 Days |
