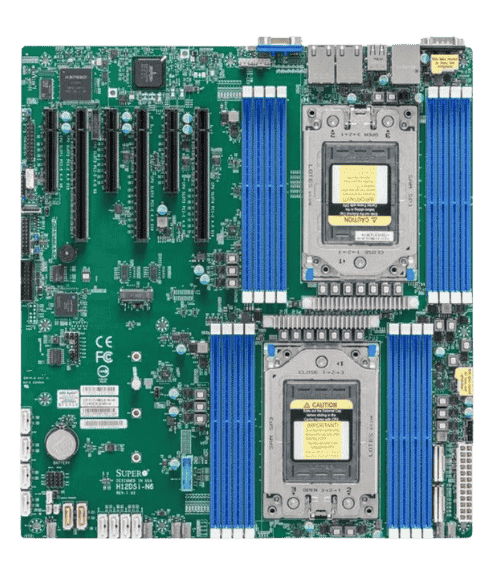

Supermicro MBD-H12DSI-NT6-B Workstation Motherboard

Key Features

1. Dual AMD EPYC 7003/7002 Series Processors

2. 4TB Registered ECC DDR4 3200MHz SDRAM in 16 DIMMs

3. Expansion slots:

3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots

M.2 Interface: 1 PCI-E 4.0 x4

M.2 Form Factor: 2280, 22110

M.2 Key: M-key

4. 10 SATA3, 2 SATADOM, 4 NVMe

5. Dual 10GBase-T LAN ports,

1 dedicated IPMI LAN Port

6. ASPEED AST2600 BMC graphics

7. 2 USB 2.0 ports (rear),

4 USB 3.0 ports (2 rear, 2 headers)

8. 8x 4-pin PWM Fans & Speed control
