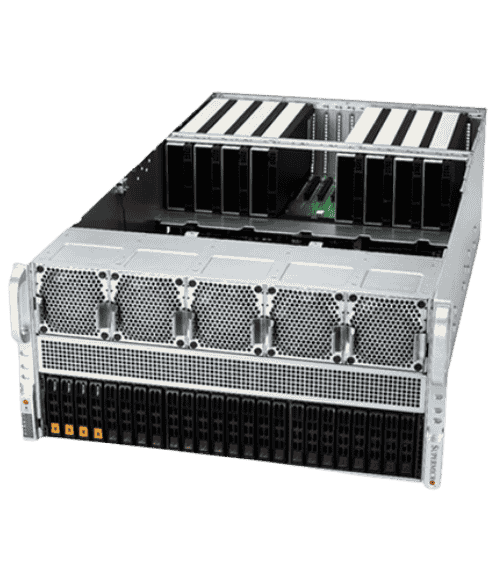

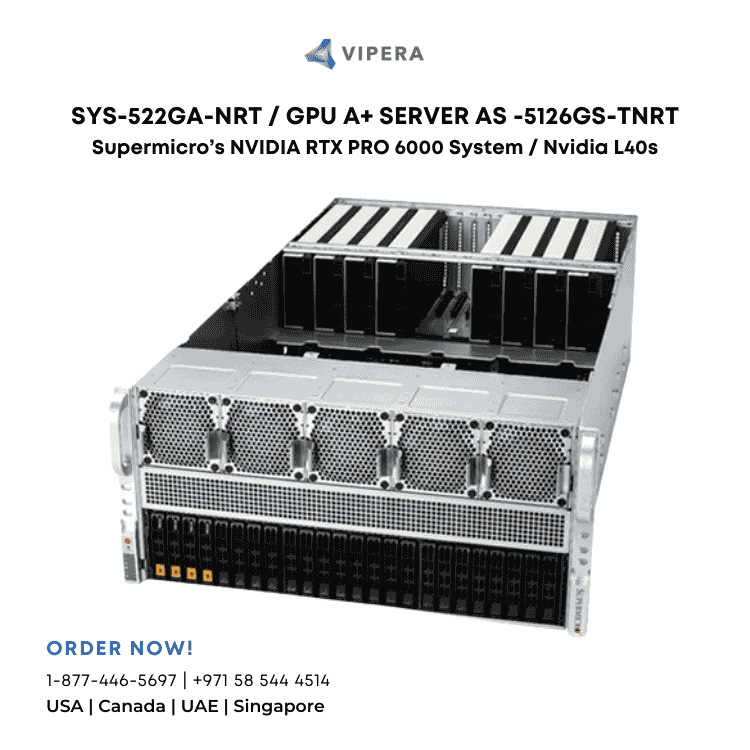

The Supermicro SYS-522GA-NRT / AS -5126GS-TNRT are 5U GPU servers optimized for AI, HPC, and graphics-intensive workloads. Supporting up to 8x NVIDIA RTX Pro 6000 Blackwell Server Edition GPUs or Nvidia L40s and dual Intel Xeon or AMD EPYC CPUs, it delivers high compute density, PCIe Gen5 bandwidth, and memory capacity up to 6TB. With robust I/O and dual-root architecture, it’s built for scalable, high-performance deployments
| Component | Details |
|---|---|
| Form Factor | SYS-522GA-NRT / AS-5126GS-TNRT |
| Chassis Type | 5U Rackmount |
| Measurements | H 8.75" × W 17.2" × D 29" |
| Gross Weight | 100 lbs (45.3 kg) |
| Component | Details |
|---|---|
| GPU Count | 8× onboard GPUs |
| GPU Model | NVIDIA RTX PRO 6000 Blackwell – Server Edition / Nvidia L40s |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch |
| GPU-GPU Interconnect | NVIDIA NVLink Bridge (optional) |
| Option | CPU Model | Max Cores/Threads | Cache |
|---|---|---|---|
| Intel Configuration | 2× Intel Xeon 6900 Series (P-cores) | Up to 128C / 256T | Up to 504MB per CPU |
| AMD Configuration | 2× AMD EPYC 9005/9004 Series | Up to 192C / 384T | — |
| Component | Details |
|---|---|
| DIMM Slots | 32 total |
| Installed Memory | 32× 64GB DDR5-4800 RDIMM (MEM-DR564MC-ER48) |
| Type | DDR5-4800, 2Rx4, 16Gb RDIMM |
| Component | Details |
|---|---|
| Drive Bays | 24 slots total |
| Standard Storage | 8× 3.8TB SSD, 2.5" NVMe PCIe 4.0, 1DWPD TLC, 15mm |
| Coverage Type | Details |
|---|---|
| Standard Warranty | 3-Year Labour, 3-Year Parts, 1-Year Advanced Cross-Ship |
| Optional Service | 3-Year On-Site NBD Service (additional cost) |
