CPU:Single Socket E2 (LGA-4710); Intel® Xeon® 6700/6500 Series with P-cores or E-cores
Core Count:P-cores: Up to 86C/172T (336MB Cache); E-cores: Up to 144C/144T (108MB Cache)
TDP Support:Up to 350W TDP CPUs (Air Cooled)
Memory Slots:16 DIMM slots
Max Memory (1DPC):Up to 2TB DDR5 6400MT/s ECC RDIMM or up to 512GB DDR5 8000MT/s MRDIMM
Max Memory (2DPC):Up to 4TB DDR5 5200MT/s ECC RDIMM
Memory Voltage:1.1V
Max GPU Count:Up to 4 double-width or 8 single-width GPUs
Supported GPU:NVIDIA PCIe: L40S, L4
CPU-GPU Interconnect:PCIe 5.0 x16
Drive Bays:Default: 8x 2.5" NVMe/SAS/SATA (hot-swap); Option A: 16x; Option B: 24x front hot-swap 2.5"
M.2:2x M.2 PCIe 5.0 NVMe slots (M-key 2280/22110/25110; VROC required for RAID)
Expansion Slots: Multiple PCIe 5.0 slot configurations available:
• Up to 4x PCIe 5.0 x16 FHFL (double-width)
• Up to 2x PCIe 5.0 x8 FHFL
• 1x PCIe 5.0 x16 AIOM (OCP 3.0 compatible)
LAN:1x RJ45 1GbE dedicated BMC port
USB:2x USB 3.0 (rear)
Video:1x VGA port
Power Supply Options: • 2x 1200W Redundant Titanium (96%)
• 2x 1300W Redundant Gold
• 2x 1600W Redundant Titanium
• 2x 2000W Redundant Titanium

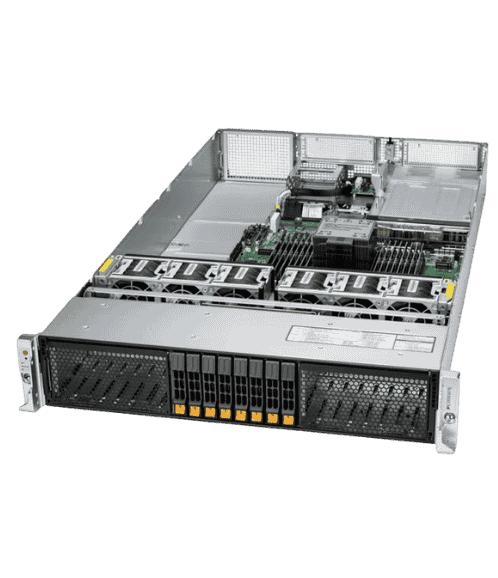

Form Factor:2U Rackmount
Chassis Model:CSE-219UAC-R2K23LP
Dimensions:3.5" (H) x 17.2" (W) x 31.8" (D)
Weight:~68 lbs (30.8 kg)
Cooling:6x heavy-duty 80mm fans, optimized for GPU airflow
Management: IPMI 2.0 with Redfish, KVM over LAN, Supermicro Server Manager (SSM), SuperCloud Composer
TPM:TPM 2.0 header onboard (module optional)
Operating Temperature:10°C to 35°C (50°F to 95°F)
Non-Operating Temperature:-40°C to 60°C (-40°F to 140°F)
Operating Humidity:8% to 90% (non-condensing)
Non-Operating Humidity:5% to 95% (non-condensing)
