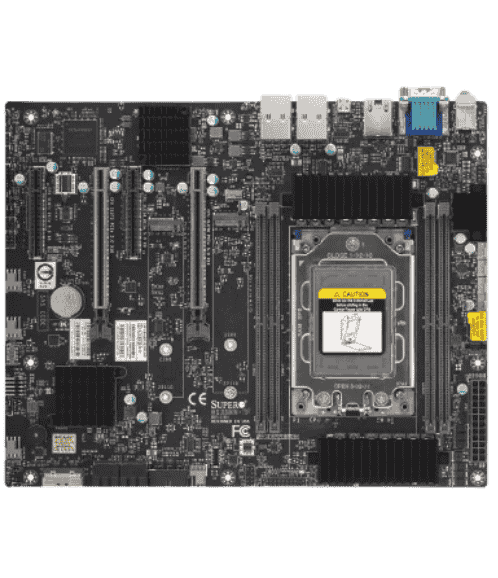

Supermicro MBD-H13SRA-F-B Socket sTR5 ATX Motherboard

AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors

Single socket sTR5, LGA-4844, Up to 350W TDP, Overclocking supported

AMD TRX50

Up to 1TB of memory with speeds of 6400+MT/s (1DPC) with overclocking support

M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor: 2280/22110M.2 Key: M-Socket

2 PCIe 5.0 x16, support 2 triple/dual/single-width GPU cards2 PCIe 5.0 x8, open rear

Dual 1Gb LAN with Broadcom BCM5720

1 MCIO connector (PCIe Gen4 x8) to support 2 U.2 ports via cable for NVMe 2.5" SSD drives (RAID 0,1)

1 Dedicated LAN for IPMI

Overclocking supported on CPU and RDIMM
