1: 20 HQ container with snow baffle and escape door, CSC certificate
2: 2 sets of shelves (2550W*2280H*360Smm)
3: 1 power cabinet (750*550*2200; 1200A/3P) CSA certification
4: 2000-240/346-415VAC,50/60Hz,63A; The CSA certifies PDU12
5: Negative pressure fan 1000*400mm10 sets of UL certified power supply
6: Water curtain 2490 high *1058 wide *100 thick *4 + air filter 12 pieces
7: PDU power cables, fan power cables, lighting sockets with ul certification
8: Delivery of external closed packaging
9: North American standard
10: 2 year replacement parts warranty included
Lead time is 30 days for production plus ocean freight transit. Shipping cost will be calculated separately and can range between $4,000 – $12,000 for door-to-door service. On-site ramp required by customer to remove from flatbed into place. All sales final. No returns or cancellations. For bulk inquiries, consult a live chat agent or call our toll-free number.

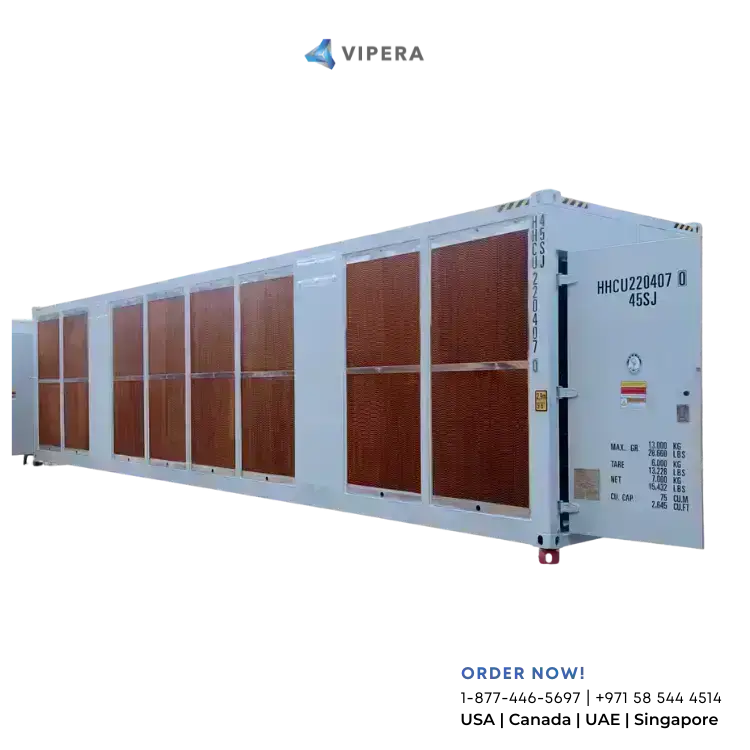

The Configuration List of US Standard Container Mining Container
-20ft(20GP Or HQ)Box Size20GP installed capacity 144 units (6058*2438*2591mm) with built-in welded shelves
Sea container with classification society certificate, can be transported by sea, rail or land according to SOC sea container standards. Weight 4-5 tons20HQ installed capacity 168 units (6058*2438*2591mm) with built-in welded shelves
Sea container with classification society certificate, can be transported by sea, rail or land according to SOC sea container standards.
Weight: 4-5 tons
(Sea freight for this type of container is slightly more expensive)Power cabinetOne pcs 1200A/UL CSA certified version,
Total power 691.2KW, 144 miner machines, theoretically supports 4.5KW for each machine. All electrical components are UL certified. This power cabinet solution does not support S21PRO and T21 models due to the size of the two power cabinets, but can be used with slight overclocking.One 1200A/UL.CSA certified version,
Total power 691.2KW, 168 miner machines, One single miner theoretically supports 4KW. All electrical components are UL certified. This power cabinet solution does not support S21PRO and T21 models due to the size of the two power cabinets, and cannot be used for overclocking.PDU ConfigurationUL&CSA Certificated 1 slot 1 control 1*C13+12*C19
14+1 spare, a total of 15 strips
Single socket maximum current 20A, continuous current 16A, single socket theoretical maximum power 3840W (240V), due to voltage load instability, it is recommended that machines within 3500W use this PDU,
Specific matching power cabinet solution is required. Supported models S19. Due to the size of the container, S21PRO and T21 are not supported
This PDU does not support three-phase models
This PDU carefully considers S21, which may cause the PDU failure rate to increaseUL&CSA Certificated 1 slot 1 control 1*C13+12*L6-30
14+1 spare 15 strips in total
Single socket maximum current 30A, continuous current 24A, single socket theoretical maximum power 5760W (240V), due to voltage load instability, it is recommended to use this PDU for machines within 5200W, Specific matching power cabinet solution is required.
Supported models S19, S21,
Due to the size limit of the container, S21PRO and T21 are not supported
This PDU does not support three-phase modelsNetwork ConfigurationUL certified switch (CLASS2 low voltage power supply)

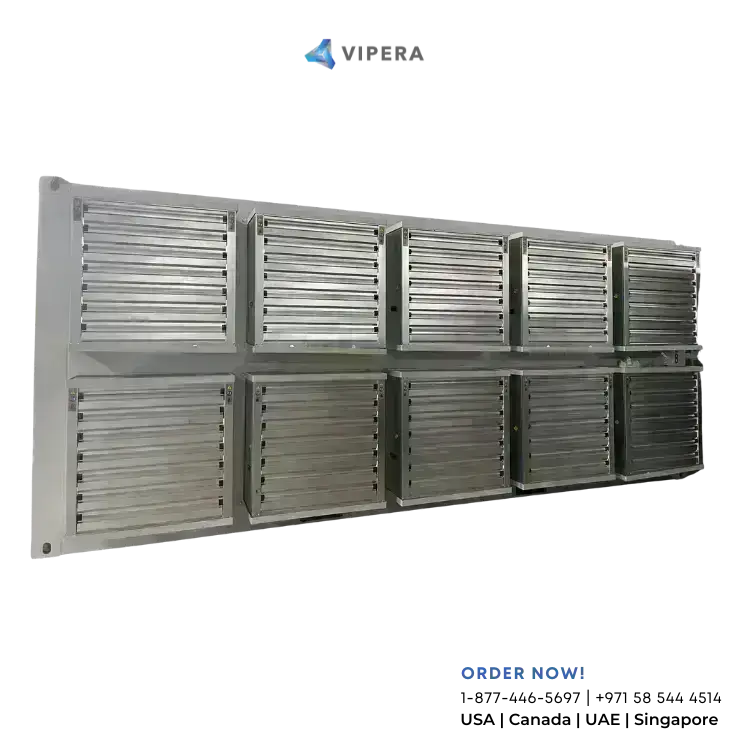

Network cable is provided as standard to each station, with one spare cable per rowHot air areaUL Certified Exhaust Fan 1200*1200*400mm
8 units + 1 spare, total 9 units
Theoretical exhaust volume 36000m³/hourAluminum alloy shutters (for extremely cold areas)Air IntakeConfiguration 1: Water curtain (suitable for areas with higher temperatures throughout the year)Configuration 2: Air Awning (suitable for areas with low temperature and heavy snow throughout the year)CablesPower cabinet to PDU cable 4*4AWG+1*6AWG
Fan cable 4*14AWG, lighting and spare socket cable, all cables are UL certifiedOptional itemsHot and cold isolation panelsSnow and rain shieldInternal top insulationDust filterCSA full container labeling (MOQ 6pcs)PDU transfer mining machine power lines 170Intelligent Function PDUMonitoring systemFan master control frequency conversionGround static floorExternal LOGOOther requirements
