AI Hardware, Servers

Instock

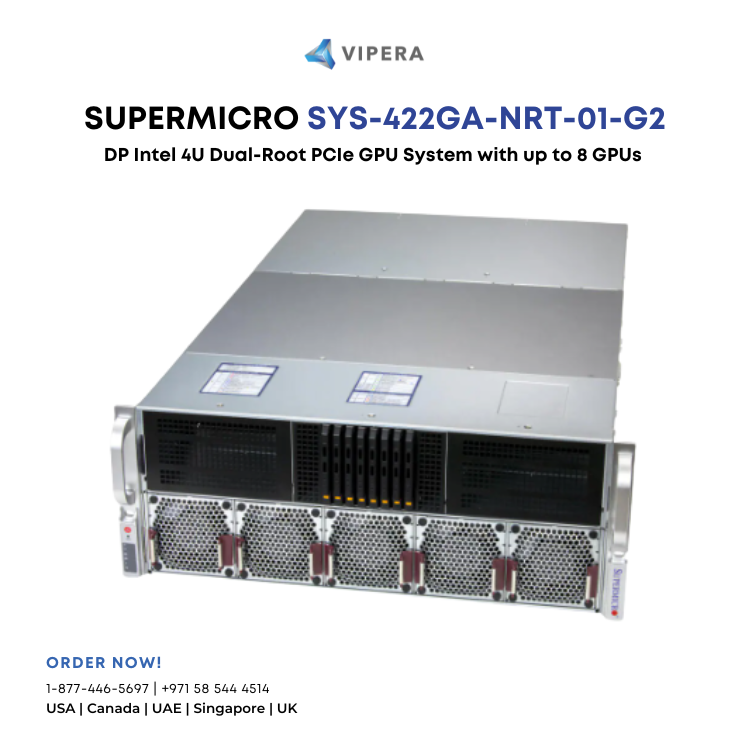

Supermicro SYS-422GA-NRT-01-G2 4U GPU SuperServer

SKU:SYS-422GA-NRT-01-G2

0.0 out of 5 (0)

Key Features

Dual Socket BR (LGA-7529) Intel Xeon 6900 series processors with P-cores up to 500W with air cooling
Support up to 8 double-width 600W PCIe GPU accelerator cards at 35ºC
Support 8 NVIDIA RTX PRO 6000 Blackwell Server Edition+ 5 NVIDIA BlueField-3 at 35ºC
Up to 24 DIMMs supporting up to 6TB DDR5-6400 in 1DPC or 6TB DDR5-8800 in 1DPC
Flexible networking with up to AIOM slots
Up to 13 PCIe 5.0 x16 FHFL slots

About It

Key Applications

High Performance Computing
VDIAI/Deep Learning Training
Media/Video Streaming
Cloud Gaming
Animation and Modeling
Design & Visualization
3D Rendering
Diagnostic Imaging

Get this product for

$806,158.5

Will be delivered to your location via DHL or UPS. Ask an agent if import tariffs apply.

DescriptionSpecificationsDownloadReviews ( 0 )

Description

GPU SuperServer Powered By Two Intel Xeon 6960P Processors

4U Rackmount SuperServer, Supports Dual Socket BR (LGA-7529) For Intel Xeon 6900 Series Processors With P-cores, Up To 128C/256T, Up To 504MB Cache Per CPU. Supports Up To 500W TDP CPUs (Air Cooled). Max GPU Count: Up To 2 Quad-width, 2 Triple-width, or 8 Double-width, or 10 Single-width GPUs. 24 DIMM Slots Supporting Up To 6TB DDR5-6400 In 1DPC Or 6TB DDR5-8800 In 1DPC.

Manufacturer : Server

Main Specifications
Device Type	GPU SuperServer
Built-in Devices	Super X14DBG-AP
Form Factor	4U Rackmount - CSE-418G3TS-R6K40P
Dimensions (WxDxH)	Height 7" (178 mm) x Width 17.2" (437 mm) x Depth 29" (737 mm)
Weight	Gross Weight: 100 lbs (45.3 kg) - Net Weight: 65.5 lbs (29.7 kg)
Enclosure Color	Black Front & Silver Body
Processor
Processor Installed	Two Intel Xeon Scalable 6960P Processor (Installed) With 72-Core/144 Thread (2.70GHz)
GPU
GPU Installed	4x NVIDIA RTx PRO 6000 Server Edition
System Memory
Memory Installed	16x 64GB DDR5 6400MHz
Drive Bays
Hard Drive Installed	2x 3.84TB U.2 NVMe Solid-state Drive (SSD), 1x 960GB NVMe M.2 Solid-state Drive (SSD)
On-Board Devices
Network Card Installed	1x Dual 10GbE RJ45
Chipset	System on Chip
Power Supply
Power Supply	4x 3200W Redundant (3 + 1) Titanium Level (96%) power supplies
Input / Output
USB(s)	2 USB 3.0 Type-A ports(Rear)
Video Output	1 VGA port
TPM	1 TPM Header
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown
PC Health Monitoring
CPU	8+4 Phase-switching voltage regulator, Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control
Temperature	Monitoring for CPU and chassis environment, Thermal Control for fan connectors
Expansion / Connectivity
Expansion Slots Total (Free)	13 PCIe 5.0 x16 FHFL slots
	2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)
Drive Bays / Storage
Drive Bays Configuration	2 M.2 NVMe slots (M-key)
	Option A: 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays
	Option B: 8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays
	Option C: 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
System Cooling
Fans/Air Shroud	1 Air Shroud
	10x 8cm heavy duty fans with optimal fan speed control
Environmental
Operating Environment	Operating Relative Humidity: 8% to 90% (non-condensing)
	Non-operating Relative Humidity: 5% to 95% (non-condensing)
	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Temperature: 10°C to 35°C (50°F to 95°F)
