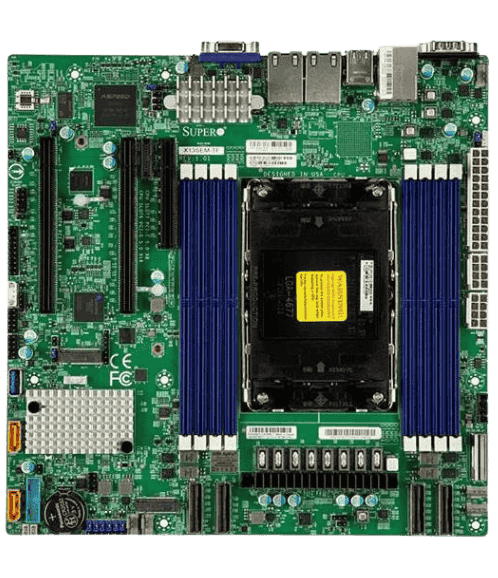

Motherboard Micro-ATX Single Socket LGA-4677 5th / 4th Generation Intel Xeon Scalable Processors, Supports Up to 2TB DDR5-5600MHz RDIMM in 8 DIMM slots - On-Board: Intel C741 Controller for 10 SATA3 (6 Gbps) Ports, RAID 0,1,5,10, LAN ports: Dual LAN with 10GBase-T, 1 RJ45 Dedicated IPMI LAN port, Includes 2 PCIe 5.0 x16, 1 PCIe 5.0 x8, 4 PCIe 5.0 x8 MCIO Connector, M.2 Interface: 2 PCIe 4.0 x2, Form Factor: 2280/22110, Key: M-Key - (MBD-X13SEM-TF-B)
Verified reviews from real customers on Trustpilot
1. 5th/4th Gen Intel Xeon Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
2. Intel C741 Chipset
3. Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) in 8 DIMM slots
4. 8 NVMe ports PCIe 5.0 x4 via 4 MCIO connectors
5. 1 PCIe 5.0 x8, 2 PCIe 5.0 x16, 4 PCIe 5.0 x8 MCIO connectors M.2 Interface: 2 PCIe 4.0 x2 M.2 Form Factor: 2280, 22110 M.2 Key: M-Key
6. Dual LAN with 10GBase-T with Intel® X550
7. 5 USB 3.2 Gen1 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
8. Intel® C741 controller for 10 SATA3 (6 Gbps) ports or 2 PCIe 3.0 x4 NVMe + 2 SATA3 ports; RAID (SATA) 0,1,5,10
| Main Specifications | ||
| Device Type | Motherboard | |
| Form Factor | microATX | |
| Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) | |
| Processor | ||
| Compatible Processors | 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors | |
| Compatible Socket | Single Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP | |
| Number of Cores | Up to 64 Cores | |
| System Memory | ||
| Memory Capacity | 8 DIMM slots, Up to 2TB 3DS ECC RDIMM, DDR5-5600MT/s, 24GB & 48GB DIMM only support 1 DPC. 24GB/48GB/96GB DDR5 DIMMs with 24Gb chip are only supported by 5th and 4th XCC Gen Intel® Xeon-SP CPU. | |
| Memory Type | 5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) | |
| DIMM Sizes | 16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB | |
| Memory Voltage | 1.1V | |
| Error Detection | Corrects single-bit errors | |
| On-Board Devices | ||
| Chipset | Intel C741 | |
| SATA RAID | Intel C741 controller for 10 SATA3 (6 Gbps) ports, RAID 0,1,5,10 | |
| IPMI | ASPEED AST2600 BMC | |
| Graphics | 1 Aspeed AST2600 BMC port(s) | |
| Network Controllers | Dual LAN with 10GBase-T with Intel X550 | |
| TPM | 1 TPM Header | |
| Input / Output | ||
| SATA | 10 SATA3 (6Gbps) port(s) | |
| LAN | 2 RJ45 10 Gigabit Ethernet LAN ports, 1 RJ45 Dedicated IPMI LAN port | |
| USB(s) | 6 USB 2.0 port(s) (4 via header, 2 rear), 5 USB 3.2 Gen1 port(s) (2 via header, 2 rear, 1 type A) | |
| Video Output | 1 VGA D-Sub Connector port(s) | |
| Serial Port / Headers | 1 COM Port(s) (1 rear) | |
| DOM | 2 SATA DOM (Disk on Module) power connector support | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16, 1 PCIe 5.0 x8, 4 PCIe 5.0 x8 MCIO connector | |
| M.2 | Key: M-key | |
| Form Factor: 2280/22110 | ||
| M.2 Interface: 2 PCIe 4.0 x2 | ||
| System BIOS | ||
| BIOS Type | AMI UEFI | |
| BIOS Features | ACPI 6.4, SMBIOS 3.5, UEFI 2.8 or above | |
| Management | ||
| Software | SuperCloud Composer®, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0 | |
| PC Health Monitoring | ||
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V | |
| LED | UID/Remote UID, CPU / System Overheat LED | |
| Temperature | Monitoring for CPU and chassis environment, CPU thermal trip support, Thermal Monitor 2 (TM2) support, PECI | |
| FAN | 5x 4-pin fan headers (up to 5 fans), Fan speed control, 5 fans with tachometer status monitoring, Overheat LED indication | |
| Other Features | WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management | |
| Parts List | ||
| CPU carrier | 1x SKT-1424L-001B-FXC, 1x SKT-1333L-0000-FXC | |
| I/O Shield | 1x MCP-260-00042-0N | |
| I/O Cables | 2x CBL-0044L | |
